Winding the Media onto the Take-up Unit
VI.2

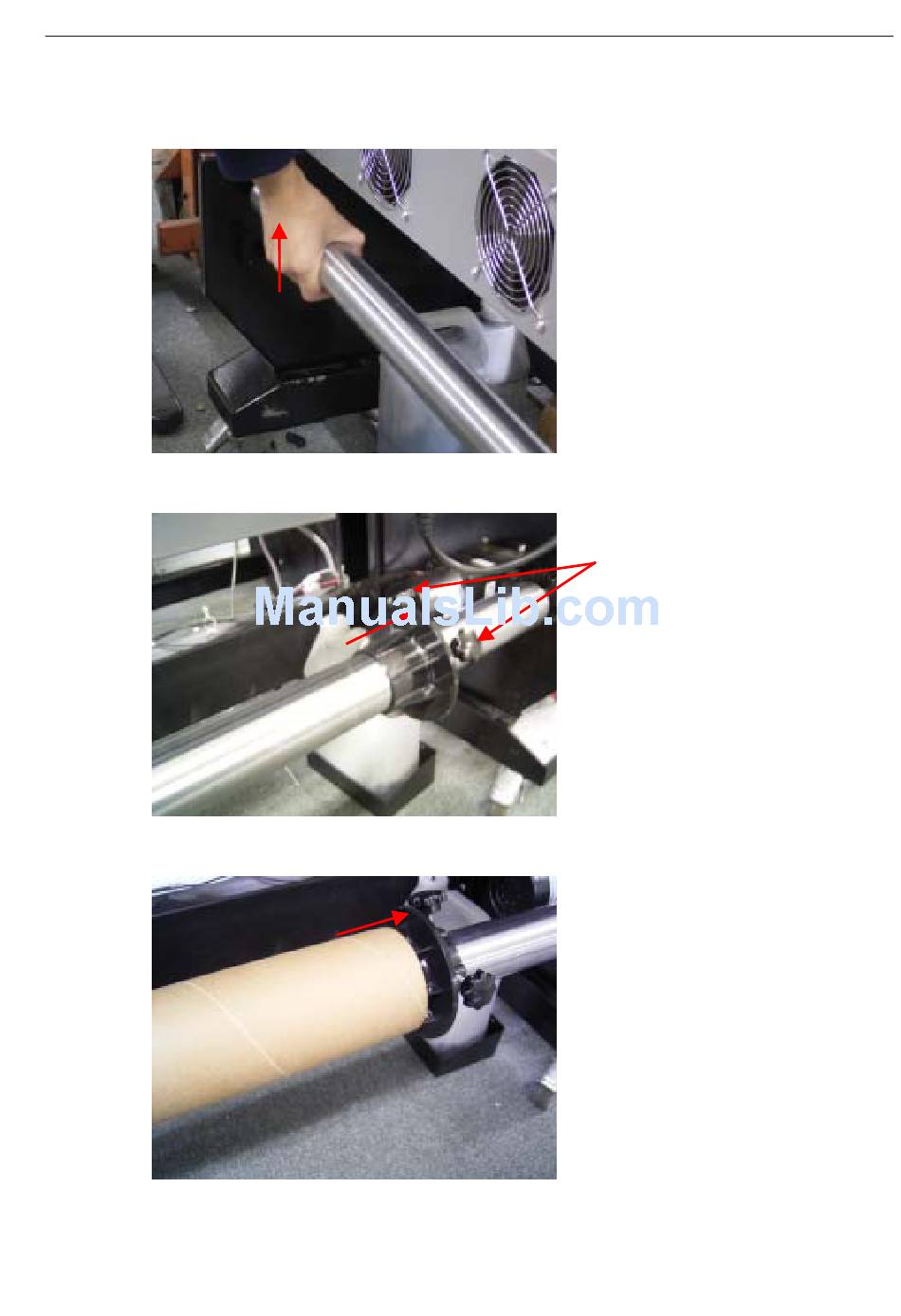

VI.2.1 Mount the take-up core flanges and the take-up core.
(1) Raise the take-up roller at the left-hand side and remove it.
(2) Slide one of the flanges onto the roller and then fasten it in place at the right.
(3) Insert the take-up core onto the right flange.
(4) Insert the other flange into the left edge of the take-up core.
SignJet JS310 Series Set Up Guide
- 50 -
Use these two screws to
fasten the flange.
