6.3 Print head height Adjustment

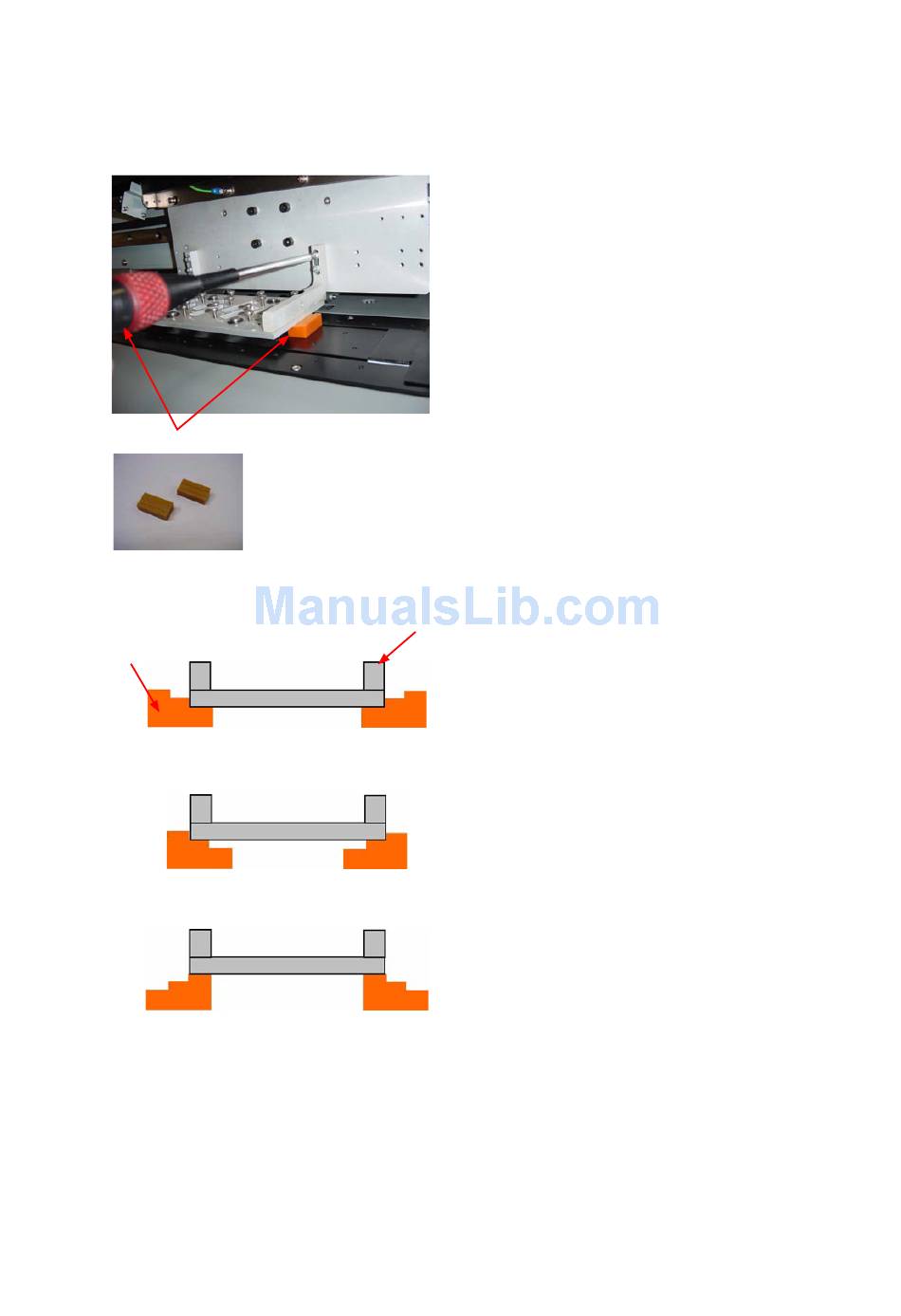

Adjust the print head height using the print head height adjustment jig.
(1) Loosen the screws holding the print head frame.
(2) Insert the print head height adjustment jig under the print head frame.
Head height adjustment Jig
(3) Adjust the print head height to the following position.
The height adjustment position
Jig
• When the head protector is not attached.
(Standard)
• When a print head rubs with the media.
• When the head protector is attached.
(4) Tighten the screws holding the print head frame.
JS310-UM-251-9370
Print head Frame
46
