GRAPHTEC SignJet JS310-25ES Service Manual page 69

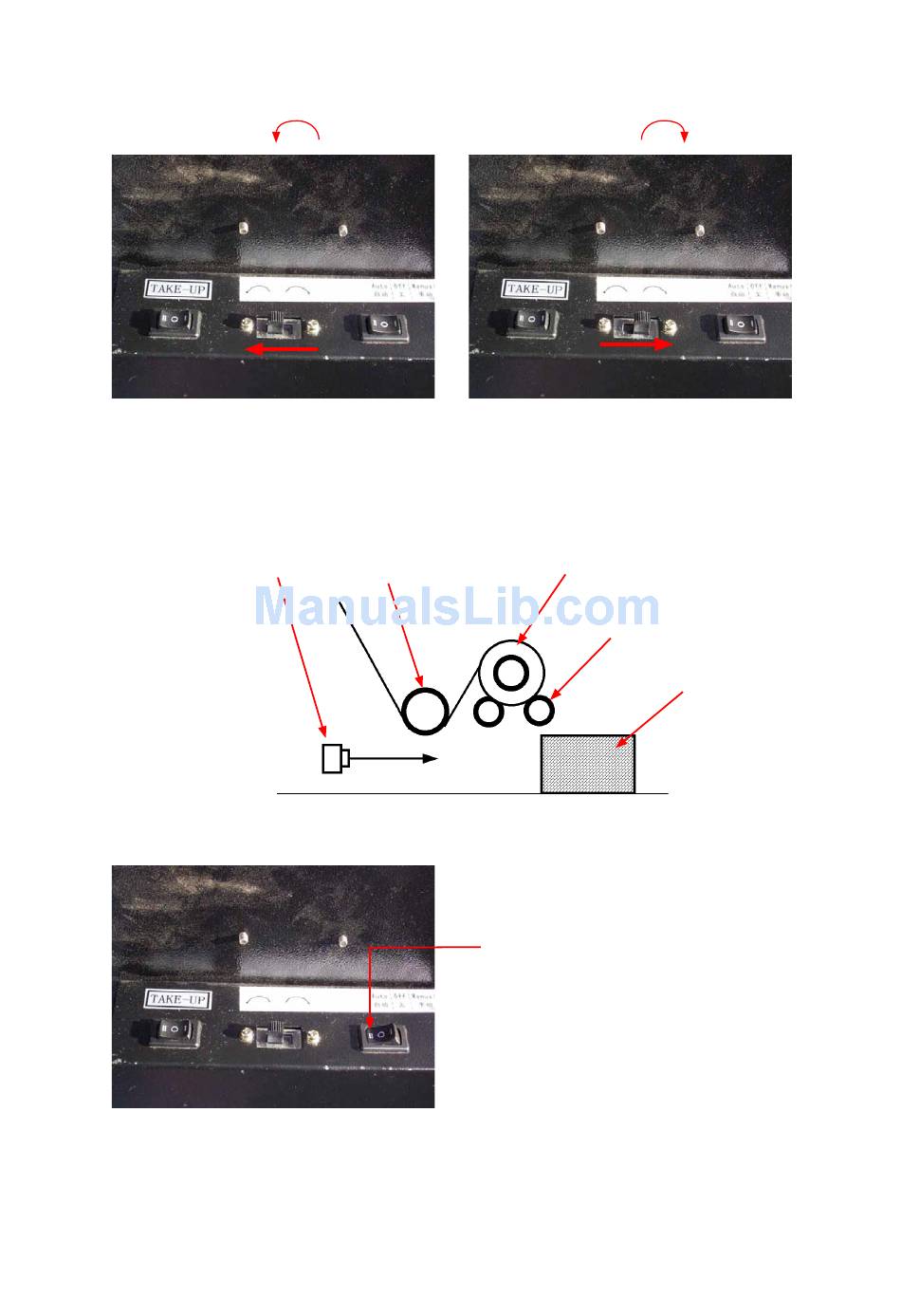

(5) Set the rotation direction switch on the media feeding system to the direction opposite to the direction set
earlier.
Inside wound media: [
(6) Rewind the media manually.
Set the selector switch on the media feeding system to the "I" (Manual) position, rewind the media to the
position where the orange LED does not light, and then return the selector switch to the position between the
"II" and "I" markings (the OFF position, "O").
(7) Check that the orange LED does not light even if an object is placed behind it.
Check that the orange
LED does not light
even if an object is
placed behind the
sensor.
(8) Check that the media stops at the sensor after it has been fed automatically.
Set the selector switch on the media feeding system to "II" (Auto).
JS310-UM-251-9370
] direction
Sensor
Empty core
Outside wound media: [
Media
Left-hand position
62
7. Media Loading Procedure
] direction
Feeding roller
Place an object here to
check the sensor.
