7. Media Loading Procedure

7.1 Loading the Media

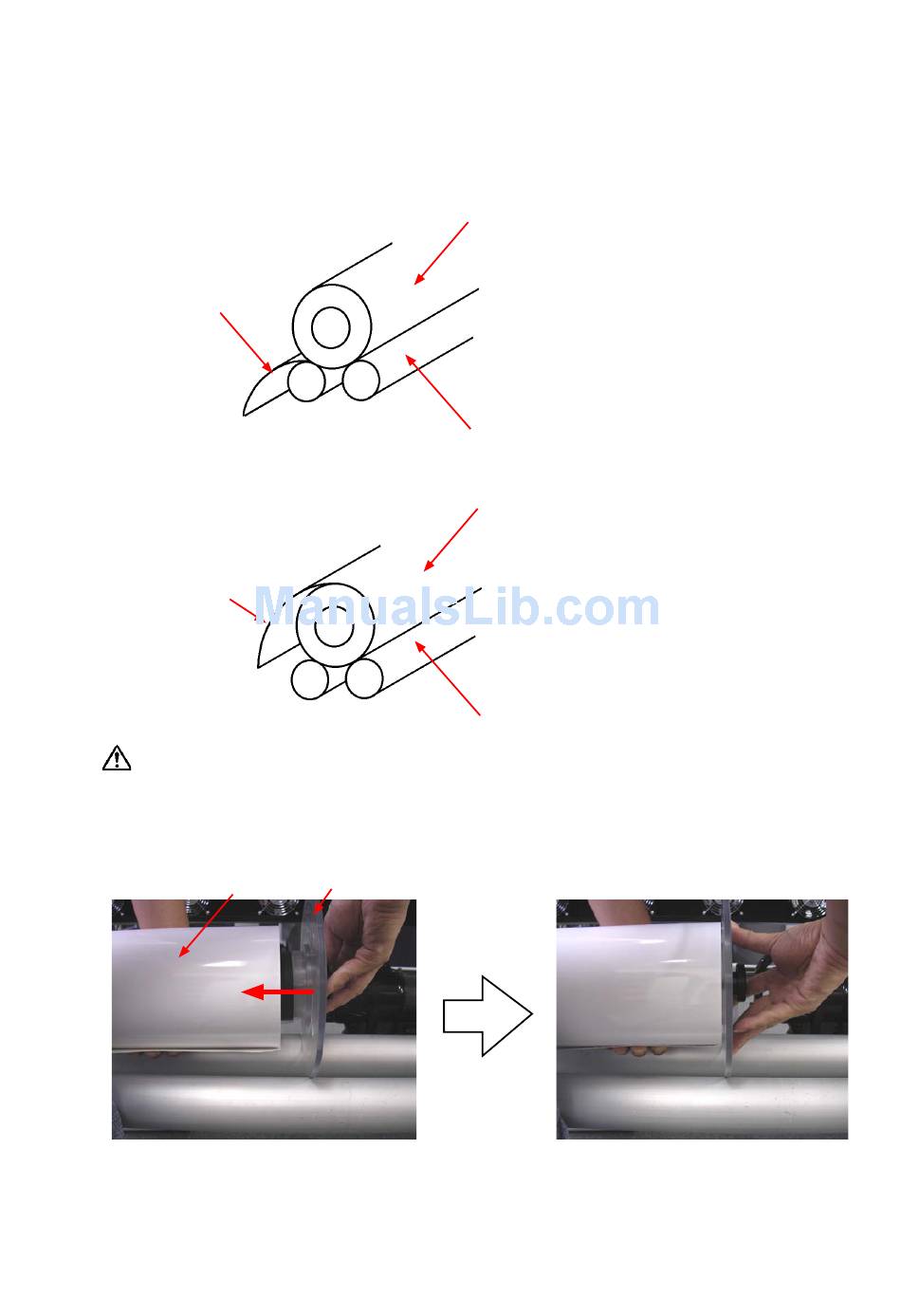

(1) Mount the media on the media feeding rollers as shown in the figure below.
• Inside wound
Print side: inside
• Outside wound
Print side: outside
CAUTION:
As the media is heavy, at least two persons are required for the loading operation.
Take care not to drop the roll. Dropping the roll on your foot may result in injury.
(2) Insert the media flange into a madia roll.
JS310-UM-251-9370
Media flange
Media
Media
Feeding roller
Media
Feeding roller
