6.4 Mounting the Print heads

• If the print head carriage is not at the cleaning position, move it to the cleaning position.
Moving the print head carriage to the cleaning position
(a) From the main menu, select [Cleaning Tool] and then press the ENTER key.
(b) From the submenu, select [Clean Post] and then press the ENTER key.
(1) Turn off the printer power supply.
Turn off the printer power supply before mounting the print heads.
• Performing the print head mounting operation while the power supply is on may result in damage to the
printer or to the print heads. Make sure that the power supply is turned off.
(2) Mount the print heads in order from the left-hand side.
Mount the print heads in the order shown below, starting from the left-hand side. The procedure described
below is the procedure for mounting one print head. Repeat the procedure of step from (3) to (10) for all eight
print heads.
S

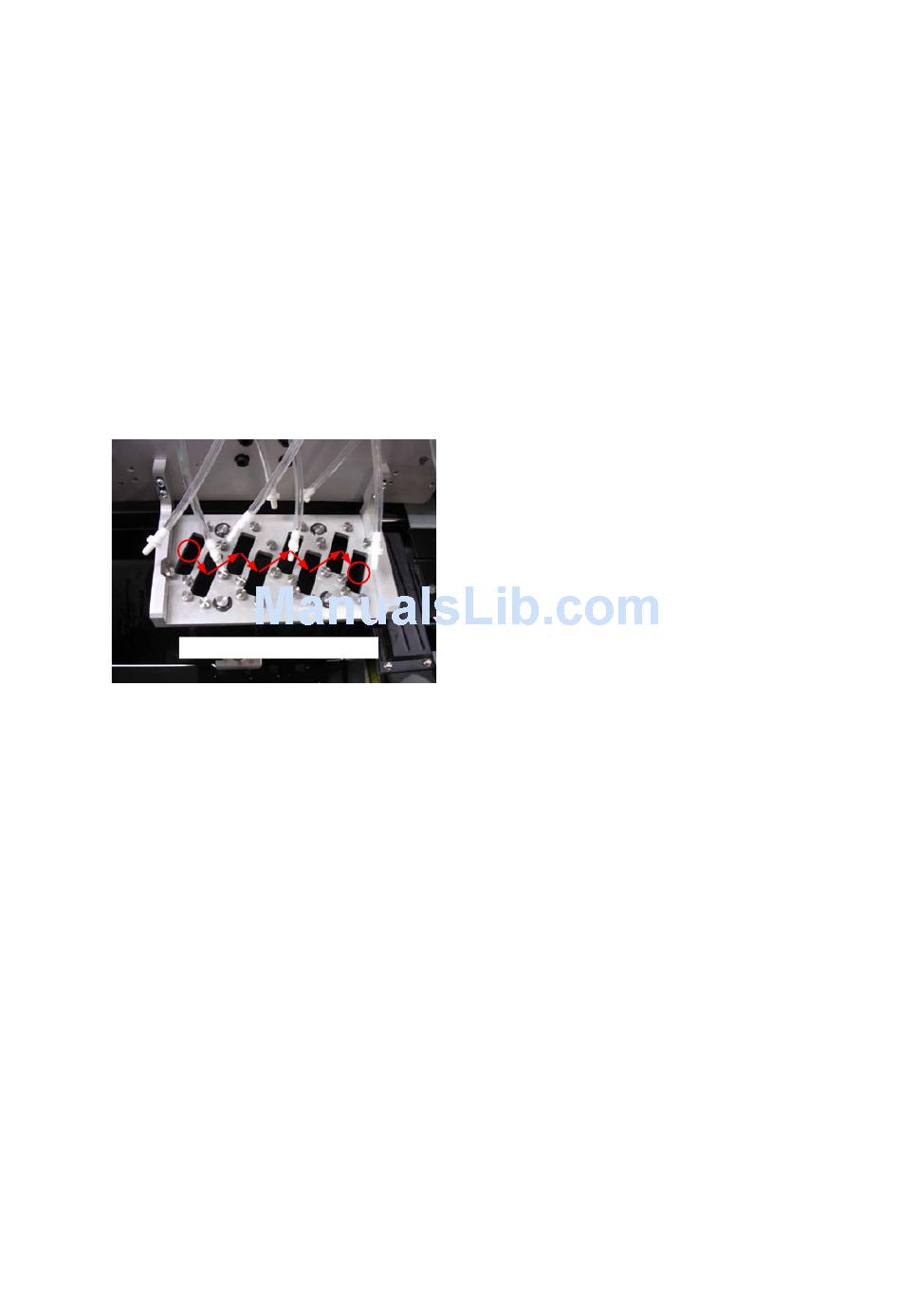

Print head mounting order
JS310-UM-251-9370
E
