GRAPHTEC SignJet JS310-25ES Service Manual page 89

8. Print Head Adjustment Procedures

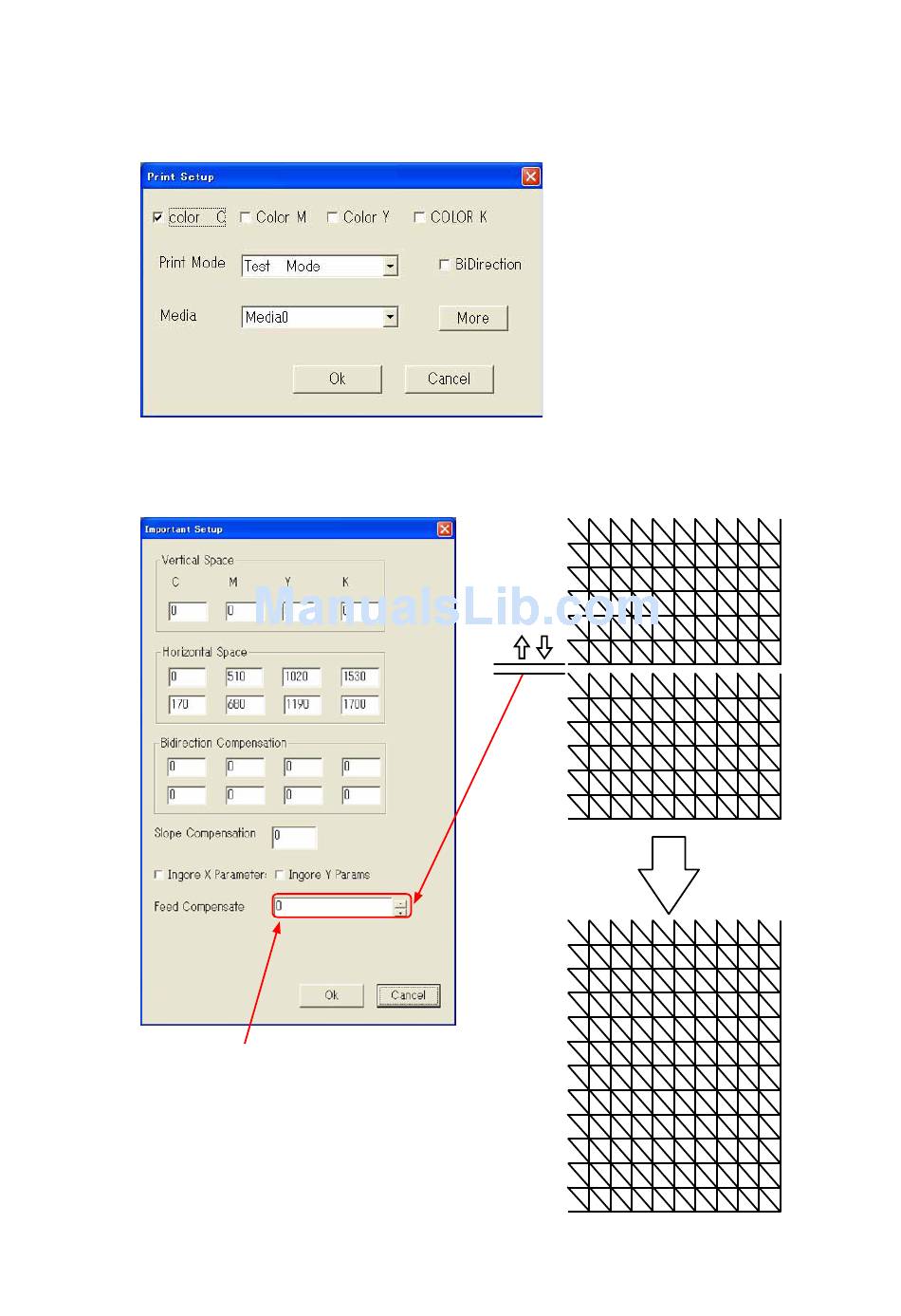

(4) Use the Try utility to adjust the spacing between each printed bands.
(a) Use the Try utility to make adjustments so that the vertical lines and the diagonal lines are connected as
straight lines.
(b) Click the "More" button from the Print Setup menu to display the Important Setup menu.
(c) The "Warning: Change these parameters carefully!" message is displayed. Click "Yes".
(d) Adjust the Feed Compensate of Important Setup menu to align the printed bands.
(e) Increase or decrease a value of Feed Compensate until each band is connected.
+ -
Adjust this value to connect each printed bands.
