5.3 Mounting the Ink Tanks

Follow the procedure described below to mount the four ink tanks (C, M, Y, K) and the solution tank.
(1) Remove the cap from the tip of each of the ink tubes protruding from the printer.

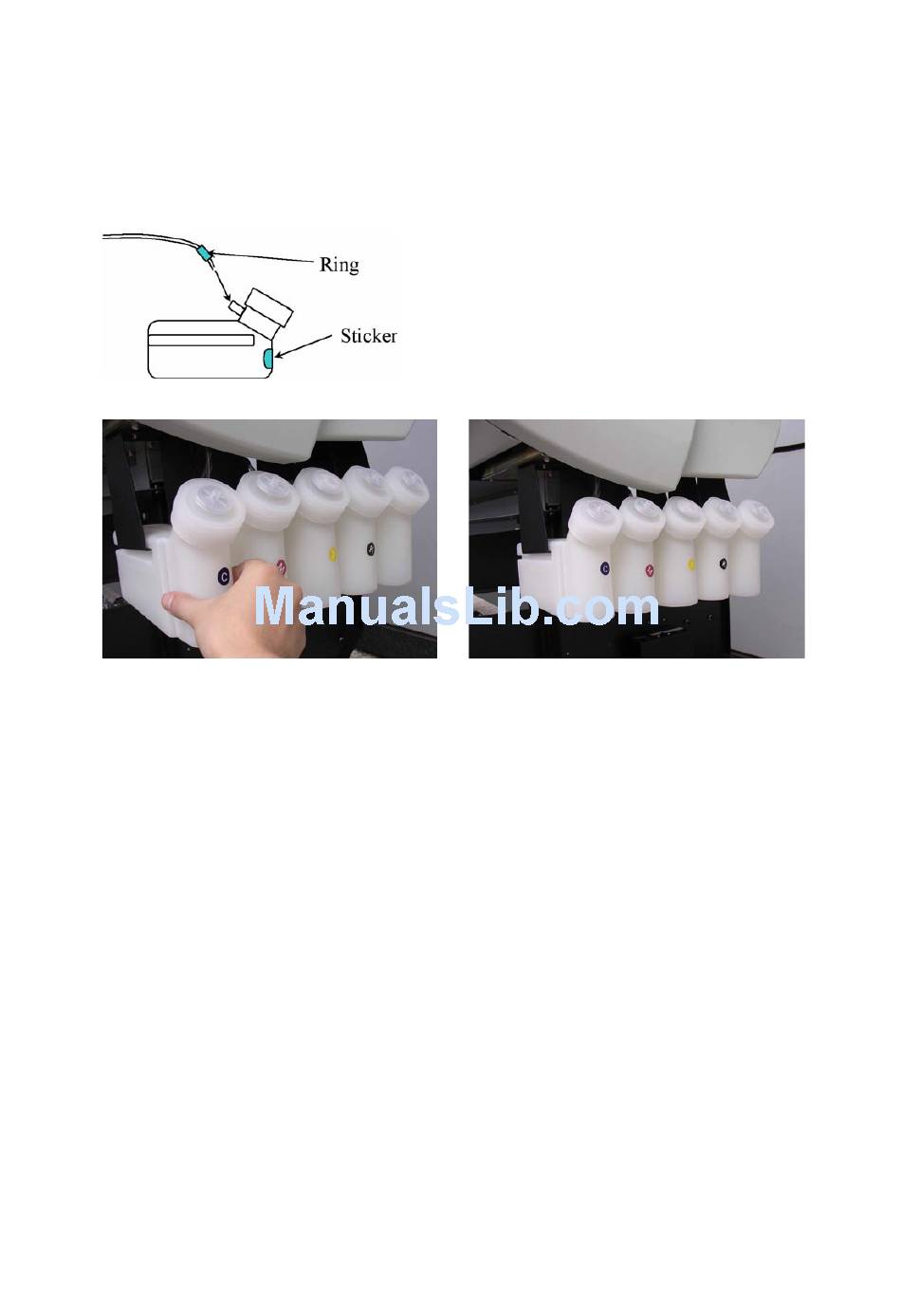

(2) Attach an ink tank to each of the tubes, making sure that the color of the sticker affixed to the ink tank matches
the color of the ring on the ink tube. The tube without a colored ring is the tube for the cleaning solution.
Attach the solution tank to this tube.
(3) Mount the ink tanks and the solution tank onto the printer.
