7. Media Loading Procedure

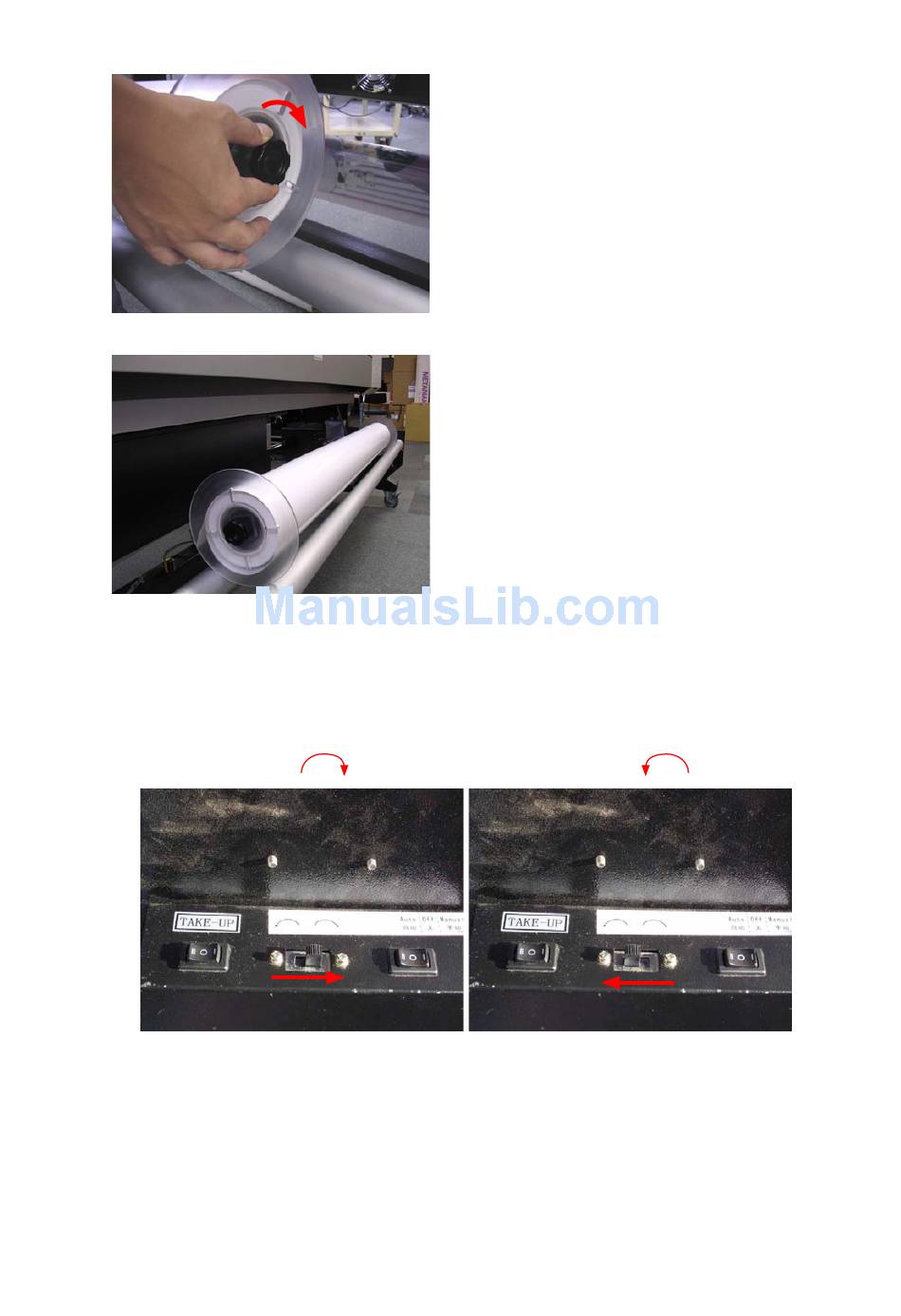

(3) Turn the knob to the red arrow direction to fix the media flange firmly.
(4) Insert the media flange to the other side of media roll likewise.
Note: Don't use the media flanges when the media may be bended beneath the burden of its weight.
May be wrinkled up the media by the heavy roll media.
(5) Feed the media a distance of approximately 1 m.
Use the following procedure to feed the media a distance of approximately 1 m.
(a) Set the rotation direction switch on the media feeding system.
Inside wound media: [ ] direction Outside wound media: [ ] direction
JS310-UM-251-9370 58
