8.3 Connecting the Print Heads

(1) Turn off the printer power supply.

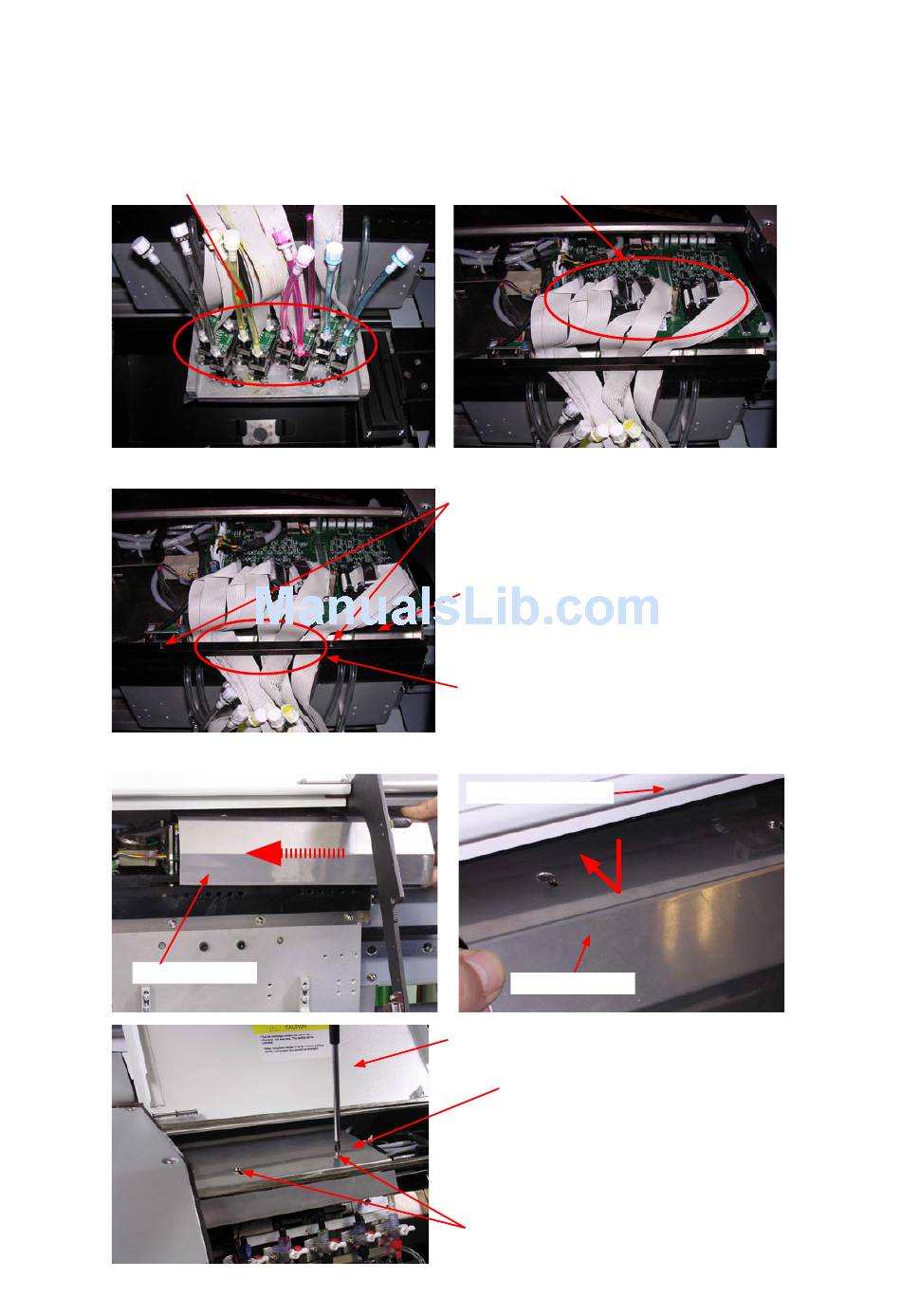

(2) Connect the print head cables provided as shown in picture below.
Connect each print head cables to each print
heads.
(3) Attach the fixer as shown in picture below.
(4) Attach the main board cover as shown in picture below.
Main board cover
JS310-UM-251-9370
8. Print Head Adjustment Procedures
Connect each print head cables to the print
head carriage PCB connectors.
Tighten the screws.
Fixer
Put the cable through
a guide.
Open the front panel.
Main board cover
Open the rear panel.
Main board cover
Tighten the screws.
72
