7.2 Adjusting the auto feed function

(1) Feed the media manually.
Press down the "I" side (Manual) of the selector switch on the media feeding system.
When the media has passed over the media sensor (or just before the media reaches the floor), return the
selector switch to the position between the "II" and "I" markings (the OFF position, "O").

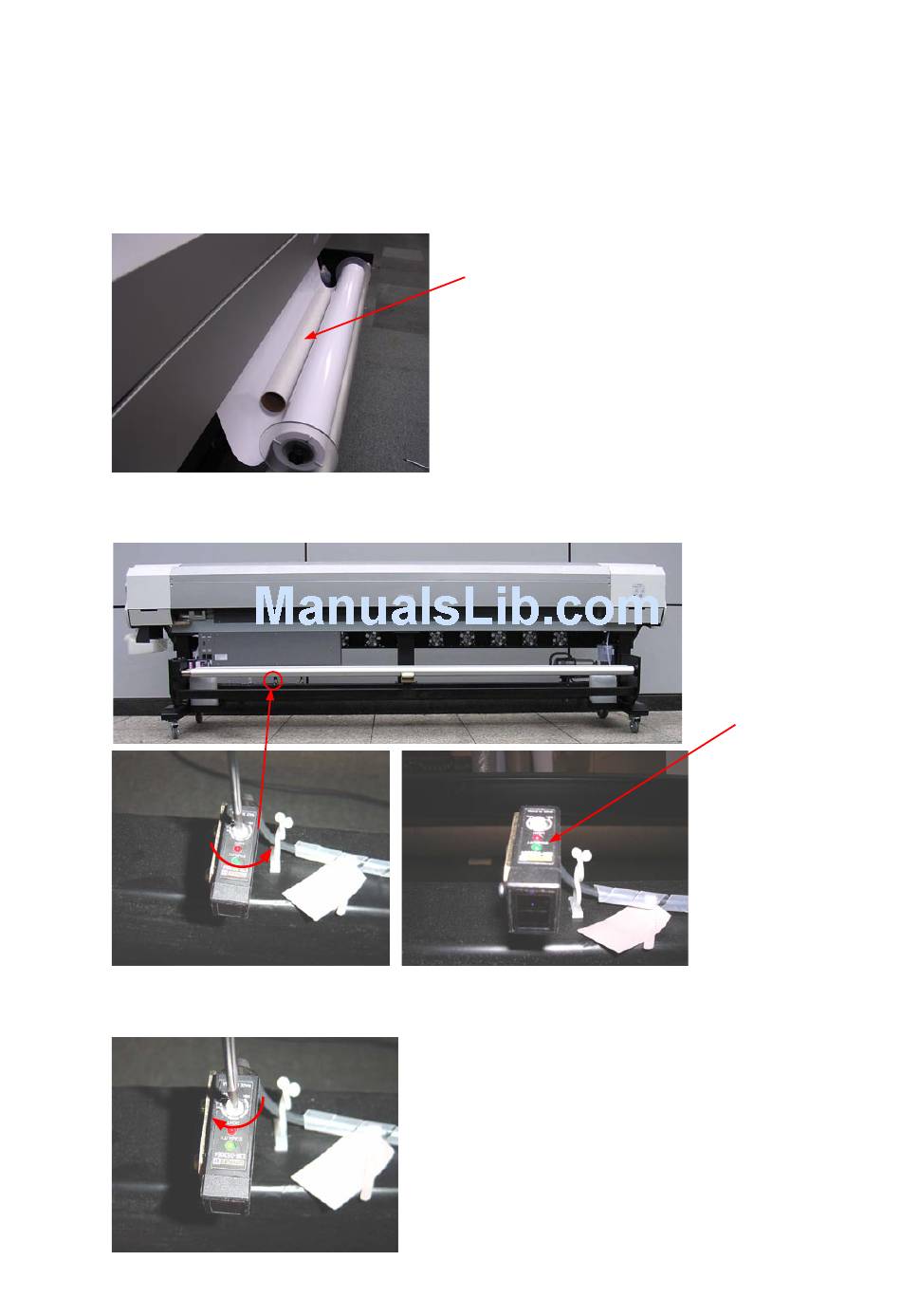

(2) Place the empty core provided on top of the media as shown in the picture below.
(3) Use a screwdriver to turn the trimmer fully to the left for the rear media sensor.
The orange LED goes out (only the green LED remains lit).
(4) Gradually return the trimmer to the right.
Stop at the position where the orange LED lights.
