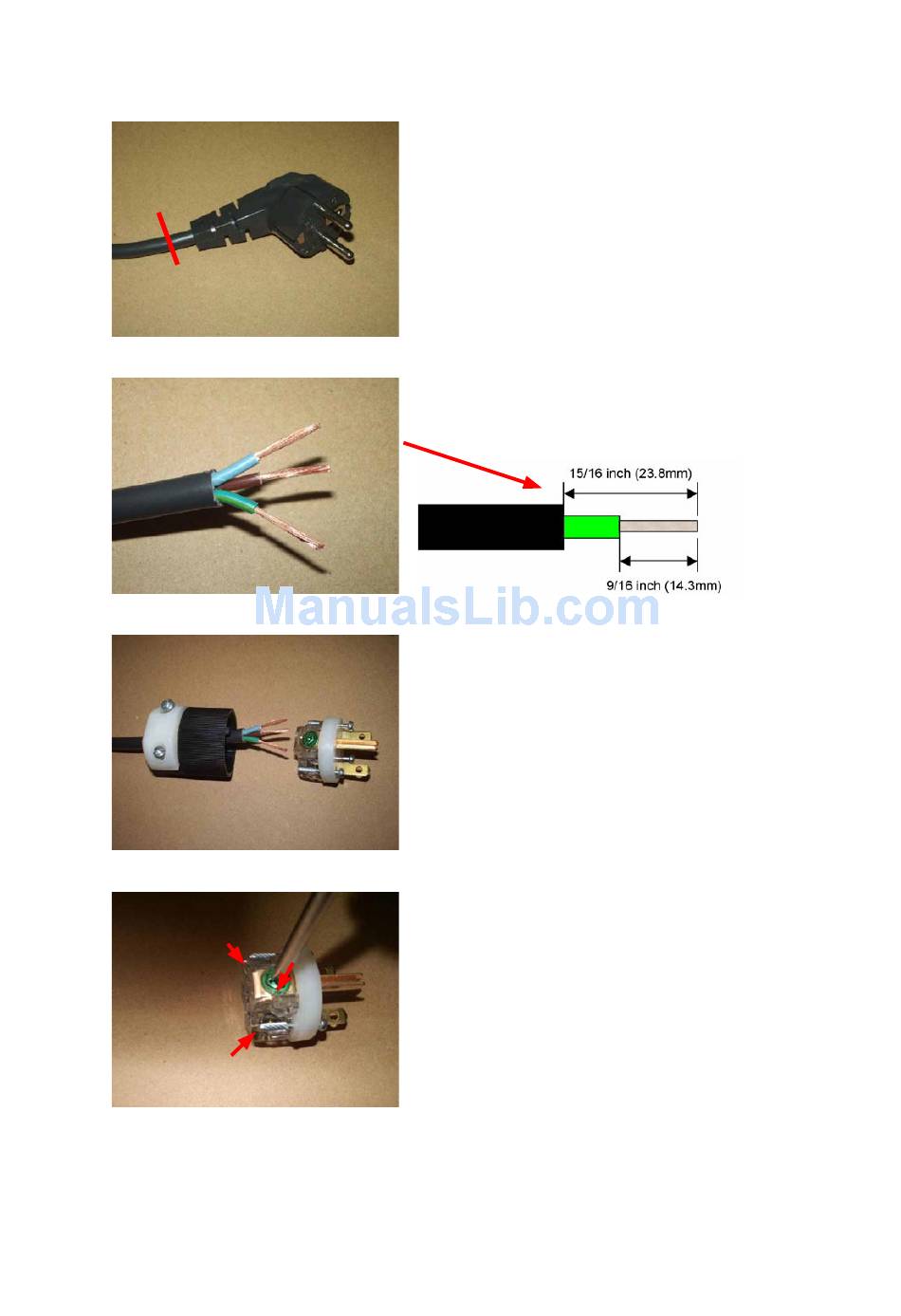

17. AC cable alteration procedure from CEE to NEMA
(1) Cut the head of CEE cable.
Cut here
(2) Peel off the edge of the cut cable with wire stripper as below length.
(3) After removing the head of NEMA plug, insert the peeled off cable.
(4) Loosen three terminal screws.
JS310-UM-251-9370
17. AC cable alteration procedure from CEE to NEMA
113
