GRAPHTEC SignJet JS310-25ES Service Manual page 92

(3) Select an adjustment pattern and print it.
(a) On the menu bar, click File -> Open.
(b) Open the file "C: /Try/SmallGrid126.group"

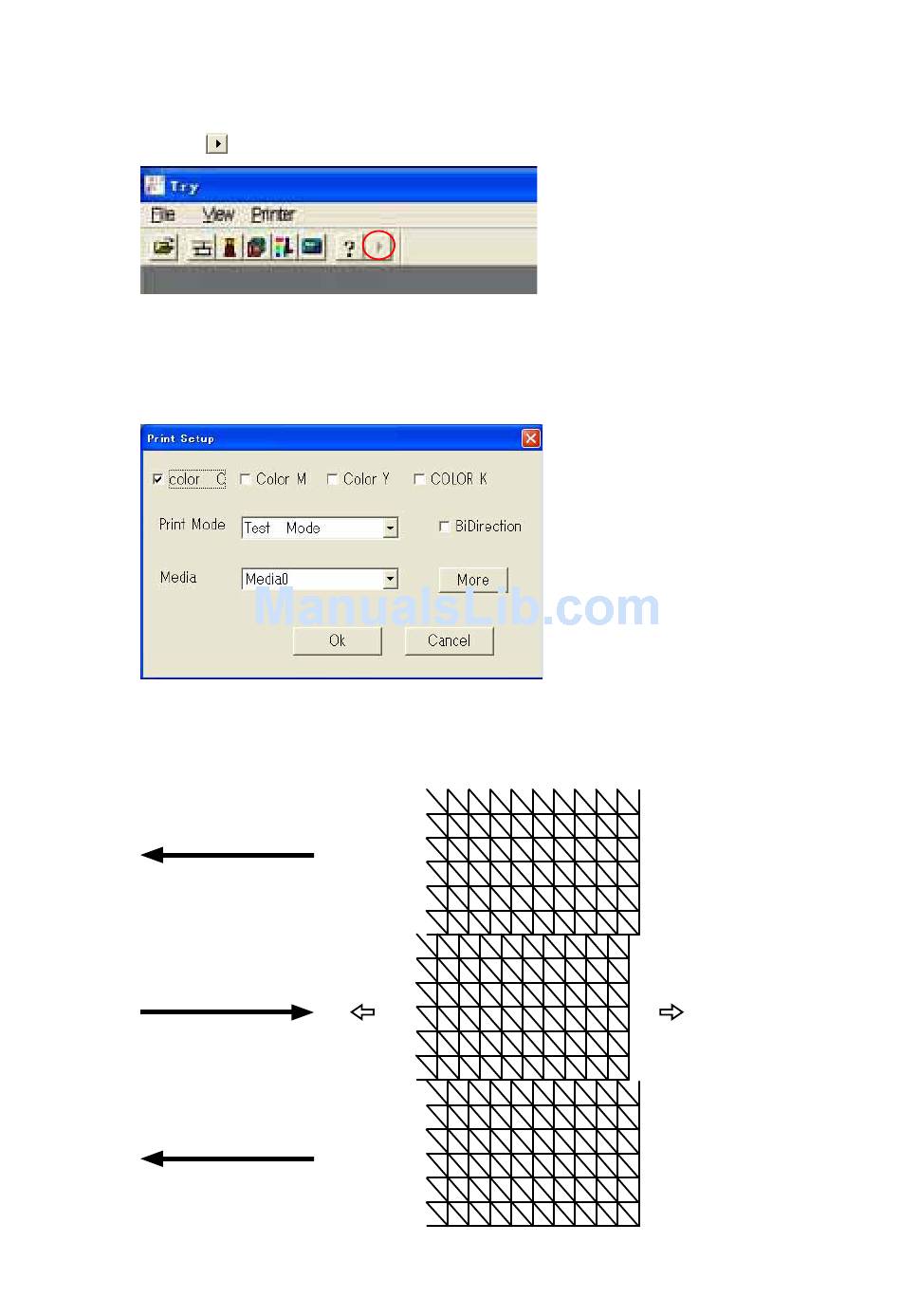

(c) Click the
(d) Only cyan will be printed.
(4) Use the Try utility to adjust the spacing between each printed bands.
(a) Use the Try utility to adjust the bi-directional printing band.
(b) Click the "More" button from the Print Setup menu to display the Important Setup menu.
(c) The "Warning: Change these parameters carefully!" message is displayed. Click "Yes".
(d) Perform adjustments accordingly while viewing the printed results.
Printing direction
Printed from the right.
Printed from the left.
(Return pass)
JS310-UM-251-9370
button on the tool bar to print the selected pattern.
-
8. Print Head Adjustment Procedures
