12

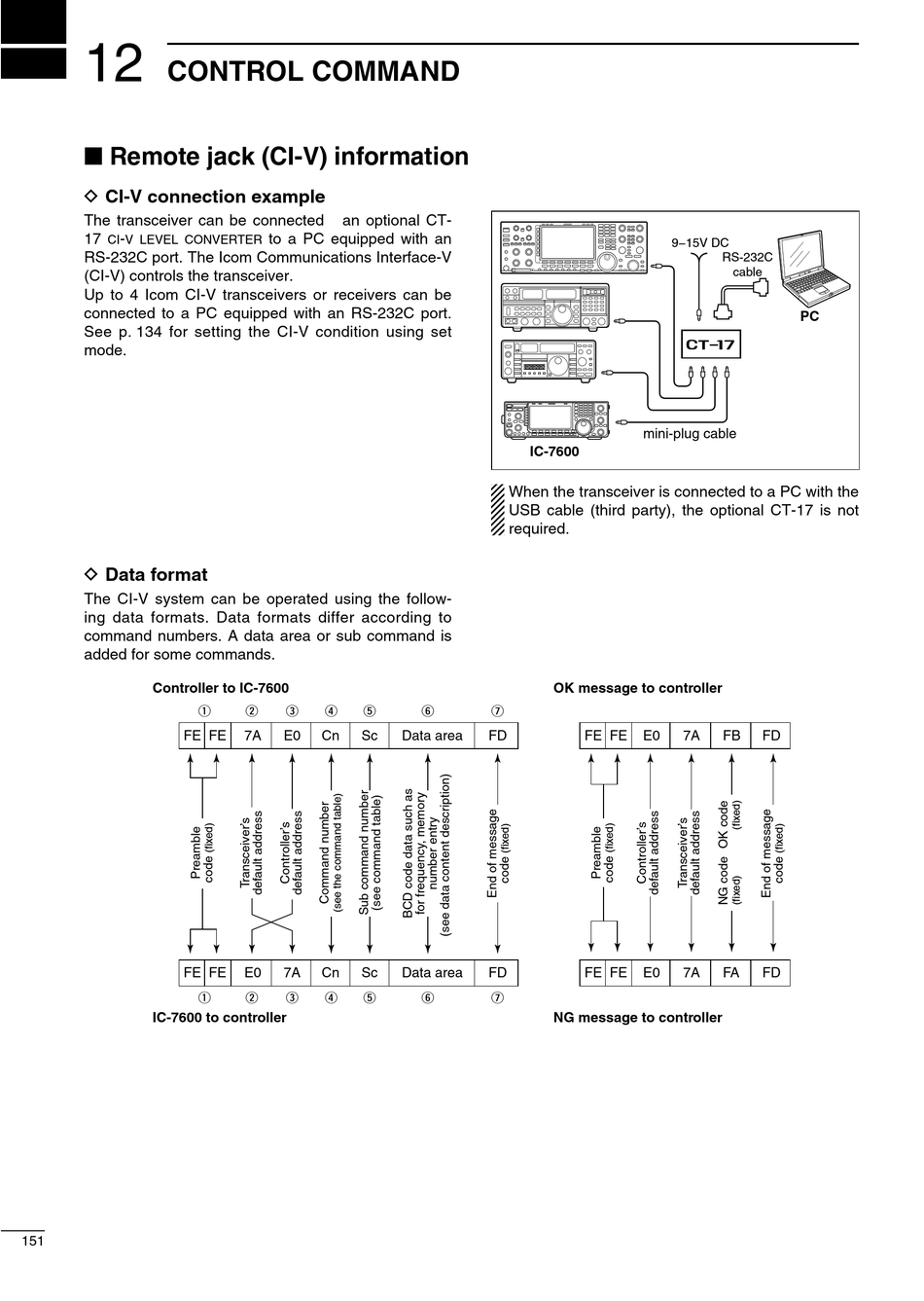

CONTROL COMMAND

Remote jack (CI-V) information

D CI-V connection example

The transceiver can be connected
17 -
CI V LEVEL CONVERTER
RS-232C port. The Icom Communications Interface-V
(CI-V) controls the transceiver.
Up to 4 Icom CI-V transceivers or receivers can be
connected to a PC equipped with an RS-232C port.
See p. 134 for setting the CI-V condition using set
mode.

D Data format

The CI-V system can be operated using the follow-
ing data formats. Data formats differ according to
command numbers. A data area or sub command is
added for some commands.
Controller to IC-7600
FE FE
FE FE
IC-7600 to controller
151
an optional CT-
to a PC equipped with an
q w e r t
7A E0 Cn Sc
E0 7A Cn Sc
q w e r t
IC-7600
When the transceiver is connected to a PC with the
USB cable (third party), the optional CT-17 is not
required.
OK me
y u
Data area FD
Data area FD
y u
NG me
9−15V DC
RS-232C
cable
ct-17
mini-plug cable
age to controller
FE FE E0 7A FB
FE FE E0 7A FA
age to controller
PC
FD
FD
