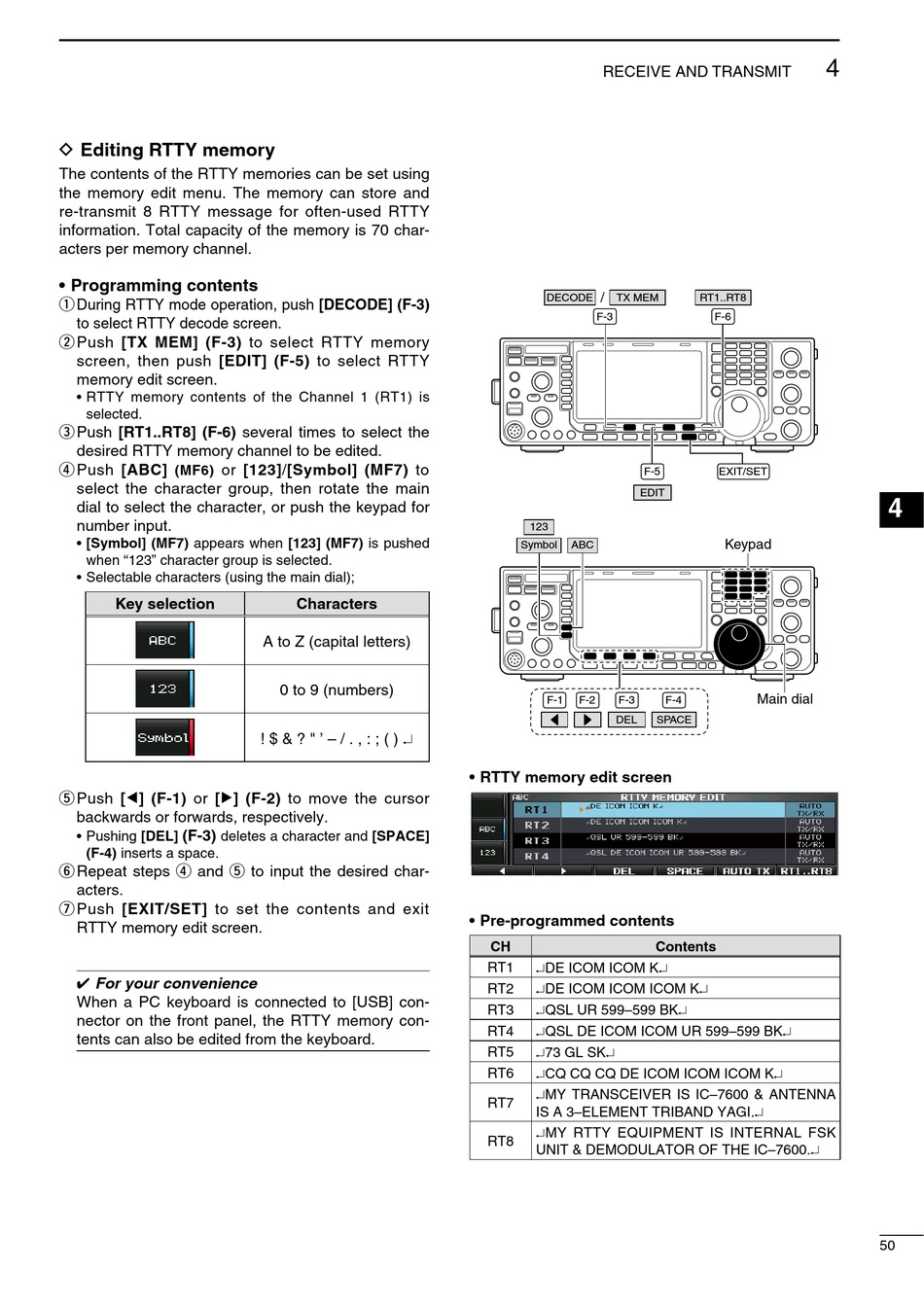

D Editing RTTY memory

The contents of the RTTY memories can be set using
the memory edit menu. The memory can store and
re-transmit 8 RTTY message for often-used RTTY
information. Total capacity of the memory is 70 char-
acters per memory channel.
• Programming contents
q During RTTY mode operation, push [DECODE] (F-3)
to select RTTY decode screen.
w Push [TX MEM] (F-3) to select RTTY memory
screen, then push [EDIT] (F-5) to select RTTY
memory edit screen.
• RTTY memory contents of the Channel 1 (RT1) is
selected.
e Push [RT1..RT8] (F-6) several times to select the
desired RTTY memory channel to be edited.
r Push [ABC]
or [123]/[Symbol] (MF7) to
(MF6)
select the character group, then rotate the main
dial to select the character, or push the keypad for
number input.
• [Symbol] (MF7) appears when [123] (MF7) is pushed
when "123" character group is selected.
• Selectable characters (using the main dial);
Key selection
t Push [Ω] (F-1) or [≈] (F-2) to move the cursor
backwards or forwards, respectively.
(F-3)
• Pushing [DEL] deletes a character and [SPACE]
(F-4) inserts a space.
y Repeat steps r and t to input the desired char-
acters.
u Push [EXIT/SET] to set the contents and exit
RTTY memory edit screen.
For your convenience
When a PC keyboard is connected to [USB] con-
nector on the front panel, the RTTY memory con-
tents can also be edited from the keyboard.
Characters
A to Z (capital letters)
0 to 9 (numbers)
! $ & ? " ' – / . , : ; ( ) ↵
RECEIVE AND TRANSMIT
/
DECODE TX MEM
F-3
F-5
EDIT
123
Symbol ABC
F-1 F-2 F-3
DEL
• RTTY memory edit screen
• Pre-programmed contents
CH
↵DE ICOM ICOM K↵
RT1
↵DE ICOM ICOM ICOM K↵
RT2
↵QSL UR 599–599 BK↵
RT3
↵QSL DE ICOM ICOM UR 599–599 BK↵
RT4
↵73 GL SK↵
RT5
↵CQ CQ CQ DE ICOM ICOM ICOM K↵
RT6
↵MY TRANSCEIVER IS IC–7600 & ANTENNA
RT7
IS A 3–ELEMENT TRIBAND YAGI.↵
↵MY RTTY EQUIPMENT IS INTERNAL FSK
RT8
UNIT & DEMODULATOR OF THE IC–7600.↵
4
RT1..RT8
F-6
EXIT/SET
Keypad
Main dial
F-4
SPACE
Contents
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
