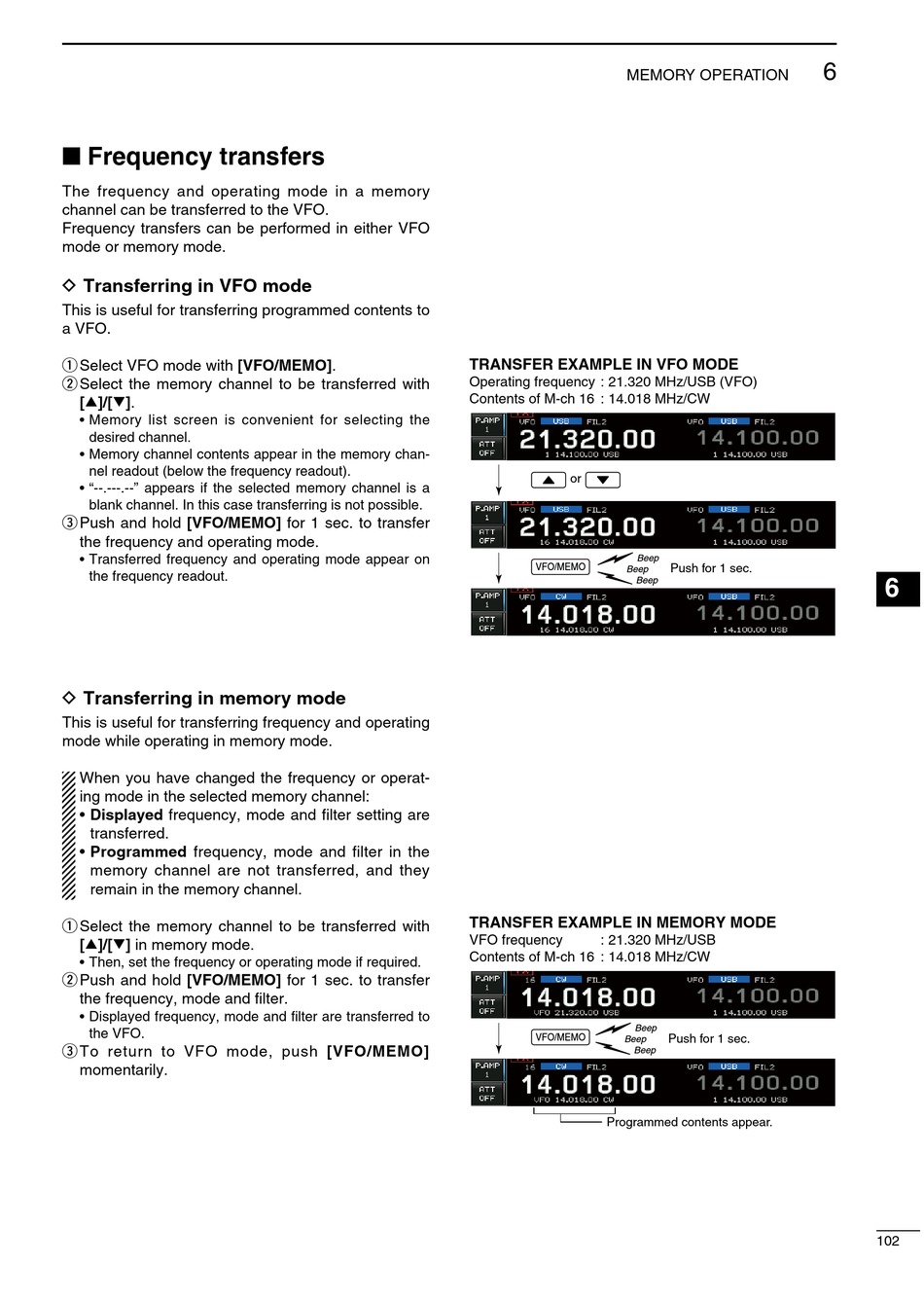

Frequency transfers

The frequency and operating mode in a memory
channel can be transferred to the VFO.
Frequency transfers can be performed in either VFO
mode or memory mode.

D Transferring in VFO mode

This is useful for transferring programmed contents to
a VFO.
q Select VFO mode with [VFO/MEMO].
w Select the memory channel to be transferred with
[∫]/[√].
• Memory list screen is convenient for selecting the
desired channel.
• Memory channel contents appear in the memory chan-
nel readout (below the frequency readout).
• "--.---.--" appears if the selected memory channel is a
blank channel. In this case transferring is not possible.
e Push and hold [VFO/MEMO] for 1 sec. to transfer
the frequency and operating mode.
• Transferred frequency and operating mode appear on
the frequency readout.

D Transferring in memory mode

This is useful for transferring frequency and operating
mode while operating in memory mode.
When you have changed the frequency or operat-
ing mode in the selected memory channel:
• Displayed frequency, mode and filter setting are
transferred.
• Programmed frequency, mode and filter in the
memory channel are not transferred, and they
remain in the memory channel.
q Select the memory channel to be transferred with
[∫]/[√] in memory mode.
• Then, set the frequency or operating mode if required.
w Push and hold [VFO/MEMO] for 1 sec. to transfer
the frequency, mode and filter.
• Displayed frequency, mode and filter are transferred to
the VFO.
e To return to VFO mode, push [VFO/MEMO]
momentarily.
MEMORY OPERATION
TRANSFER EXAMPLE IN VFO MODE
Operating frequency : 21.320 MHz/USB (VFO)
Contents of M-ch 16 : 14.018 MHz/CW
or
Beep
VFO/MEMO
Beep
Beep
TRANSFER EXAMPLE IN MEMORY MODE
VFO frequency : 21.320 MHz/USB
Contents of M-ch 16 : 14.018 MHz/CW
Beep
VFO/MEMO
Beep
Beep
Programmed contents appear.
6
Push for 1 sec.
Push for 1 sec.
