1

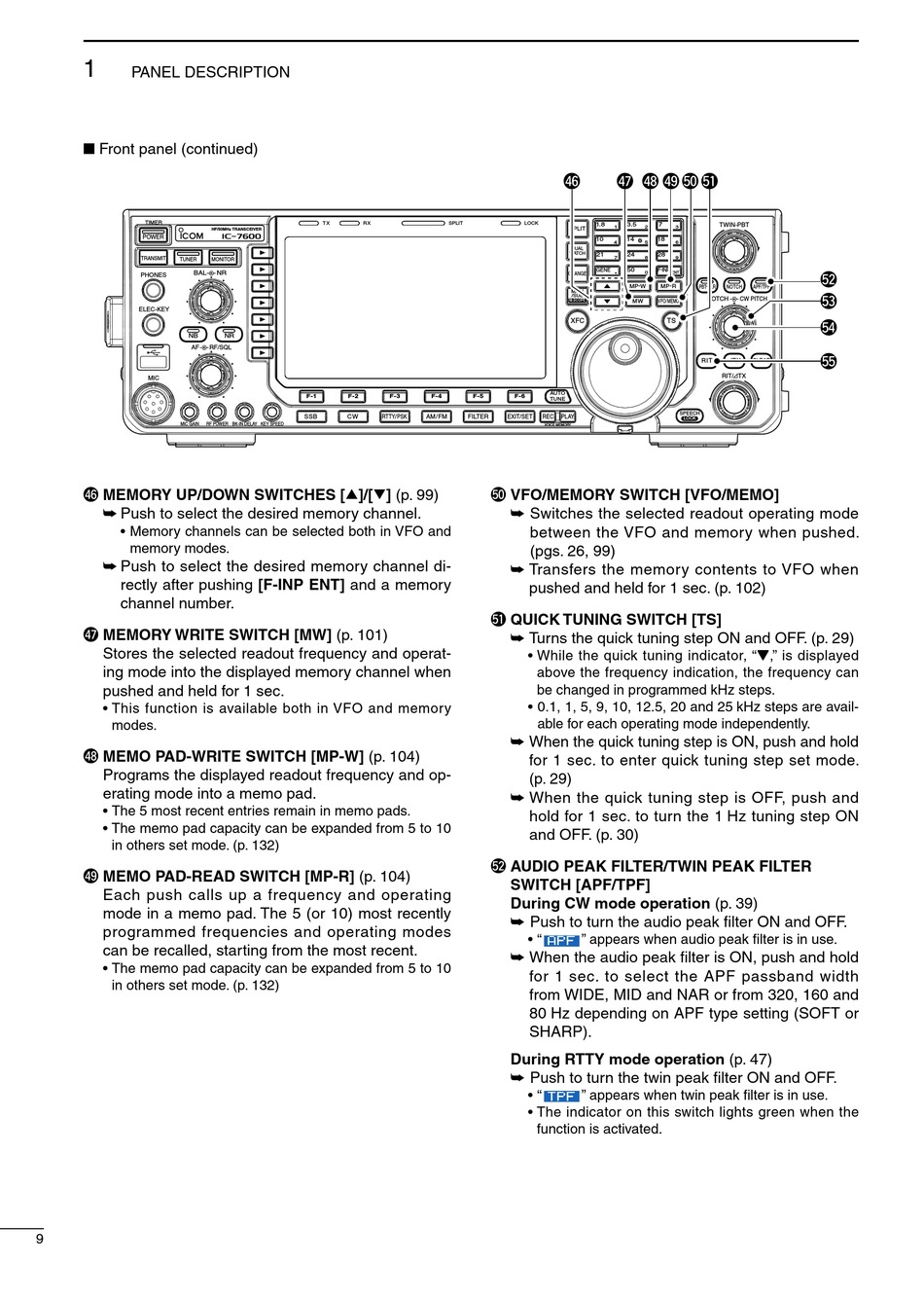

PANEL DESCRIPTION
Front panel (continued)
TIMER
POWER
TRANSMIT
TUNER
BAL
PHONES
ELEC-KEY
NB
AF RF/SQL
MIC
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
$6 MEMORY UP/DOWN SWITCHES [∫]/[√] (p. 99)
Push to select the desired memory channel.
• Memory channels can be selected both in VFO and
memory modes.
Push to select the desired memory channel di-
rectly after pushing [F-INP ENT] and a memory
channel number.
$7 MEMORY WRITE SWITCH [MW] (p. 101)
Stores the selected readout frequency and operat-
ing mode into the displayed memory channel when
pushed and held for 1 sec.
• This function is available both in VFO and memory
modes.
$8 MEMO PAD-WRITE SWITCH [MP-W] (p. 104)
Programs the displayed readout frequency and op-
erating mode into a memo pad.
• The 5 most recent entries remain in memo pads.
• The memo pad capacity can be expanded from 5 to 10
in others set mode. (p. 132)
$9 MEMO PAD-READ SWITCH [MP-R] (p. 104)
Each push calls up a frequency and operating
mode in a memo pad. The 5 (or 10) most recently
programmed frequencies and operating modes
can be recalled, starting from the most recent.
• The memo pad capacity can be expanded from 5 to 10
in others set mode. (p. 132)
9
T X RX
HF/50MHz TRANSCEIVER
MONITOR
NR
NR
F- 1 F- 2
SSB CW RTTY/PSK
$6
SPLIT LOCK
AUTO
F- 3 F- 4 F- 5 F- 6
TUNE
AM/FM FILTER EXIT/SET REC PLAY
VOICE MEMORY
%0 VFO/MEMORY SWITCH [VFO/MEMO]
Switches the selected readout operating mode
between the VFO and memory when pushed.
(pgs. 26, 99)
Transfers the memory contents to VFO when
pushed and held for 1 sec. (p. 102)
%1 QUICK TUNING SWITCH [TS]
Turns the quick tuning step ON and OFF. (p. 29)
• While the quick tuning indicator, "Z," is displayed
above the frequency indication, the frequency can
be changed in programmed kHz steps.
• 0.1, 1, 5, 9, 10, 12.5, 20 and 25 kHz steps are avail-
able for each operating mode independently.
When the quick tuning step is ON, push and hold
for 1 sec. to enter quick tuning step set mode.
(p. 29)
When the quick tuning step is OFF, push and
hold for 1 sec. to turn the 1 Hz tuning step ON
and OFF. (p. 30)
%2 AUDIO PEAK FILTER/TWIN PEAK FILTER
SWITCH [APF/TPF]
During CW mode operation (p. 39)
Push to turn the audio peak filter ON and OFF.
• "
When the audio peak filter is ON, push and hold
for 1 sec. to select the APF passband width
from WIDE, MID and NAR or from 320, 160 and
80 Hz depending on APF type setting (SOFT or
SHARP).
During RTTY mode operation (p. 47)
Push to turn the twin peak filter ON and OFF.
• "
• The indicator on this switch lights green when the
function is activated.
$7 $8 $9 %0 %1
1.8 3.5 7 TWIN-PBT
1 2 3
SPLIT
10 14 18
4 5 6
DUAL
WATCH 21 24 28
7 8 9
GENE 50 F-INP
0
CHANGE ENT
MP-W MP-R PBT - CLR
NOTCH
MAIN
/SUB
NOTCH CW PITCH
M.SCOPE MW VFO/MEMO
XFC TS
RIT TX
RIT/ TX
SPEECH
LOCK
" appears when audio peak filter is in use.
" appears when twin peak filter is in use.
%2
APF/TPF
%3
%4
%5
CLEAR
