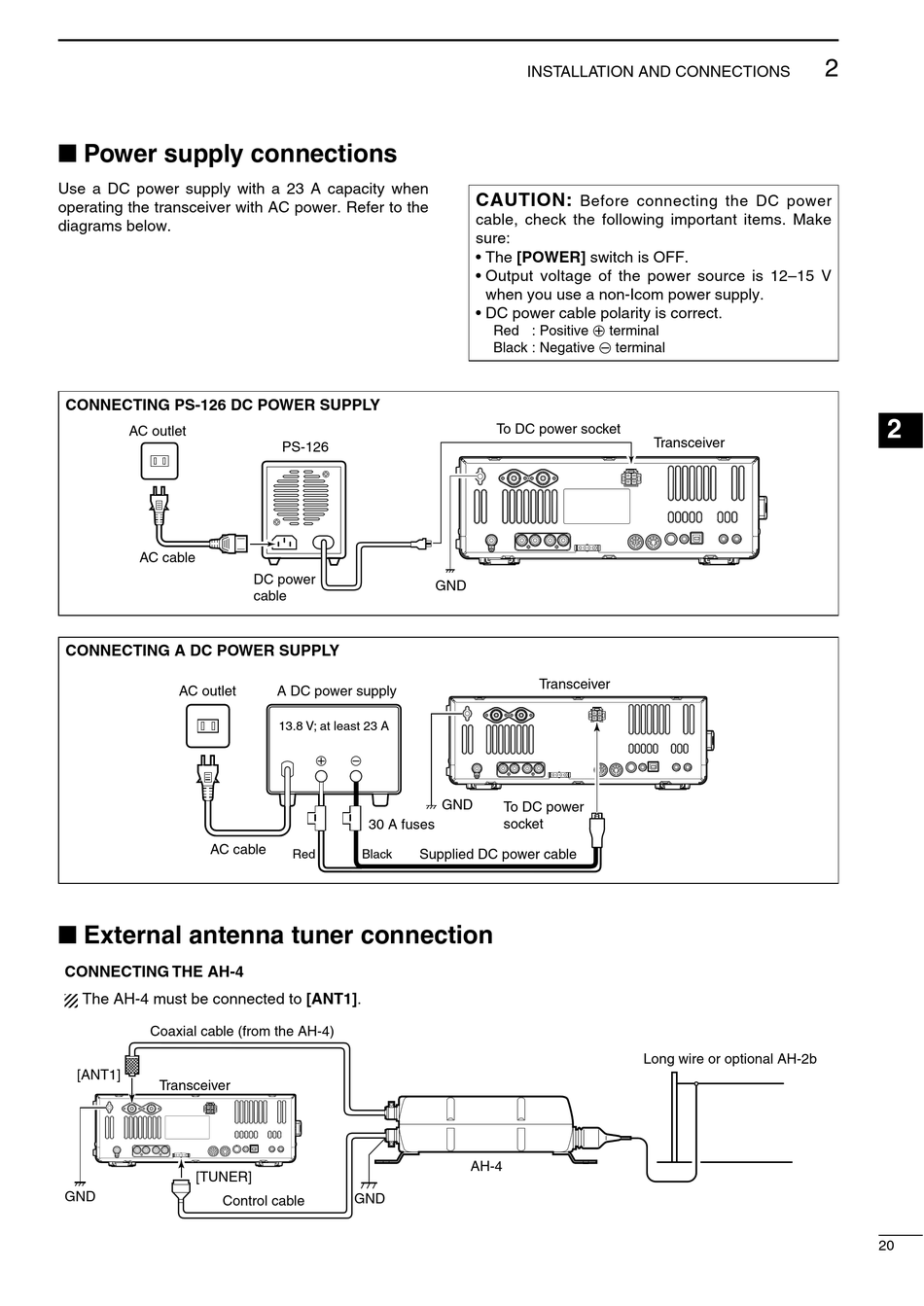

Power supply connections

Use a DC power supply with a 23 A capacity when
operating the transceiver with AC power. Refer to the
diagrams below.
CONNECTING PS-126 DC POWER SUPPLY
AC outlet
AC cable
CONNECTING A DC POWER SUPPLY
AC outlet
AC cable

External antenna tuner connection

CONNECTING THE AH-4
The AH-4 must be connected to [ANT1].
Coaxial cable (from the AH-4)
[ANT1]
Transceiver
[TUNER]
GND
Control cable
PS-126
DC power
cable
A DC power supply
13.8 V; at least 23 A
+ _
30 A fuses
Supplied DC power cable
Red Black
GND
INSTALLATION AND CONNECTIONS
CAUTION:
Before connecting the DC power
cable, check the following important items. Make
sure:
• The [POWER] switch is OFF.
• Output voltage of the power source is 12–15 V
when you use a non-Icom power supply.
• DC power cable polarity is correct.
Red : Positive + terminal
Black : Negative _ terminal
To DC power socket
GND
Transceiver
GND
To DC power
socket
AH-4
Transceiver
Long wire or optional AH-2b
