INSTALLATION AND CONNECTIONS

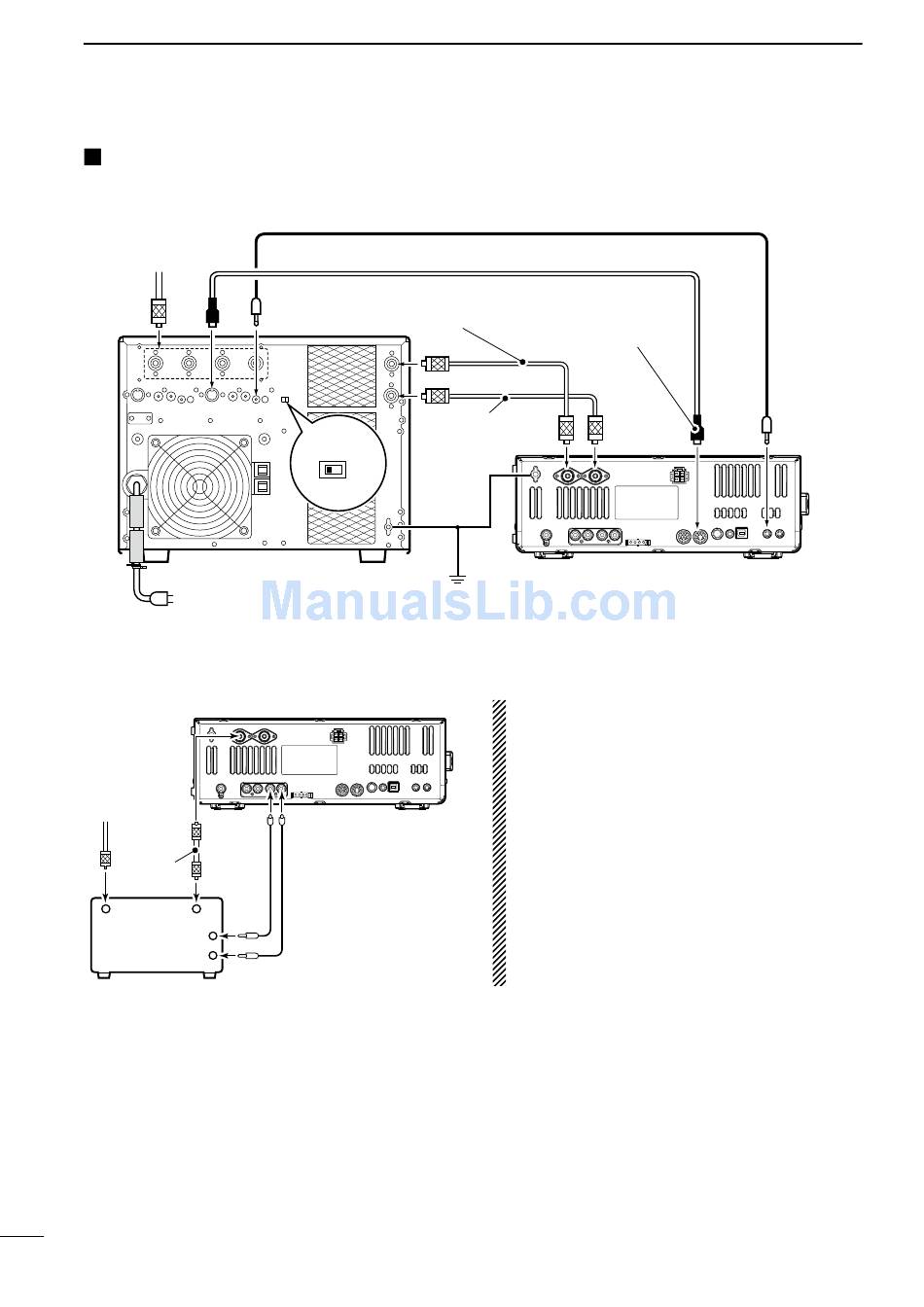

Linear amplifier connections

D Connecting the IC-PW1/EURO

To an
antenna
ACC-1
ANT
AC outlet
(Non-European versions : 100–120/220–240 V
European version
D Connecting a non-Icom linear amplifier
ANT1
To an
antenna
50 ø
coaxial
cable
RF OUTPUT RF INPUT
ALC
SEND
Non-Icom linear amplifier
21
Remote control cable
ACC cable
Coaxial cable
REMOTE (supplied with the
IC-PW1/EURO)
IC-PW1/EURO
: 230 V)
Transceiver
ALC SEND
(supplied with the IC-PW1/EURO)
(supplied with the IC-PW1/EURO)
Be sure to connect the cable
to the 7-pin ACC 2 jack.
INPUT1
INPUT2
Coaxial cable*
Connect
[INPUT2]
ANT1
if necessary
GND
GND
GND
R WARNING:
Set the transceiver output power and linear
amplifier ALC output level after referring to the
linear amplifier instruction manual.
The ALC input level must be in the range 0 V to –
4 V. The transceiver does not accept positive volt-
age. Non-matched ALC and RF power settings
could overheat or damage the linear amplifier.
The maximum signal level of [SEND] jack is
16 V/0.5 A DC with initial setting, and 250 V/
200 mA with "MOSFET" setting (see p. 125 for de-
tails). Use an external relay unit if your non-Icom
linear amplifier requires control voltage and/or
current greater than specified.
ANT2 ACC 2 REMOTE
Transceiver
*Purchase separately
