7
SCANS

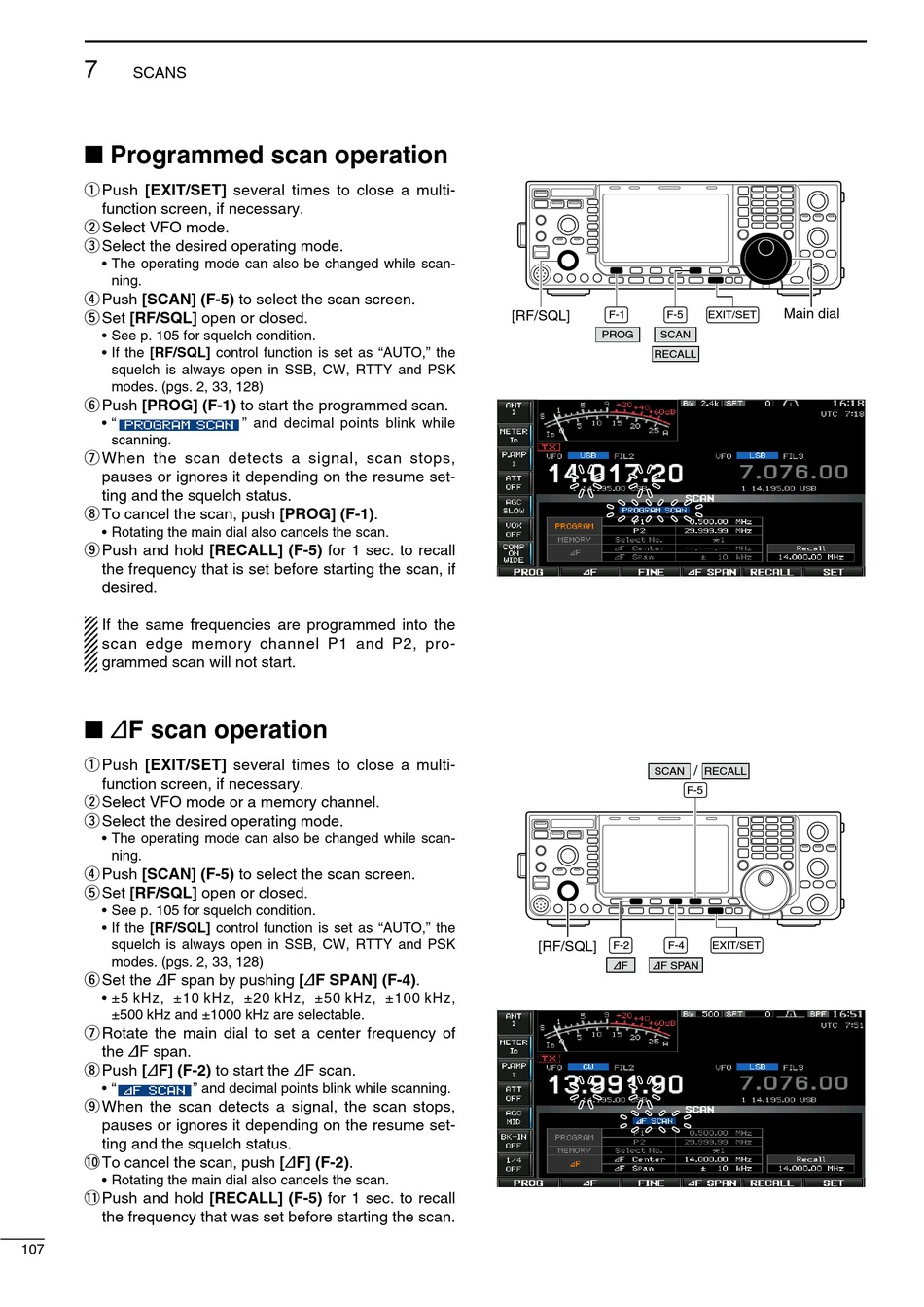

Programmed scan operation

q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select VFO mode.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [SCAN] (F-5) to select the scan screen.
t Set [RF/SQL] open or closed.
• See p. 105 for squelch condition.
• If the [RF/SQL] control function is set as "AUTO," the
squelch is always open in SSB, CW, RTTY and PSK
modes. (pgs. 2, 33, 128)
y Push [PROG] (F-1) to start the programmed scan.
• "
scanning.
u When the scan detects a signal, scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch status.
i To cancel the scan, push [PROG] (F-1).
• Rotating the main dial also cancels the scan.
o Push and hold [RECALL] (F-5) for 1 sec. to recall
the frequency that is set before starting the scan, if
desired.
If the same frequencies are programmed into the
scan edge memory channel P1 and P2, pro-
grammed scan will not start.

∂F scan operation

q Push [EXIT/SET] several times to close a multi-
function screen, if necessary.
w Select VFO mode or a memory channel.
e Select the desired operating mode.
• The operating mode can also be changed while scan-
ning.
r Push [SCAN] (F-5) to select the scan screen.
t Set [RF/SQL] open or closed.
• See p. 105 for squelch condition.
• If the [RF/SQL] control function is set as "AUTO," the
squelch is always open in SSB, CW, RTTY and PSK
modes. (pgs. 2, 33, 128)
y Set the ∂F span by pushing [∂F SPAN] (F-4).
• ±5 kHz, ±10 kHz, ±20 kHz, ±50 kHz, ±100 kHz,
±500 kHz and ±1000 kHz are selectable.
u Rotate the main dial to set a center frequency of
the ∂F span.
i Push [∂F] (F-2) to start the ∂F scan.
• " " and decimal points blink while scanning.
o When the scan detects a signal, the scan stops,
pauses or ignores it depending on the resume set-
ting and the squelch status.
!0 To cancel the scan, push [∂F] (F-2).
• Rotating the main dial also cancels the scan.
!1 Push and hold [RECALL] (F-5) for 1 sec. to recall
the frequency that was set before starting the scan.
107
" and decimal points blink while
[RF/SQL]
F-1 F-5
PROG SCAN
RECALL
SCAN
F-5
[RF/SQL] F-2 F-4
∂F ∂F SPAN
Main dial
EXIT/SET
/
RECALL
EXIT/SET
