Selecting Vfo/Memory Mode; Main/Sub Band Selection; D Main/Sub Band Switching; D Main/Sub Band Equalization - Icom IC-7600 Instruction Manual

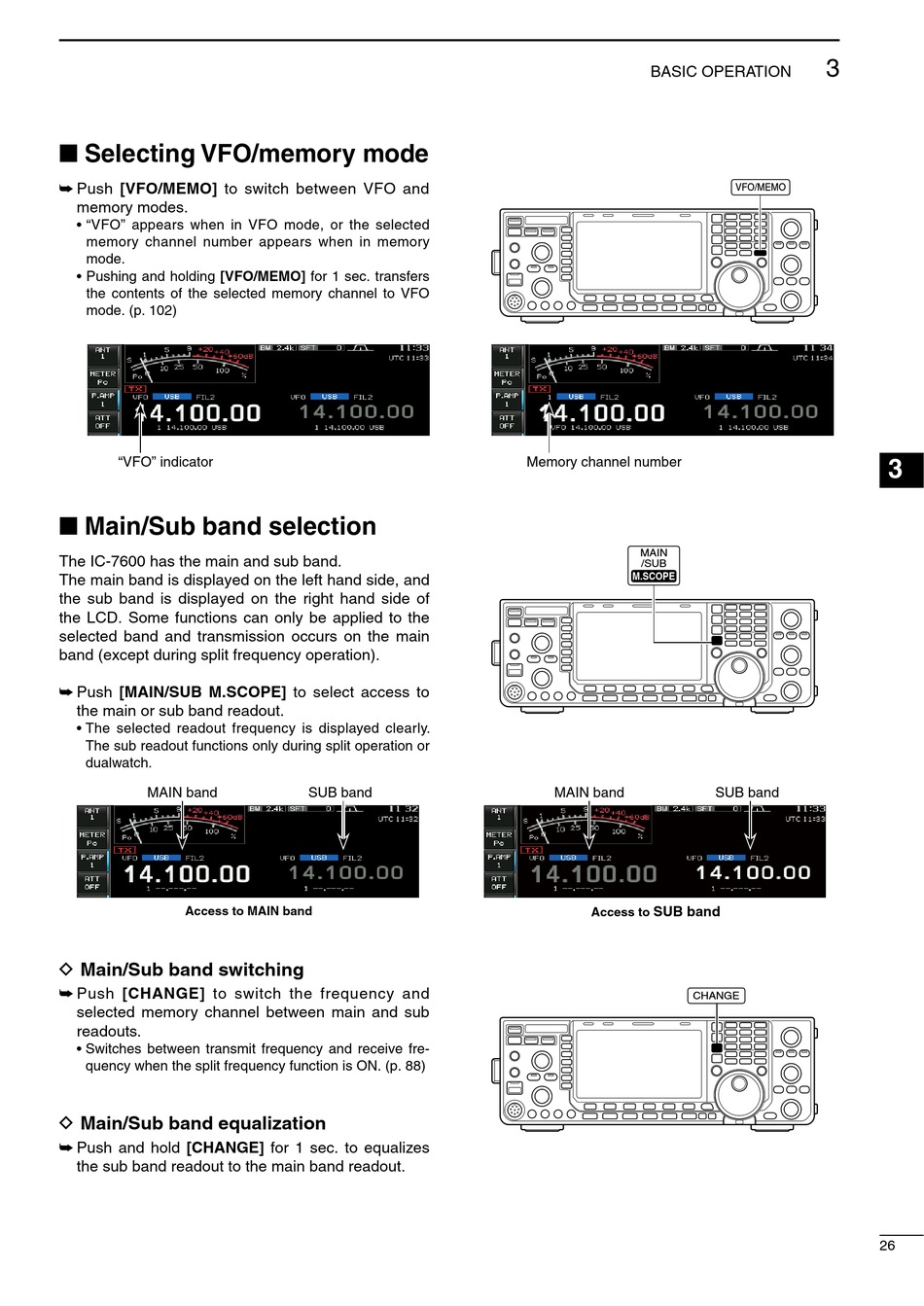

Selecting VFO/memory mode

Push [VFO/MEMO] to switch between VFO and
memory modes.
• "VFO" appears when in VFO mode, or the selected
memory channel number appears when in memory
mode.
• Pushing and holding [VFO/MEMO] for 1 sec. transfers
the contents of the selected memory channel to VFO
mode. (p. 102)
"VFO" indicator

Main/Sub band selection

The IC-7600 has the main and sub band.
The main band is displayed on the left hand side, and
the sub band is displayed on the right hand side of
the LCD. Some functions can only be applied to the
selected band and transmission occurs on the main
band (except during split frequency operation).
Push [MAIN/SUB M.SCOPE] to select access to
the main or sub band readout.
• The selected readout frequency is displayed clearly.
The sub readout functions only during split operation or
dualwatch.
MAIN band
Access to MAIN band

D Main/Sub band switching

Push [CHANGE] to switch the frequency and
selected memory channel between main and sub
readouts.
• Switches between transmit frequency and receive fre-
quency when the split frequency function is ON. (p. 88)

D Main/Sub band equalization

Push and hold [CHANGE] for 1 sec. to equalizes
the sub band readout to the main band readout.
SUB band
BASIC OPERATION
Memory channel number
MAIN
/SUB
M.SCOPE M.SCOPE
MAIN band
SUB band
Access to
CHANGE
3
VFO/MEMO
1
2
3
4
5
6
7
8
9
10
11
SUB band
12
13
14
15
16
17
18
19
20
21
26
