4
RECEIVE AND TRANSMIT

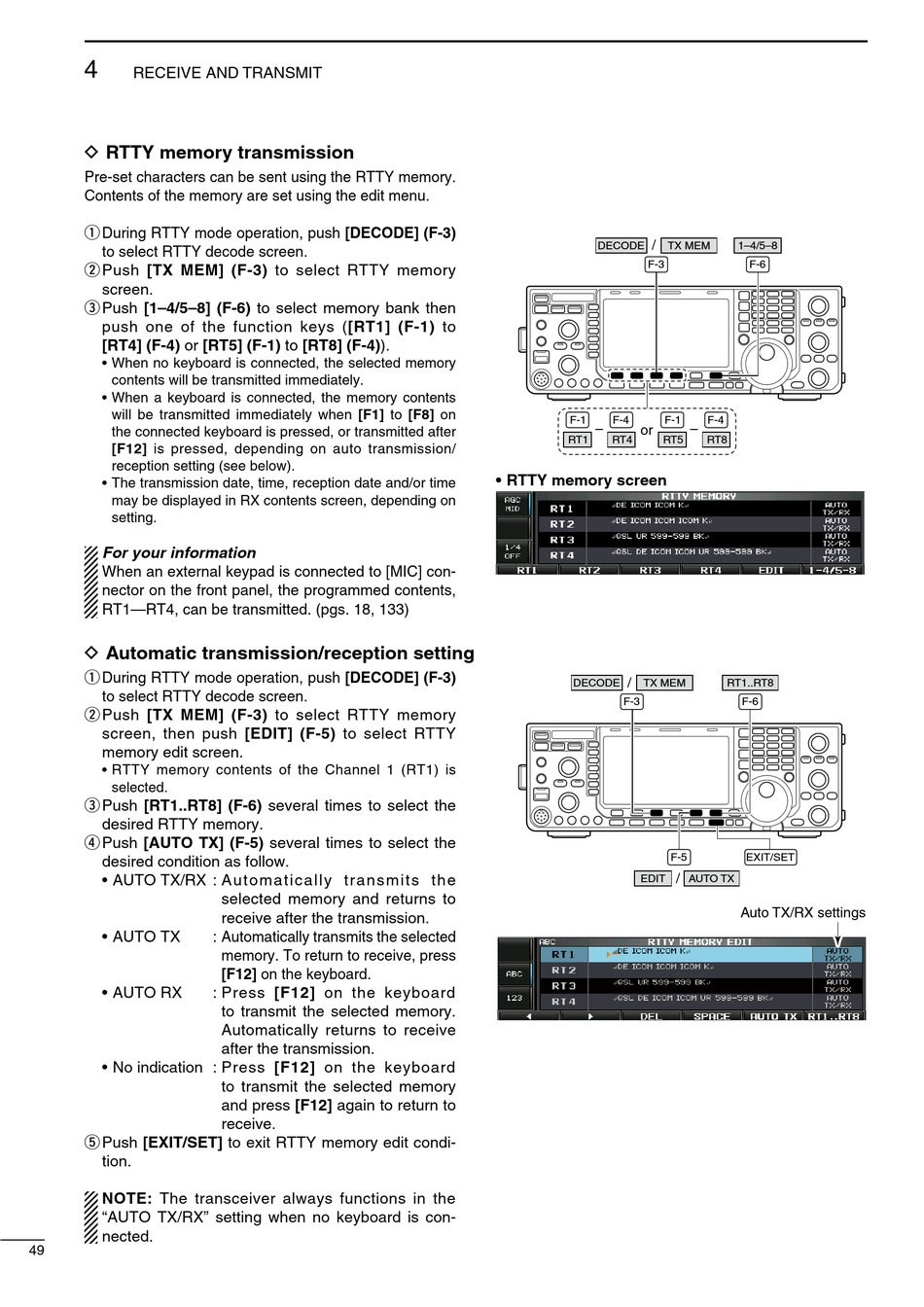

D RTTY memory transmission

Pre-set characters can be sent using the RTTY memory.
Contents of the memory are set using the edit menu.
q During RTTY mode operation, push [DECODE] (F-3)
to select RTTY decode screen.
w Push [TX MEM] (F-3) to select RTTY memory
screen.
e Push [1–4/5–8] (F-6) to select memory bank then
push one of the function keys ([RT1] (F-1) to
[RT4] (F-4) or [RT5] (F-1) to [RT8] (F-4)).
• When no keyboard is connected, the selected memory
contents will be transmitted immediately.
• When a keyboard is connected, the memory contents
will be transmitted immediately when [F1] to [F8] on
the connected keyboard is pressed, or transmitted after
[F12] is pressed, depending on auto transmission/
reception setting (see below).
• The transmission date, time, reception date and/or time
may be displayed in RX contents screen, depending on
setting.
For your information
When an external keypad is connected to [MIC] con-
nector on the front panel, the programmed contents,
RT1—RT4, can be transmitted. (pgs. 18, 133)

D Automatic transmission/reception setting

q During RTTY mode operation, push [DECODE] (F-3)
to select RTTY decode screen.
w Push [TX MEM] (F-3) to select RTTY memory
screen, then push [EDIT] (F-5) to select RTTY
memory edit screen.
• RTTY memory contents of the Channel 1 (RT1) is
selected.
e Push [RT1..RT8] (F-6) several times to select the
desired RTTY memory.
r Push [AUTO TX] (F-5) several times to select the
desired condition as follow.
• AUTO TX/RX : Automatically transm its the
• AUTO TX
• AUTO RX
• No indication : Press [F12] on the keyboard
t Push [EXIT/SET] to exit RTTY memory edit condi-
tion.
NOTE: The transceiver always functions in the
"AUTO TX/RX" setting when no keyboard is con-
nected.
49
selected memory and returns to
receive after the transmission.
: Automatically transmits the selected
memory. To return to receive, press
[F12] on the keyboard.
: Press [F12] on the keyboard
to transmit the selected memory.
Automatically returns to receive
after the transmission.
to transmit the selected memory
and press [F12] again to return to
receive.
/
DECODE TX MEM
F-3
F-1 F-4 F-1
–
or
RT1 RT4 RT5
• RTTY memory screen
/
DECODE TX MEM
F-3
F-5
EDIT
1–4/5–8
F-6
F-4
–
RT8
RT1..RT8
F-6
EXIT/SET
/
AUTO TX
Auto TX/RX settings
