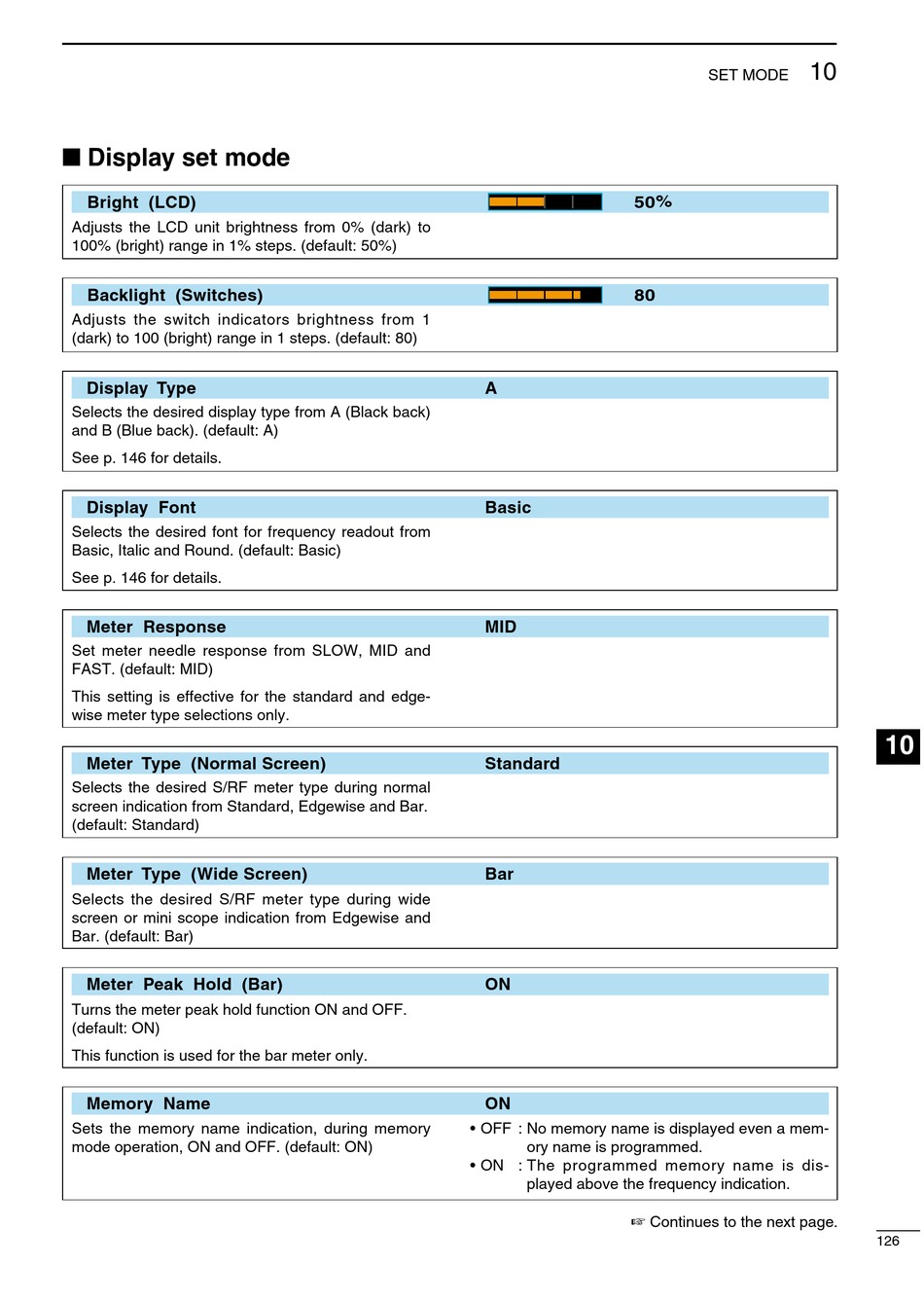

Display set mode

Bright (LCD)
Adjusts the LCD unit brightness from 0% (dark) to
100% (bright) range in 1% steps. (default: 50%)
Backlight (Switche )
Adjusts the switch indicators brightness from 1
(dark) to 100 (bright) range in 1 steps. (default: 80)
Display Type
Selects the desired display type from A (Black back)
and B (Blue back). (default: A)
See p. 146 for details.
Display Font
Selects the desired font for frequency readout from
Basic, Italic and Round. (default: Basic)
See p. 146 for details.
Meter Response
Set meter needle response from SLOW, MID and
FAST. (default: MID)
This setting is effective for the standard and edge-
wise meter type selections only.
Meter Type (Normal Screen)
Selects the desired S/RF meter type during normal
screen indication from Standard, Edgewise and Bar.
(default: Standard)
Meter Type (Wide Screen)
Selects the desired S/RF meter type during wide
screen or mini scope indication from Edgewise and
Bar. (default: Bar)
Meter Peak Hold (Bar)
Turns the meter peak hold function ON and OFF.
(default: ON)
This function is used for the bar meter only.
Memory Name
Sets the memory name indication, during memory
mode operation, ON and OFF. (default: ON)
50 %
80
A
Basic
MID
Standard
Bar
ON
ON
• OFF : No memory name is displayed even a mem-
ory name is programmed.
• ON : The programmed memory name is dis-
played above the frequency indication.
10
SET MODE
Continues to the next page.
