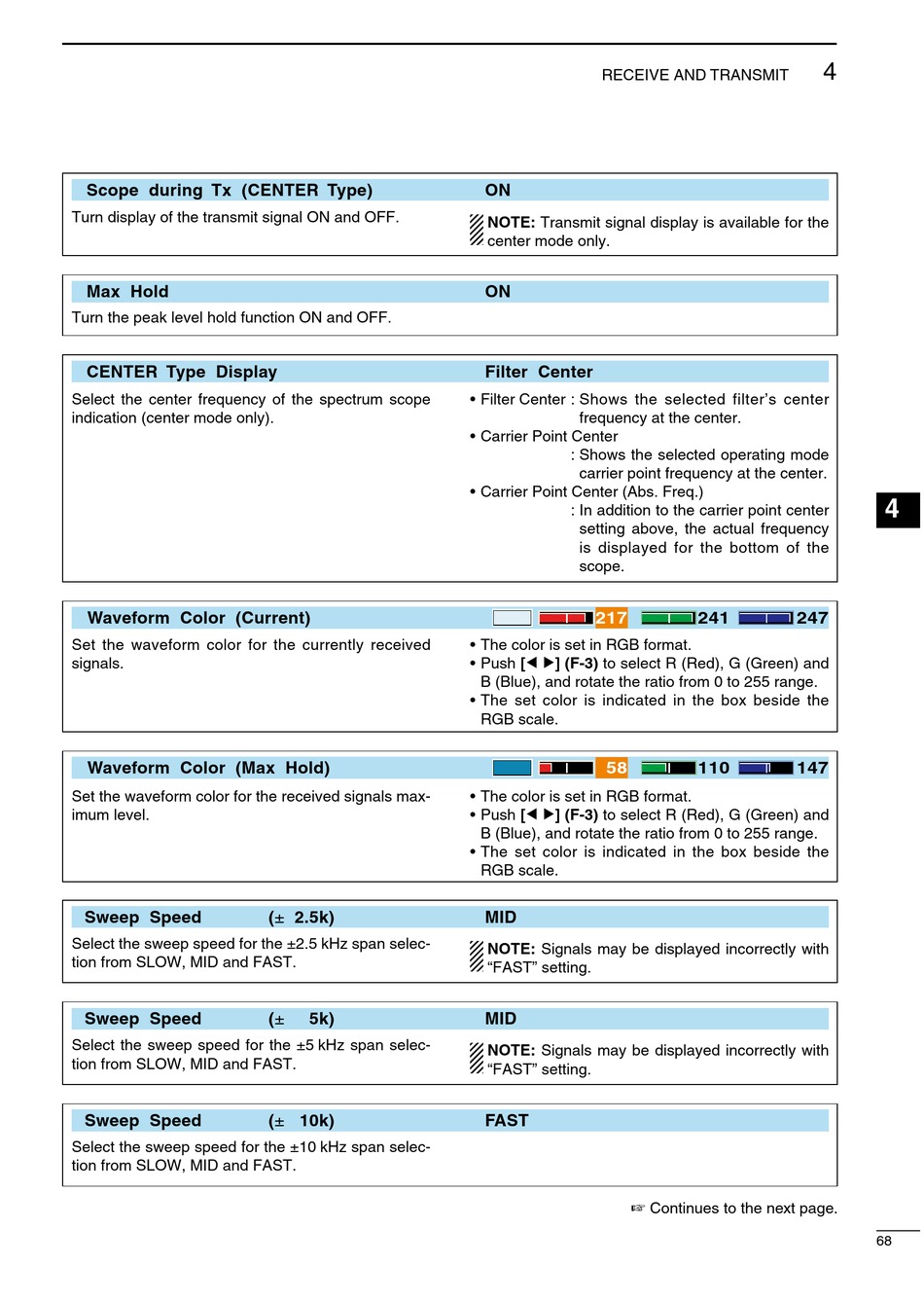

Scope during Tx (CENTER Type)
Turn display of the transmit signal ON and OFF.
Max Hold
Turn the peak level hold function ON and OFF.
CENTER Type Display
Select the center frequency of the spectrum scope
indication (center mode only).
Waveform Color (Current)
Set the waveform color for the currently received
signals.
Waveform Color (Max Hold)
Set the waveform color for the received signals max-
imum level.
Sweep Speed
Select the sweep speed for the ±2.5 kHz span selec-
tion from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±5 kHz span selec-
tion from SLOW, MID and FAST.
Sweep Speed
Select the sweep speed for the ±10 kHz span selec-
tion from SLOW, MID and FAST.
(± 2.5k)
(± 5k)
(± 10k)
RECEIVE AND TRANSMIT
ON
NOTE: Transmit signal display is available for the
center mode only.
ON
Filter Center
• Filter Center : Shows the selected filter's center
frequency at the center.
• Carrier Point Center
: Shows the selected operating mode
carrier point frequency at the center.
• Carrier Point Center (Abs. Freq.)
: In addition to the carrier point center
setting above, the actual frequency
is displayed for the bottom of the
scope.
217
• The color is set in RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the
RGB scale.
58
• The color is set in RGB format.
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and rotate the ratio from 0 to 255 range.
• The set color is indicated in the box beside the
RGB scale.
MID
NOTE: Signals may be displayed incorrectly with
"FAST" setting.
MID
NOTE: Signals may be displayed incorrectly with
"FAST" setting.
FAST
4
241 247
110 147
