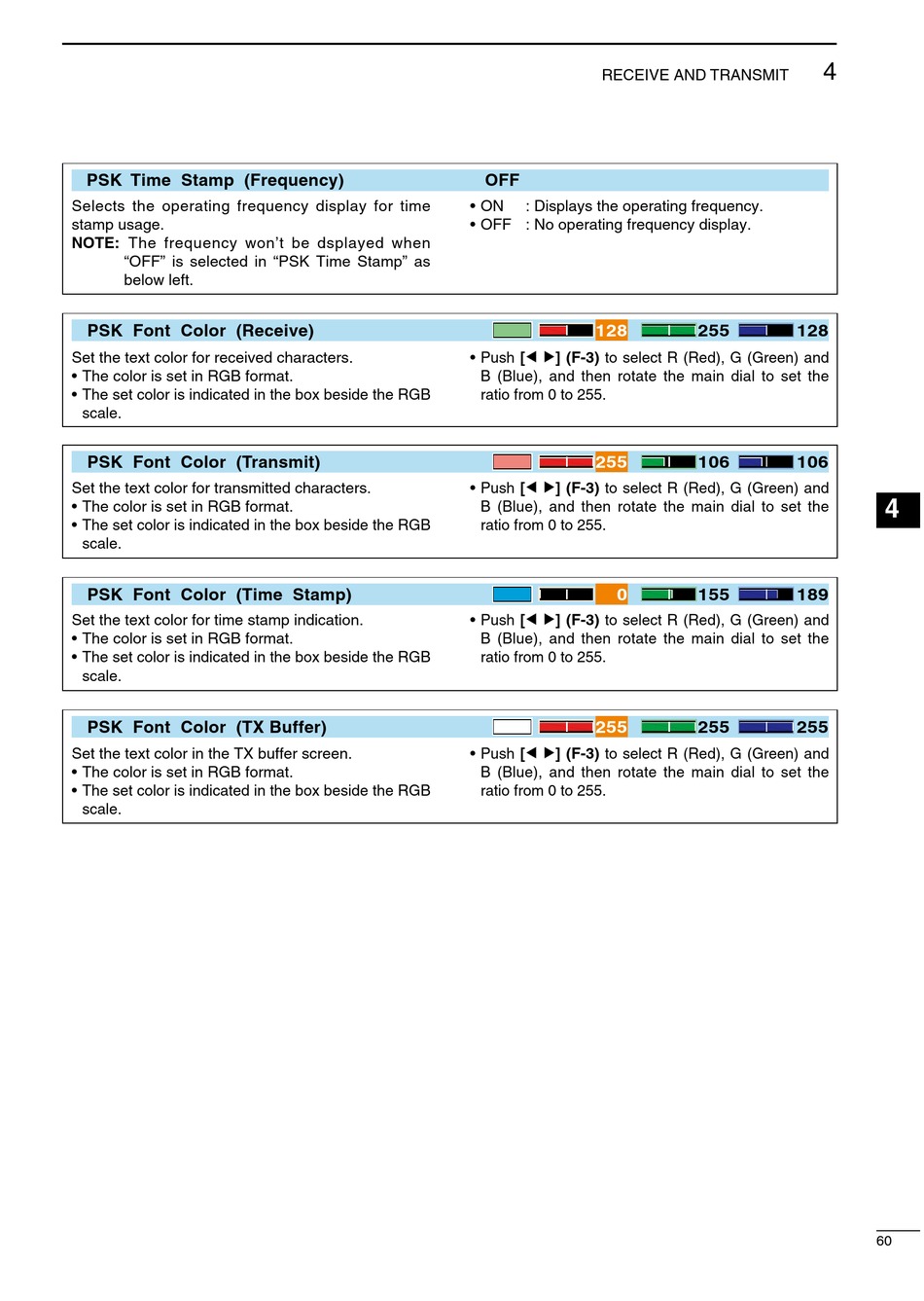

Icom IC-7600 Instruction Manual page 67

PSK Time Stamp (Frequency)
Selects the operating frequency display for time
stamp usage.
NOTE: The frequency won't be d isplayed when
"OFF" is selected in "PSK Time Stamp" as
below left.
PSK Font Color (Receive)
Set the text color for received characters.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (Tran mit)
Set the text color for transmitted characters.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (Time Stamp)
Set the text color for time stamp indication.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
PSK Font Color (TX Buffer)
Set the text color in the TX buffer screen.
• The color is set in RGB format.
• The set color is indicated in the box beside the RGB
scale.
RECEIVE AND TRANSMIT
OFF
• ON : Displays the operating frequency.
• OFF : No operating frequency display.
128
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
255
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
0
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
255
• Push [Ω ≈] (F-3) to select R (Red), G (Green) and
B (Blue), and then rotate the main dial to set the
ratio from 0 to 255.
4
255 128
106 106
155 189
255 255
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
60
