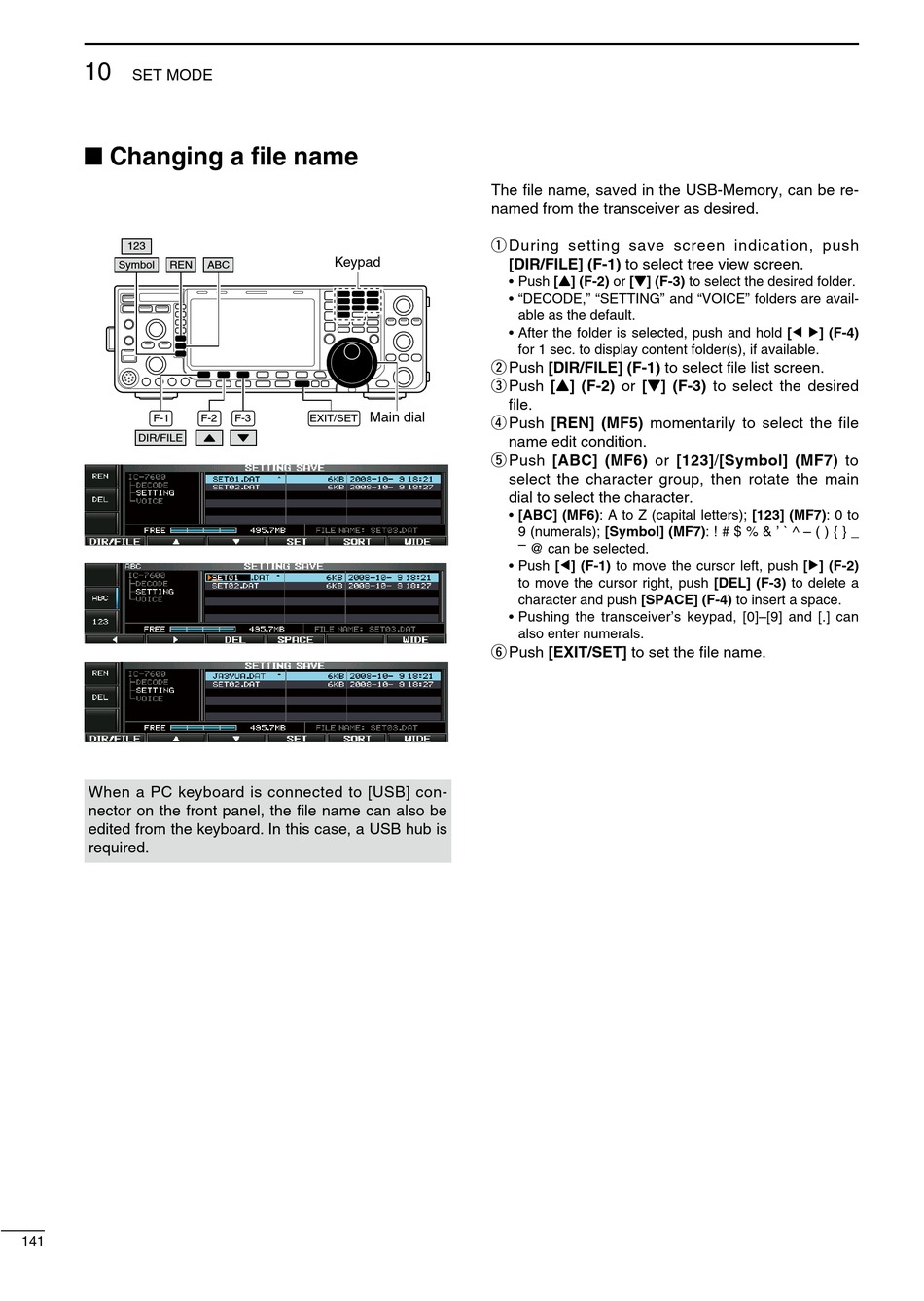

Changing A File Name - Icom IC-7600 Instruction Manual

10
SET MODE
Changing a file name
123
Symbol REN
F-1
DIR/FILE
When a PC keyboard is connected to [USB] con-
nector on the front panel, the file name can also be
edited from the keyboard. In this case, a USB hub is
required.
141
Keypad
ABC
Main dial
F-2 F-3 EXIT/SET
The file name, saved in the USB-Memory, can be re-
named from the transceiver as desired.
q During setting save screen indication, push
[DIR/FILE] (F-1) to select tree view screen.
• Push [Y] (F-2) or [Z] (F-3) to select the desired folder.
• "DECODE," "SETTING" and "VOICE" folders are avail-
able as the default.
• After the folder is selected, push and hold [Ω ≈] (F-4)
for 1 sec. to display content folder(s), if available.
w Push [DIR/FILE] (F-1) to select file list screen.
e Push [Y] (F-2) or [Z] (F-3) to select the desired
file.
r Push [REN] (MF5) momentarily to select the file
name edit condition.
t Push [ABC] (MF6) or [123]/[Symbol] (MF7) to
select the character group, then rotate the main
dial to select the character.
• [ABC] (MF6): A to Z (capital letters); [123] (MF7): 0 to
9 (numerals); [Symbol] (MF7): ! # $ % & ' ` ^ – ( ) { } _
– @ can be selected.
• Push [Ω] (F-1) to move the cursor left, push [≈] (F-2)
to move the cursor right, push [DEL] (F-3) to delete a
character and push [SPACE] (F-4) to insert a space.
• Pushing the transceiver's keypad, [0]–[9] and [.] can
also enter numerals.
y Push [EXIT/SET] to set the file name.
