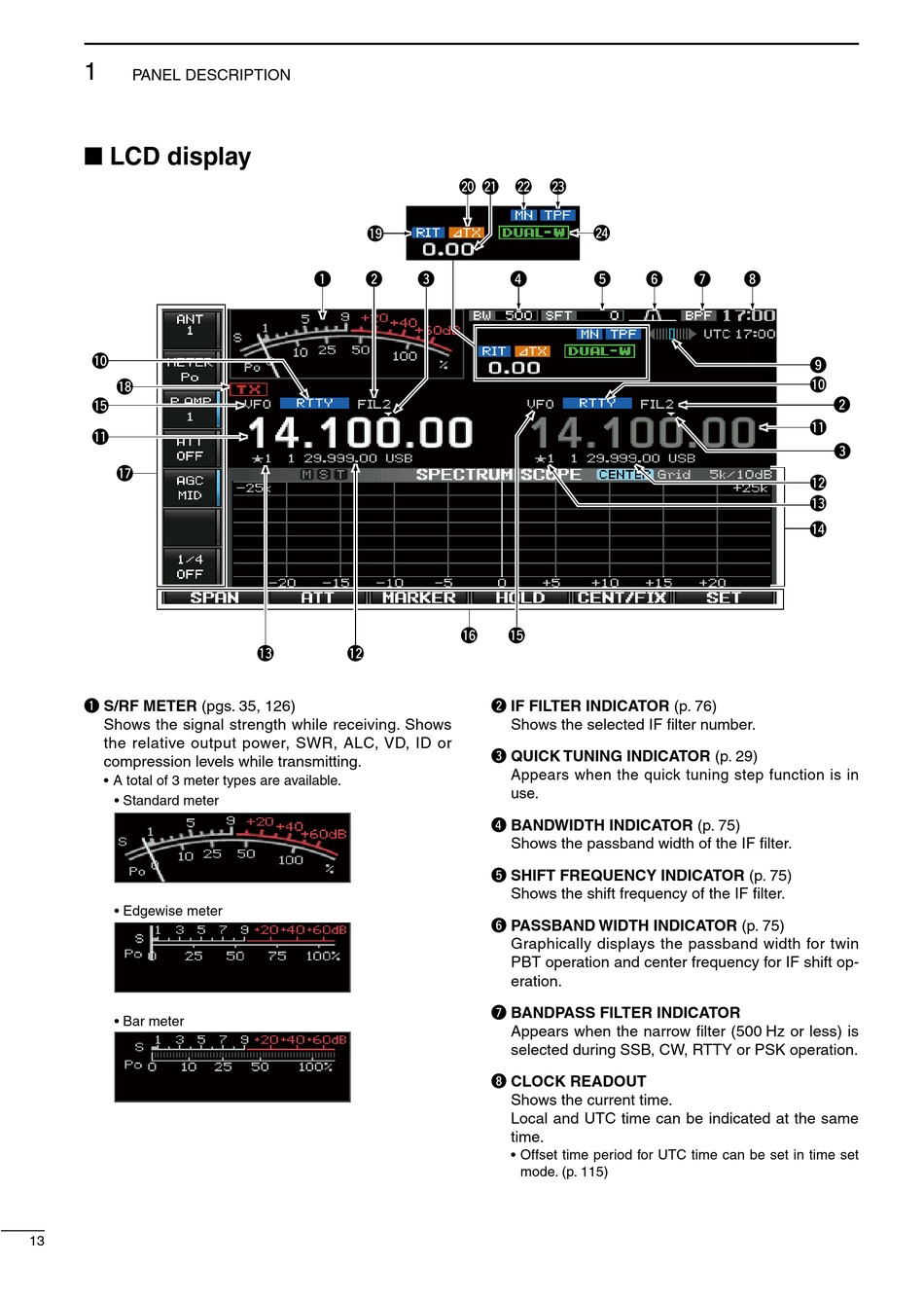

PANEL DESCRIPTION

LCD display

!0
!8
!5
!1
!7
q S/RF METER (pgs. 35, 126)
Shows the signal strength while receiving. Shows
the relative output power, SWR, ALC, VD, ID or
compression levels while transmitting.
• A total of 3 meter types are available.
• Standard meter
• Edgewise meter
• Bar meter
13
!9
q w e
!3 !2
@0 @1 @2 @3
@4
r t
!6 !5
w IF FILTER INDICATOR (p. 76)
Shows the selected IF filter number.
e QUICK TUNING INDICATOR (p. 29)
Appears when the quick tuning step function is in
use.
r BANDWIDTH INDICATOR (p. 75)
Shows the passband width of the IF filter.
t SHIFT FREQUENCY INDICATOR (p. 75)
Shows the shift frequency of the IF filter.
y PASSBAND WIDTH INDICATOR (p. 75)
Graphically displays the passband width for twin
PBT operation and center frequency for IF shift op-
eration.
u BANDPASS FILTER INDICATOR
Appears when the narrow filter (500 Hz or less) is
selected during SSB, CW, RTTY or PSK operation.
i CLOCK READOUT
Shows the current time.
Local and UTC time can be indicated at the same
time.
• Offset time period for UTC time can be set in time set
mode. (p. 115)
y u i
o
!0
!1
!2
!3
!4
w
e
