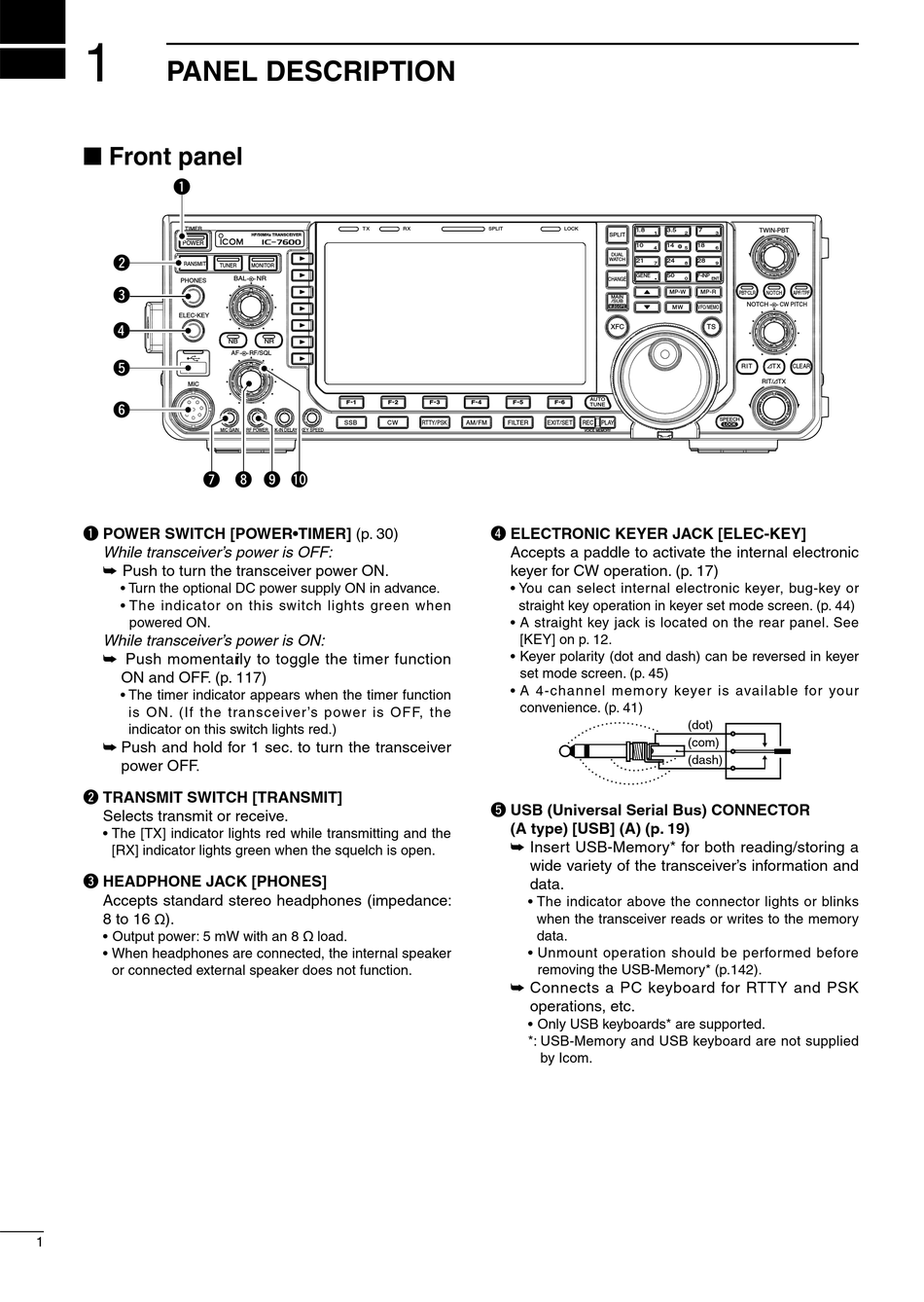

PANEL DESCRIPTION

Front panel

q
TIMER
POWER
w
TRANSMIT
PHONES
e
ELEC-KEY
r
t
MIC
y
u i o !0
q POWER SWITCH [POWER•TIMER] (p. 30)
While transceiver's power is OFF:
Push to turn the transceiver power ON.
• Turn the optional DC power supply ON in advance.
• The indicator on this switch lights green when
powered ON.
While transceiver's power is ON:
Push momentar i ly to toggle the timer function
ON and OFF. (p. 117)
• The timer indicator appears when the timer function
is ON. (If the transceiver's power is OFF, the
indicator on this switch lights red.)
Push and hold for 1 sec. to turn the transceiver
power OFF.
w TRANSMIT SWITCH [TRANSMIT]
Selects transmit or receive.
• The [TX] indicator lights red while transmitting and the
[RX] indicator lights green when the squelch is open.
e HEADPHONE JACK [PHONES]
Accepts standard stereo headphones (impedance:
ø
8 to 16 ).
• Output power: 5 mW with an 8 ø load.
• When headphones are connected, the internal speaker
or connected external speaker does not function.
1
T X
HF/50MHz TRANSCEIVER
TUNER MONITOR
BAL NR
NB NR
AF RF/SQL
F- 1 F- 2
SSB CW
MIC GAIN RF POWER BK-IN DELAY KEY SPEED
RX SPLIT LOCK
F- 3 F- 4 F- 5 F- 6
RTTY/PSK AM/FM FILTER EXIT/SET
r ELECTRONIC KEYER JACK [ELEC-KEY]
Accepts a paddle to activate the internal electronic
keyer for CW operation. (p. 17)
• You can select internal electronic keyer, bug-key or
straight key operation in keyer set mode screen. (p. 44)
• A straight key jack is located on the rear panel. See
[KEY] on p. 12.
• Keyer polarity (dot and dash) can be reversed in keyer
set mode screen. (p. 45)
• A 4-channel memor y keyer is available for your
convenience. (p. 41)
t USB (Universal Serial Bus) CONNECTOR
(A type) [USB] (A) (p. 19)
Insert USB-Memory* for both reading/storing a
wide variety of the transceiver's information and
data.
• The indicator above the connector lights or blinks
when the transceiver reads or writes to the memory
data.
• Unmount operation should be performed before
removing the USB-Memory* (p.142).
Connects a PC keyboard for RTTY and PSK
operations, etc.
• Only USB keyboards* are supported.
*: USB-Memory and USB keyboard are not supplied
by Icom.
