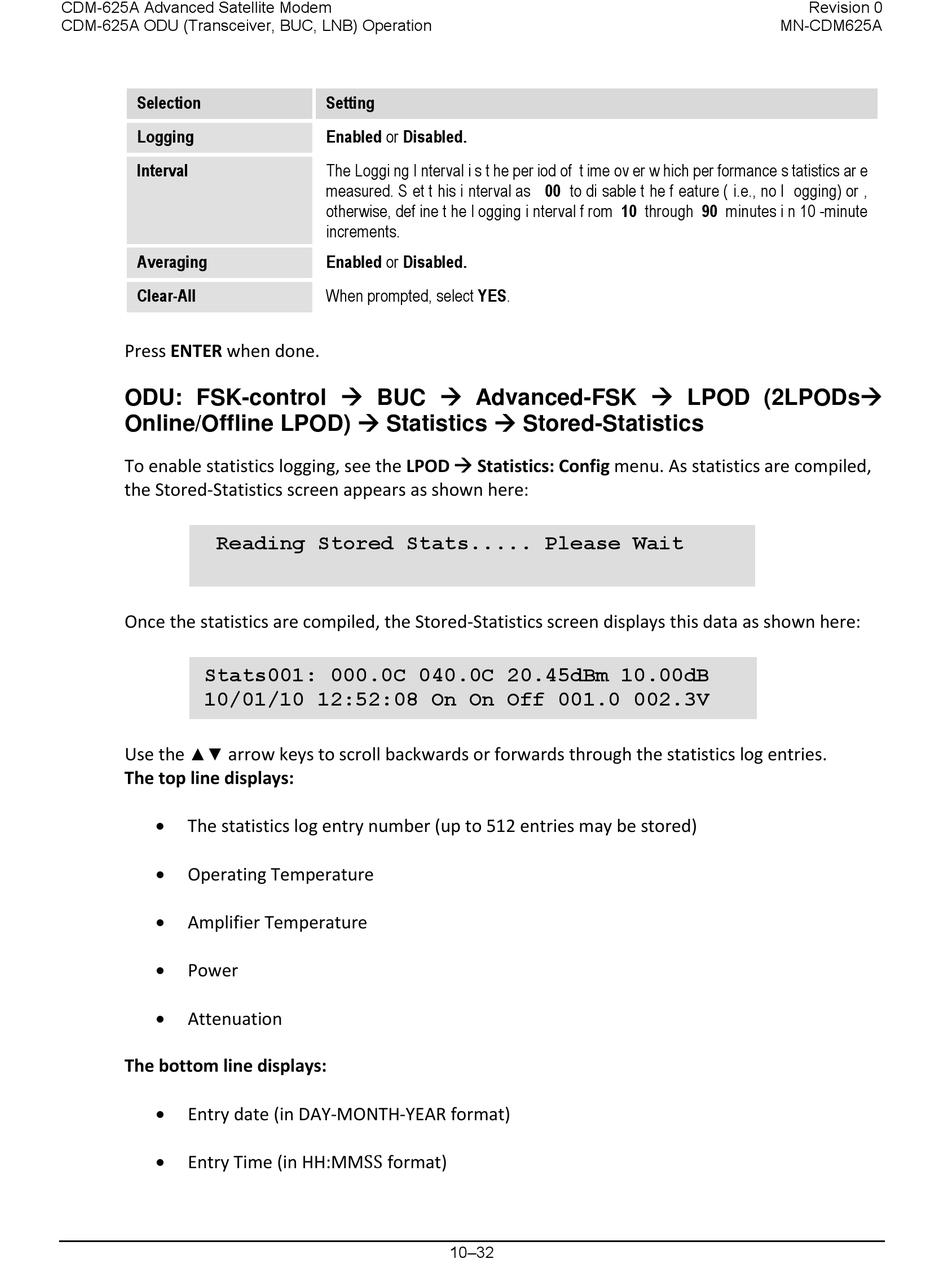

CDM-625A Advanced Satellite Modem
CDM-625A ODU (Transceiver, BUC, LNB) Operation
Selection
Logging
Interval
Averaging
Clear-All
Press ENTER when done.
ODU: FSK-control  BUC  Advanced-FSK  LPOD (2LPODs
Online/Offline LPOD)  Statistics  Stored-Statistics
To enable statistics logging, see the LPOD  Statistics: Config menu. As statistics are compiled,
the Stored-Statistics screen appears as shown here:
Reading Stored Stats..... Please Wait
Once the statistics are compiled, the Stored-Statistics screen displays this data as shown here:
Stats001: 000.0C 040.0C 20.45dBm 10.00dB
10/01/10 12:52:08 On On Off 001.0 002.3V
Use the arrow keys to scroll backwards or forwards through the statistics log entries.
▲▼
The top line displays:
•
The statistics log entry number (up to 512 entries may be stored)
•
Operating Temperature
•
Amplifier Temperature
•
Power
• Attenuation
The bottom line displays:
•
Entry date (in DAY-MONTH-YEAR format)
•
Entry Time (in HH:MMSS format)
Setting
Enabled or Disabled.
The Loggi ng I nterval i s t he per iod of t ime ov er w hich per formance s tatistics ar e
measured. S et t his i nterval as 00 to di sable t he f eature ( i.e., no l ogging) or ,
otherwise, def ine t he l ogging i nterval f rom 10 through 90 minutes i n 10 -minute
increments.
Enabled or Disabled.
When prompted, select YES.
