CDM-625A Advanced Satellite Modem

Ethernet-based Remote Product Management

7.5.3 Web Server Interface – Menu Tree

The CDM-625A Web Server Interface pages in this diagram that are marked with

an asterisk (*) are selectable/operational only when the optional FAST feature is

activated, or when the optional IP Packet Processor card is installed and enabled

and you have logged in with Admin access privileges. See Sect.

information about this conditional access.

Pages marked with double asterisks (**) are operable only when the specified

auxiliary products, such as BUCs or LNBs, are installed.

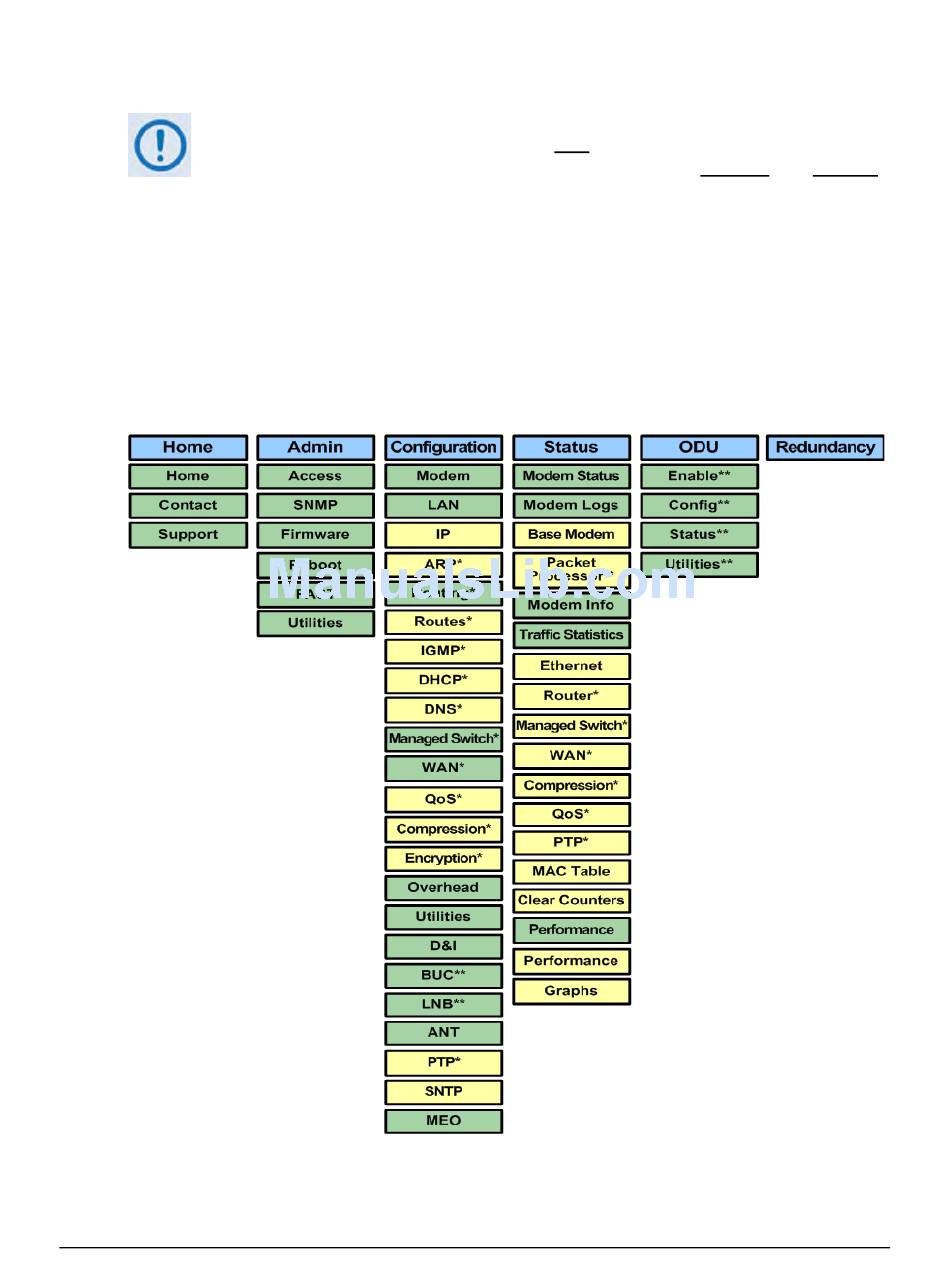

The menu tree diagram (Figure 7-2) lists the features available through the CDM-625A Web

Server (HTTP) Interface. This interface features six navigation tabs (shown in blue). Primary page

tabs (green) and nested page tabs (yellow) provide access to individual Web pages. Click any

navigation tab to continue.

Figure 7-2. CDM-625A Web Server (HTTP) Interface Menu Tree (FW Ver. 1.1.1)

for detailed
