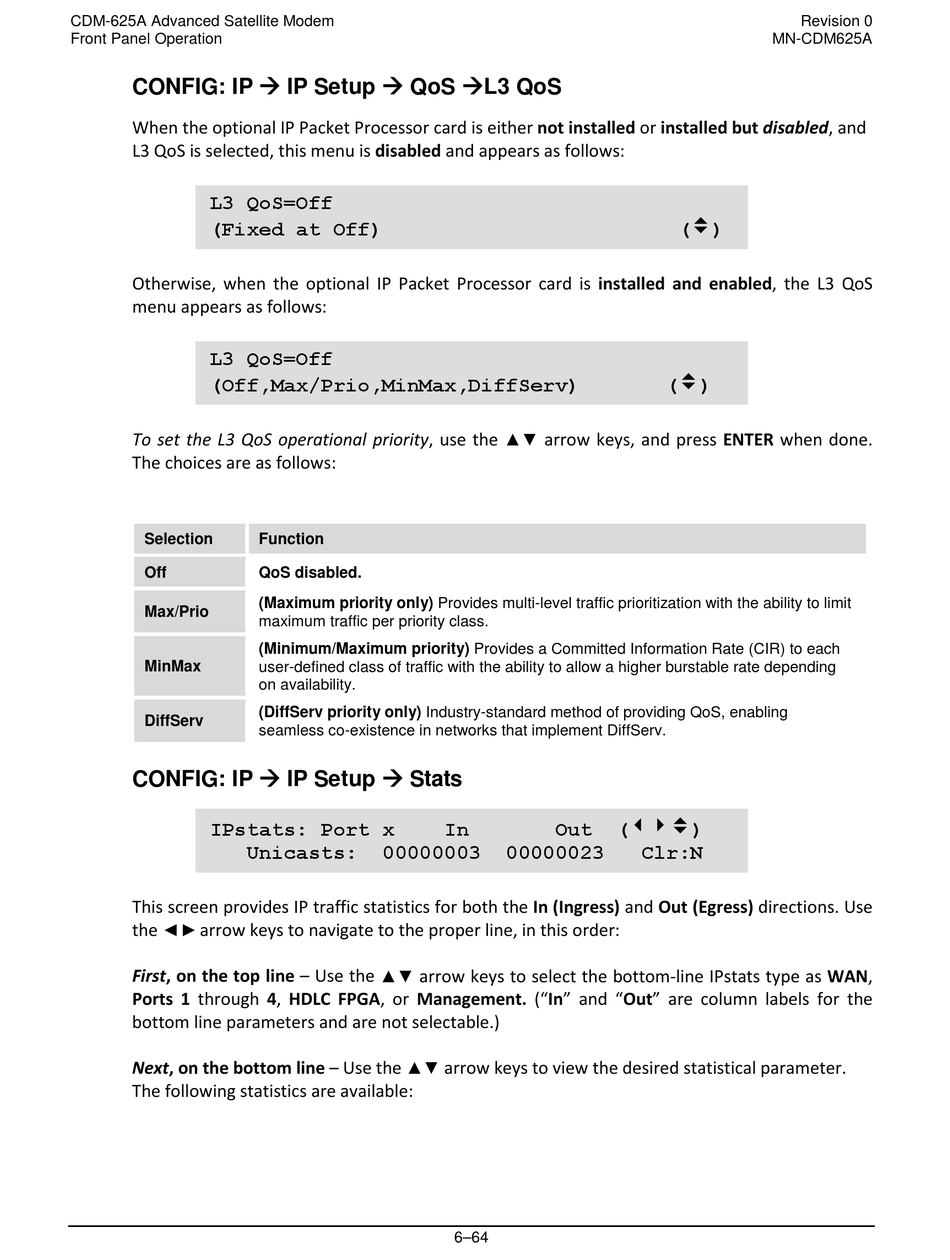

Comtech EF Data CDM-625A Installation And Operation Manual page 172

CDM-625A Advanced Satellite Modem
Front Panel Operation
CONFIG: IP  IP Setup  QoS L3 QoS
When the optional IP Packet Processor card is either not installed or installed but disabled, and
L3 QoS is selected, this menu is disabled and appears as follows:
L3 QoS=Off
(Fixed at Off)
Otherwise, when the optional IP Packet Processor card is installed and enabled, the L3 QoS
menu appears as follows:
L3 QoS=Off
(Off,Max/Prio,MinMax,DiffServ)
To set the L3 QoS operational priority, use the
The choices are as follows:
Selection
Off
Max/Prio
MinMax
DiffServ
CONFIG: IP  IP Setup  Stats
IPstats: Port x
Unicasts:
This screen provides IP traffic statistics for both the In (Ingress) and Out (Egress) directions. Use
the ◄ ► arrow keys to navigate to the proper line, in this order:
First, on the top line – Use the
Ports 1 through 4, HDLC FPGA, or Management. ("In" and "Out" are column labels for the
bottom line parameters and are not selectable.)
Next, on the bottom line – Use the
The following statistics are available:
Function
QoS disabled.
(Maximum priority only) Provides multi-level traffic prioritization with the ability to limit
maximum traffic per priority class.
(Minimum/Maximum priority) Provides a Committed Information Rate (CIR) to each
user-defined class of traffic with the ability to allow a higher burstable rate depending
on availability.
(DiffServ priority only) Industry-standard method of providing QoS, enabling
seamless co-existence in networks that implement DiffServ.
00000003
arrow keys to select the bottom-line IPstats type as WAN,
▲▼
▲▼
arrow keys, and press ENTER when done.
▲▼
In Out ()
00000023
arrow keys to view the desired statistical parameter.
6–64
Revision 0
MN-CDM625A
()
()
Clr:N
