RS-232 and RS-422 Remote Connections

The DXP switchers have two serial ports through which the DXPs can be configured via SIS
commands (serial commands that control the switcher through this connector).
Remote RS232/RS422 port (rear panel)

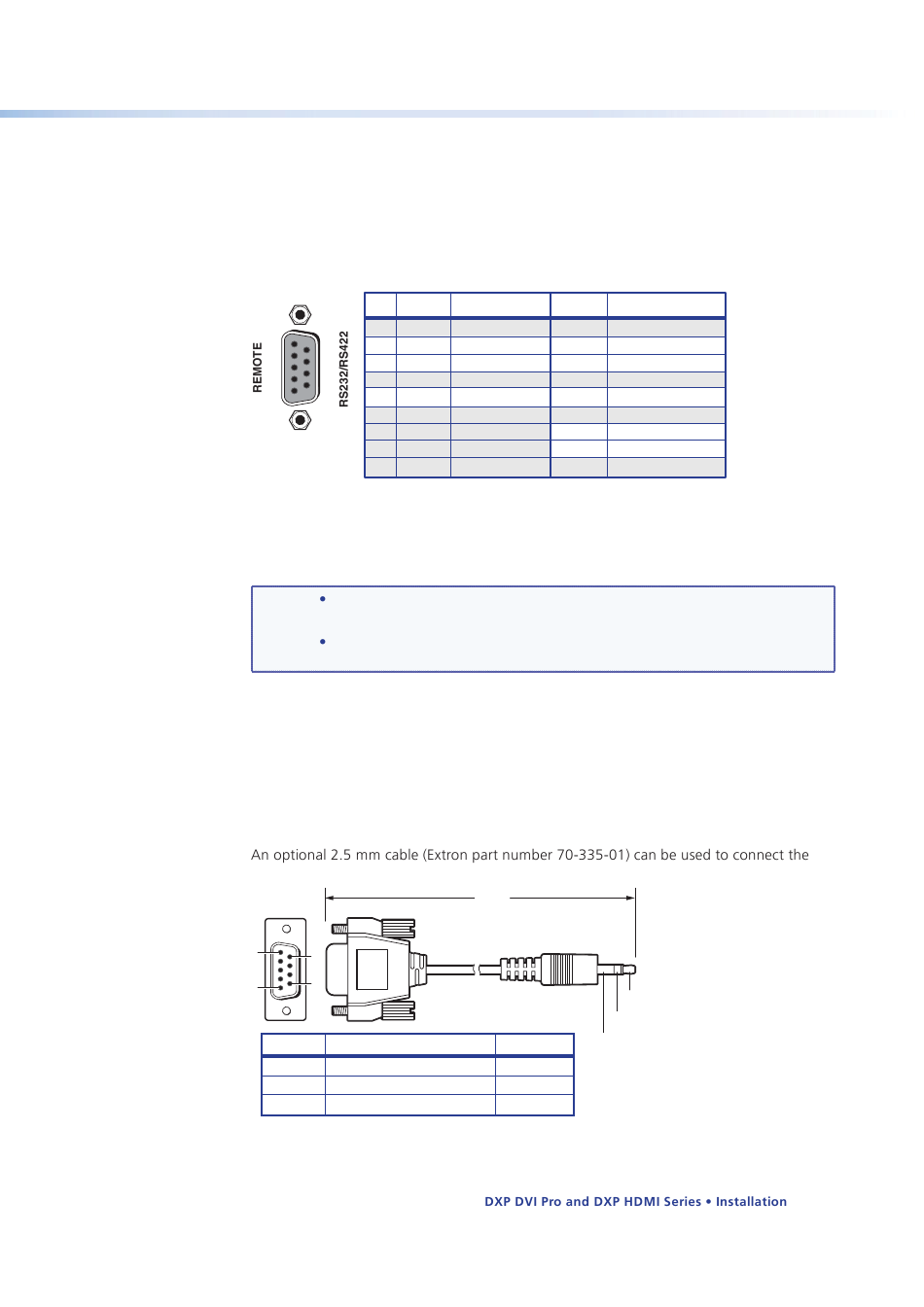

The following figure shows the pin assignments for the Remote RS232/RS422 connector.
1
5
Figure 8.
See the "SIS Configuration and
the SIS commands and the
on how to install and use the control software.
NOTES:
If desired, you can connect an MKP 2000 or MKP 3000 remote control panel to this port.
See the user guide of either product for details.
RS-232 Config port (front panel)
The Config port is an additional RS-232 connector, located on the front panel. A host
device can be connected to this port for serial RS-232 control only. Protocol for the port is
the same as for the rear panel Remote RS232/RS422 port: 9600 baud, 8 data bits, 1 stop
bit, no parity, and no flow control.
DXP to your computer. The figure below shows the pin assignments for this cable.
1
6
6
9
9
5
9-pin D
Pin 2
Pin 3
Pin 5
Figure 9.
Pin RS-232 Function
1 — Not used
2 Tx Transmit data
6
3 Rx Receive data
4 — Not used
9
5 Gnd Signal ground
6 — Not used
7 — Not used
8 — Not used
9 — Not used
Remote RS232/RS422 Connector Pin Assignments
Control" section, starting on page 47, for definitions of
"Matrix Software" section, starting on page 70, for details
The switcher can support either the RS-232 or RS-422 serial communication
protocol, and operate at 9600, 19200, 38400, or 115200 baud rate.
See "Selecting the RS-232/RS-422 Protocol and Baud Rate (Rear
Panel)" on page 42 to configure this port using the front panel buttons.
6 feet
(1.8 m)
Part #70-335-01
Connection
Computer Rx line
Computer Tx line
Computer signal ground
2.5 mm Connector Cable for the Configuration Port
RS-422 Function
— Not used
Tx– Transmit data (–)
Rx– Receive data (–)
— Not used
Gnd Signal ground
— Not used
Rx+ Receive data (+)
Tx+ Transmit data (+)
— Not used
Tip
Ring
Sleeve (Gnd)
TRS Plug
Tip
Ring
Sleeve
