REMOTE CONTROL

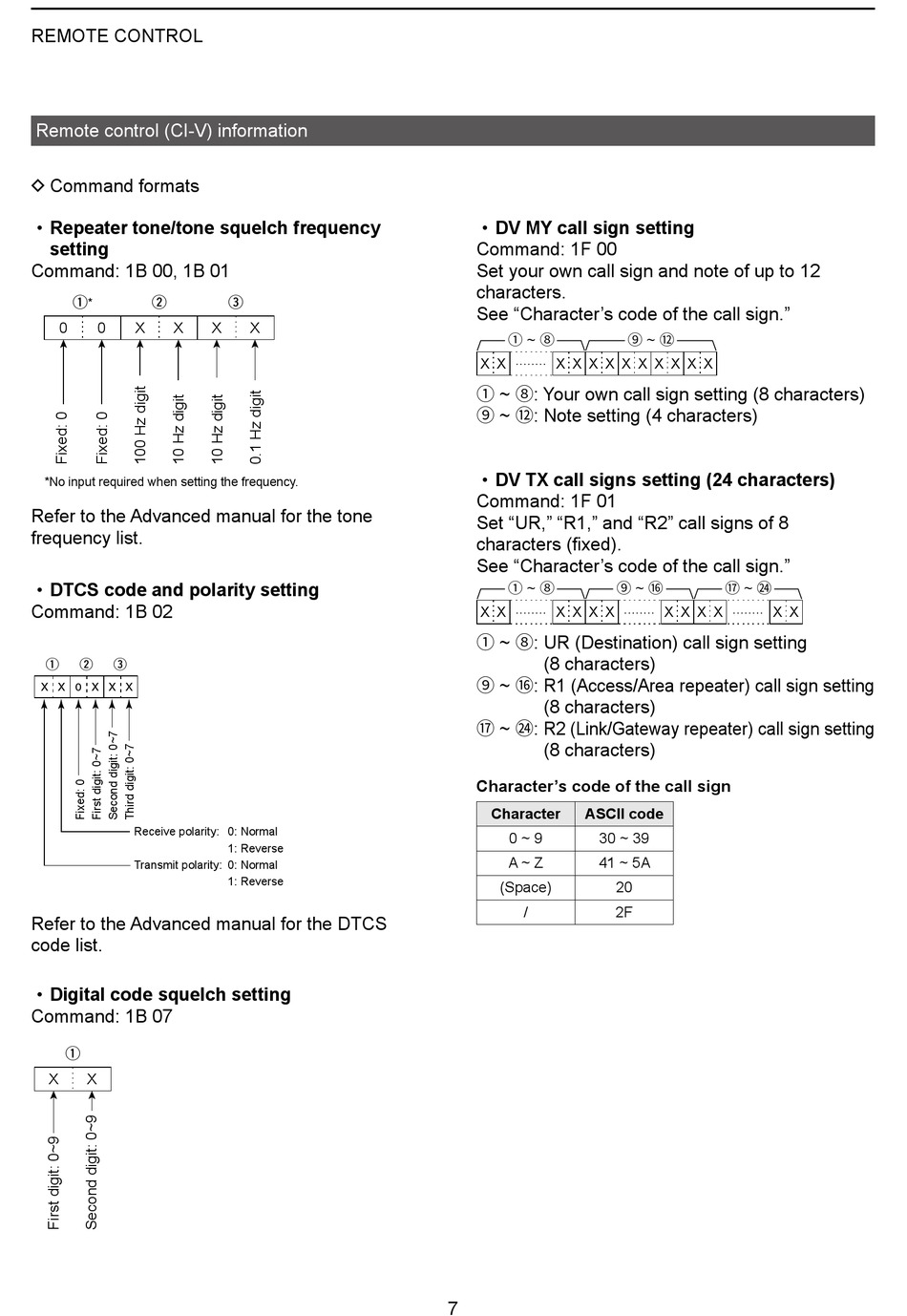

Remote control (CI-V) information
D Command formats

• Repeater tone/tone squelch frequency

setting

Command: 1B 00, 1B 01
q * w
0 0 X X
*No input required when setting the frequency�
Refer to the Advanced manual for the tone
frequency list�

• DTCS code and polarity setting

Command: 1B 02
q w e
X X 0 X X X
Receive polarity: 0: Normal
Transmit polarity: 0: Normal
Refer to the Advanced manual for the DTCS
code list�

• Digital code squelch setting

Command: 1B 07
q
X X
e
X X
1: Reverse
1: Reverse

• DV MY call sign setting

Command: 1F 00
Set your own call sign and note of up to 12
characters�
See "Character's code of the call sign�"
1 ~ 8
X X X X X X X X X X X X
∙∙∙∙∙∙∙∙
1 ~ 8: Your own call sign setting (8 characters)
9 ~ 12: Note setting (4 characters)

• DV TX call signs setting (24 characters)

Command: 1F 01
Set "UR," "R1," and "R2" call signs of 8
characters (fixed)�
See "Character's code of the call sign�"
1 ~ 8 9 ~ 16
X X ∙∙∙∙∙∙∙∙ X X X X
1 ~ 8: UR (Destination) call sign setting
(8 characters)
9 ~ 16: R1 (Access/Area repeater) call sign setting
(8 characters)
17 ~ 24: R2 (Link/Gateway repeater) call sign setting
(8 characters)
Character's code of the call sign
Character ASCII code
0 ~ 9 30 ~ 39
A ~ Z 41 ~ 5A
(Space) 20
/ 2F
7
9 ~ 12
17 ~ 24
∙∙∙∙∙∙∙∙ X X X X ∙∙∙∙∙∙∙∙ X X
