Keys - Merging Pyramix 4.3 User Manual

• Black on Background
• White on Background
Large
When checked the TimeCode display will be the larger of the two possible sizes.
Head Switch Filter
When checked, the clamp circuit ignores head-switch transients and horizontal sync during the last six
to seven lines before the vertical front porch. Otherwise, the clamp circuit responds as always.
Burn-in Location
Simply drag the video burn-in window to the desired location within the color bars screen.

Keys

Information only. Nothing can be changed here. Shows the Keys which are validated and the date they
are validated to.

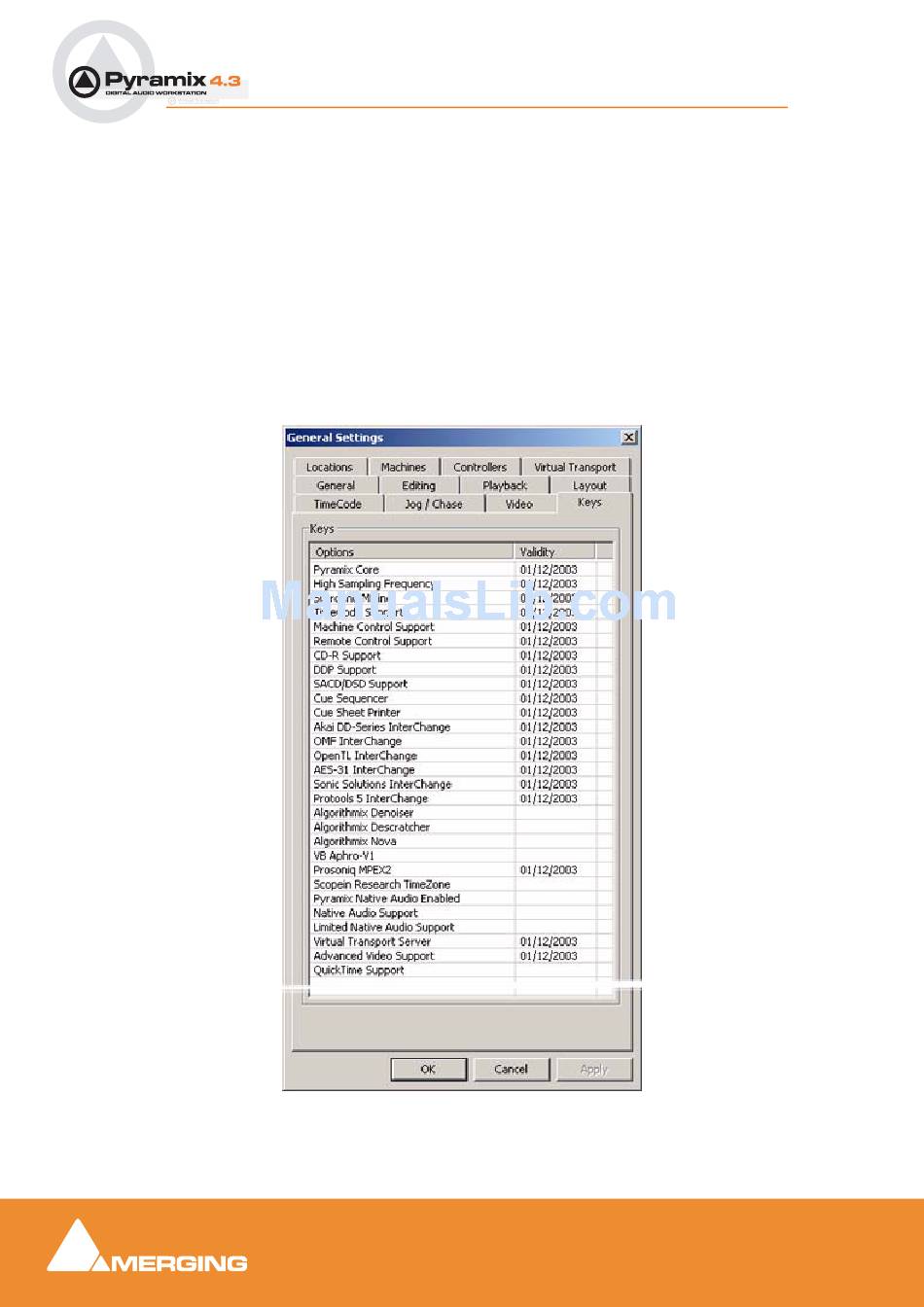

General Settings dialog box - Keys Tab page
User Manual : General Settings
User Manual
99
