Using the Mixer

Mixer Components

Basic Strip

Basic Strip

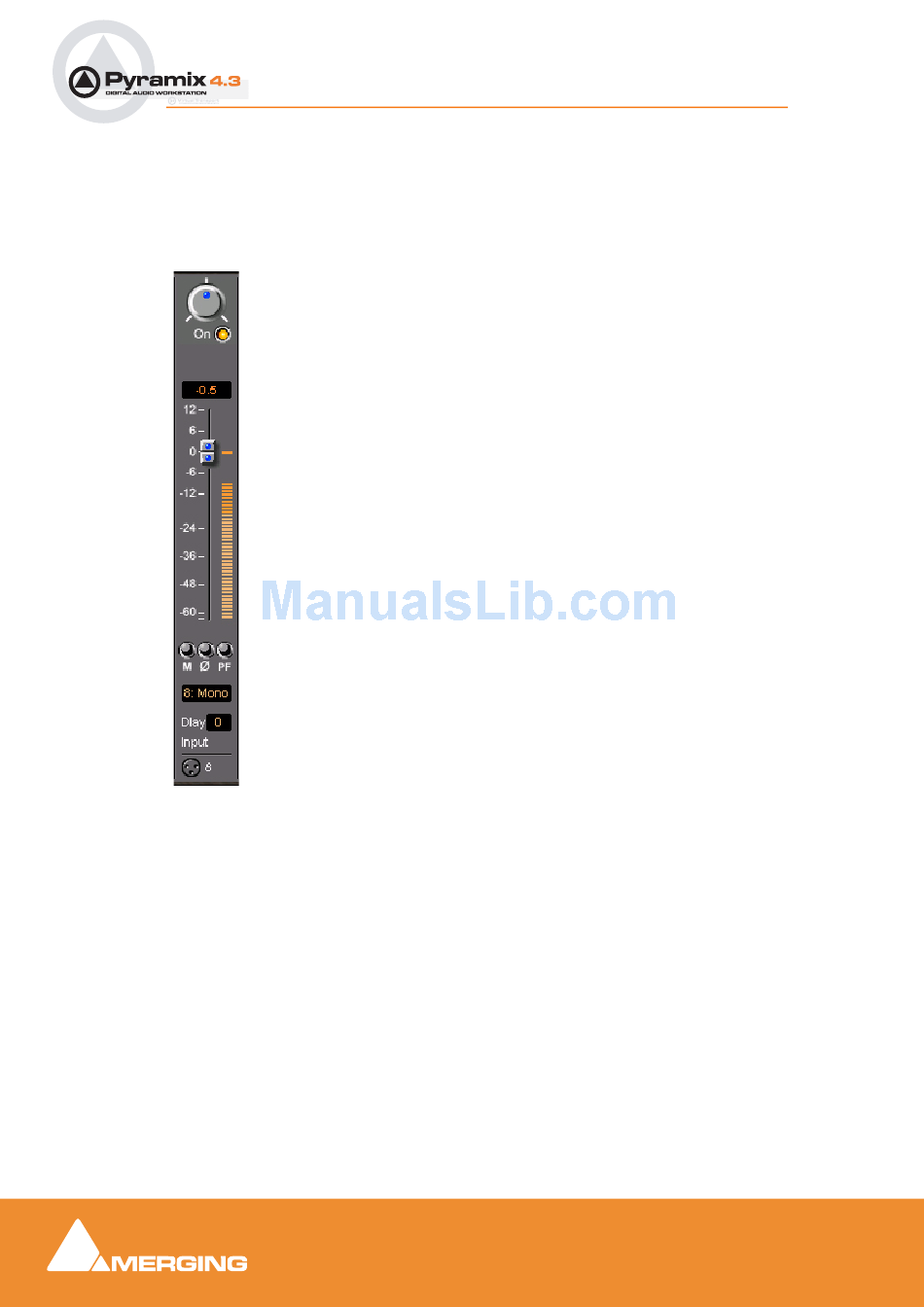

A basic mono channel strip contains:
Output bus send level / pan pot and On /Off switch. The number and type of these is
dependent on the number and type of busses specified. Here there is just a single stereo
mix bus.
Numeric display of held peak level value if fader is at unity, otherwise shows fader posi-
tion value and may be clicked to directly enter a value. If cursor is over pan pot shows cur-
rent pan position.
Graphic display of held peak level value.
Level Bargraph
Rotary Controls and Faders
Rotary Controls and Faders may be adjusted by grabbing them with the mouse and drag-
ging. Rotary controls are adjusted by dragging left or right and faders by dragging up or
down. Double clicking a Fader or Rotary knob returns the value to the default. E.g. unity
gain on a channel strip fader.
Buttons
Buttons on the main mixer surface are grey and appear to stand proud of the surface
when inactive. When active they 'light up' and appear to be flush with the surface.
Delay
A delay value (in samples) can be set in this box.
Physical Input Assignment
Right-click on the XLR icon to pop-up a drop down list of valid assignments. (When in
Configure mode)
