Delay Compensation - Merging Pyramix 4.3 User Manual

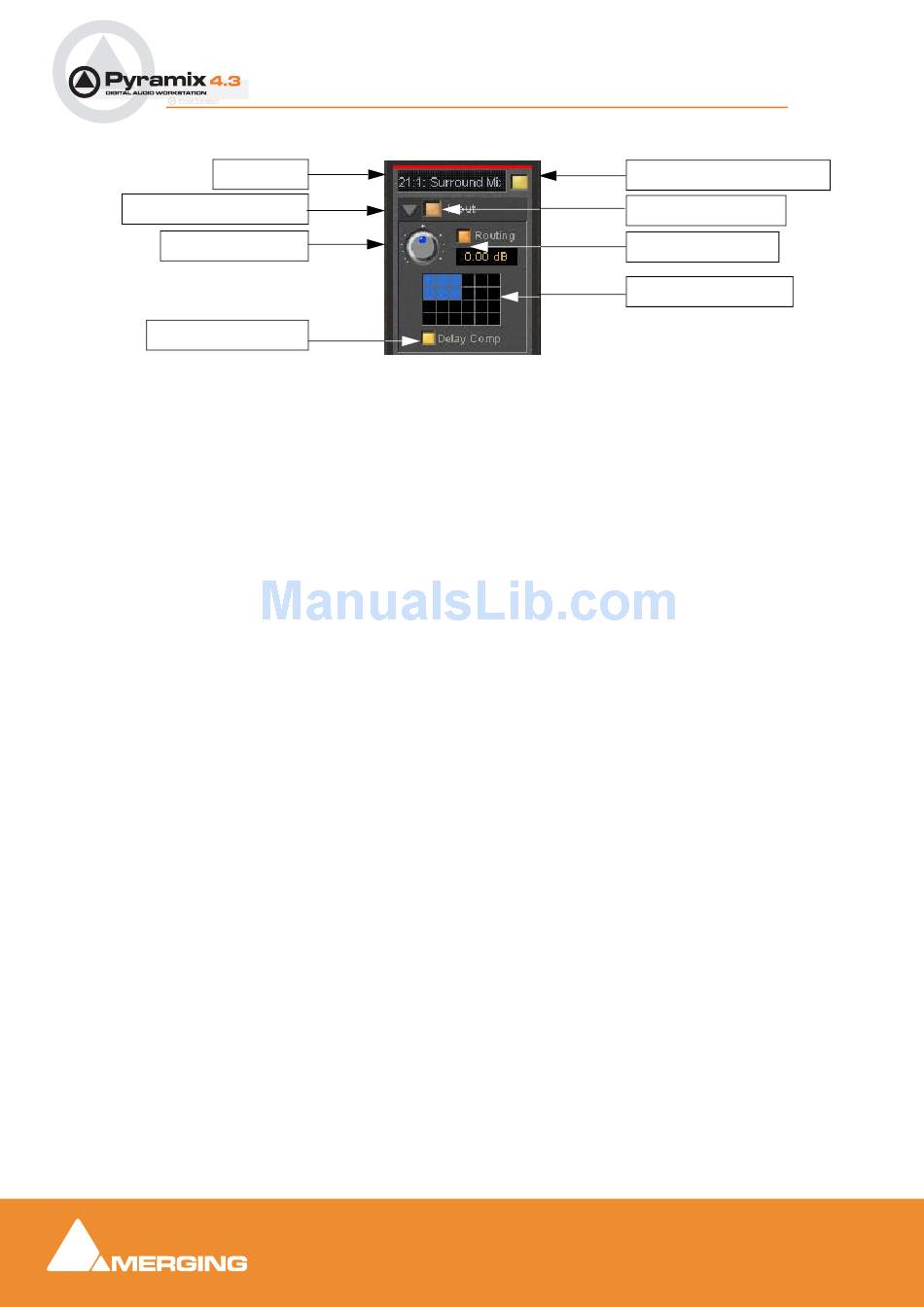

Main and Input Level Section
Strip Name
Show/Hide Input Section
Input Level Control

Delay Compensation

Strip Name
Activate/Deactivate Plug-in
Show/Hide input Section
Input Section On/Off
Input level control
Adjusts the input level over a range of -48 dB to +48 dB.
Show/hide Routing
By default Routing buttons are hidden. This button toggles between Showing and Hiding the Routing
Buttons. Routing remains active when hidden.
Routing Button Matrix
The buttons determine which audio channels running through the Bus will be processed by the plug-in.
The number of buttons shown depends on the number of channels controlled by the Bus. In the case of
a multiple surround Bus this may be up to 64. A single instance of Bus Tools can process up to 8 chan-
nels selected from this matrix.
A 5.1 surround bus will have six buttons. The order of the channels selected by the buttons is (from left
to right): Left, Center, Right, Left Surround, Right Surround, Subwoofer.
This enables, for example, the Left, Center and Right channels of a surround Bus to be independently
processed from the surround channels by adding two Bus Tools plug-ins to the Bus and selecting L, C,
R in the first and LS and RS in the second.
Using Bus Tools on multiple surround busses
Although a single instance of Bus Tools can process 8 channels it is simple to use multiple instances to
process many more with linked parameters. E.g. with four surround Busses you could use 3 instances.
Assign the L & R channels of each Bus to Bus Tools A, the Centers of each bus to Bus Tools B and the
Surround Ls and Rs of each Bus to Bus Tools C. The 3 Bus Tools can then be linked as you wish by
right-clicking and creating control groups in the yellow matrix. If Delay Compensation (see below) is
activated all channels will remain time-aligned, even when using Pre-Anticipation.
Delay Compensation
Delay Compensation
When the DRC section is active, the plug-in introduces a small delay to the audio signal. Since some
signals of a bus may not be selected for processing using the routing buttons, these signals would not
be delayed, and there would be a time misalignment at the output of the bus. When Delay Compensa-
User Manual : Strip and Bus Tools - Plug-ins
Activate/De-activate Plug-in
Input Section On/Off
Show/Hide Routing
Routing Button Matrix
