VU-Meter controls

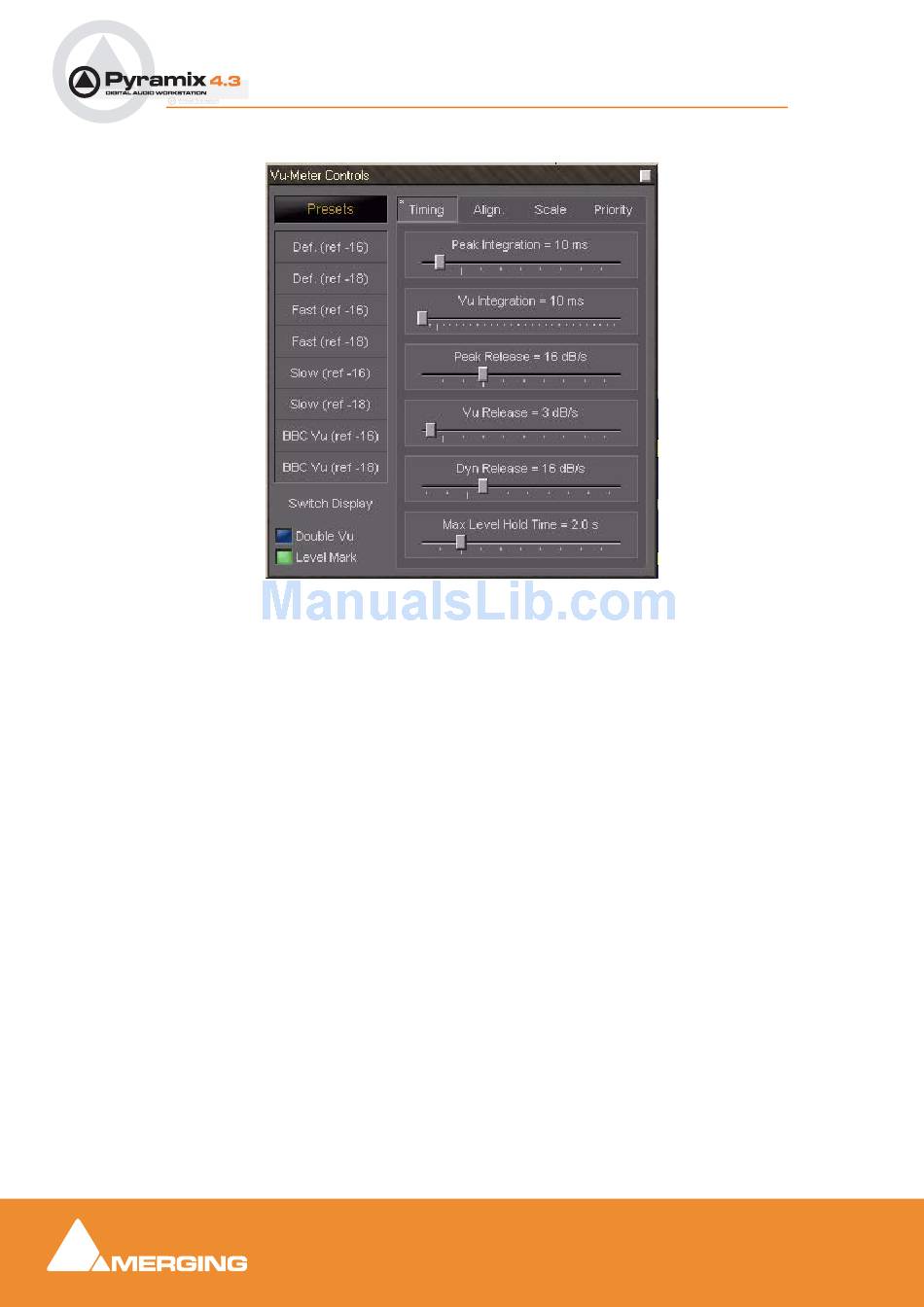

Vu-Meter Controls Timing floating Window
Most of the display parameters of the VU-meter can be adjusted individually. Click with the right mouse
button anywhere on the VU-meter to display a dialog allowing to control almost any parameters of the
VU-meter.
The left side of the control window contains global settings and several predefined presets, while the
right side has four Tab panels.
Switch Display
Clicking on this area cycles through VU, PEAK and BOTH.
Double VU
When this button is lit, the peak meter switches to VU characteristics, thus enabling you to run 2 VU-
meters with different settings at the same time.
Level Mark
When lit this inserts a gray bar into the meter display at your desired "nominal" level. When the input
signal exceeds the mark level, the bar will become light green.
