Machine Properties
When the Machine Properties dialog is opened by the Add button, the Name, Protocol and Port dis-
plays are blank. When the dialog is opened by the Properties button the displays reflect the name etc.
for the selected machine.
Name
Displays the name of the current selected machine. When adding a new machine, type a suitable name
here.
Protocol
Displays the current interface protocol from the choice of MMC (MIDI Machine Control) or Sony (9-pin
P2 protocol) in the drop-down list.
Properties
Opens the Sony 9 - Pin Protocol Configuration dialog box (see below) when SONY is selected.
There are currently no options for MMC
Port
Displays the current Port used for machine control from the choice of COM422 or MIDI in the drop-
down list.
Settings
Inhibit Video Record
When checked prevents record arming of video in order to ensure video cannot be accidently overwrit-
ten.
Pre Roll
Shows the current Pre Roll time for the external machine. Type in the box to change the value.
Post Roll
User Manual : General Settings

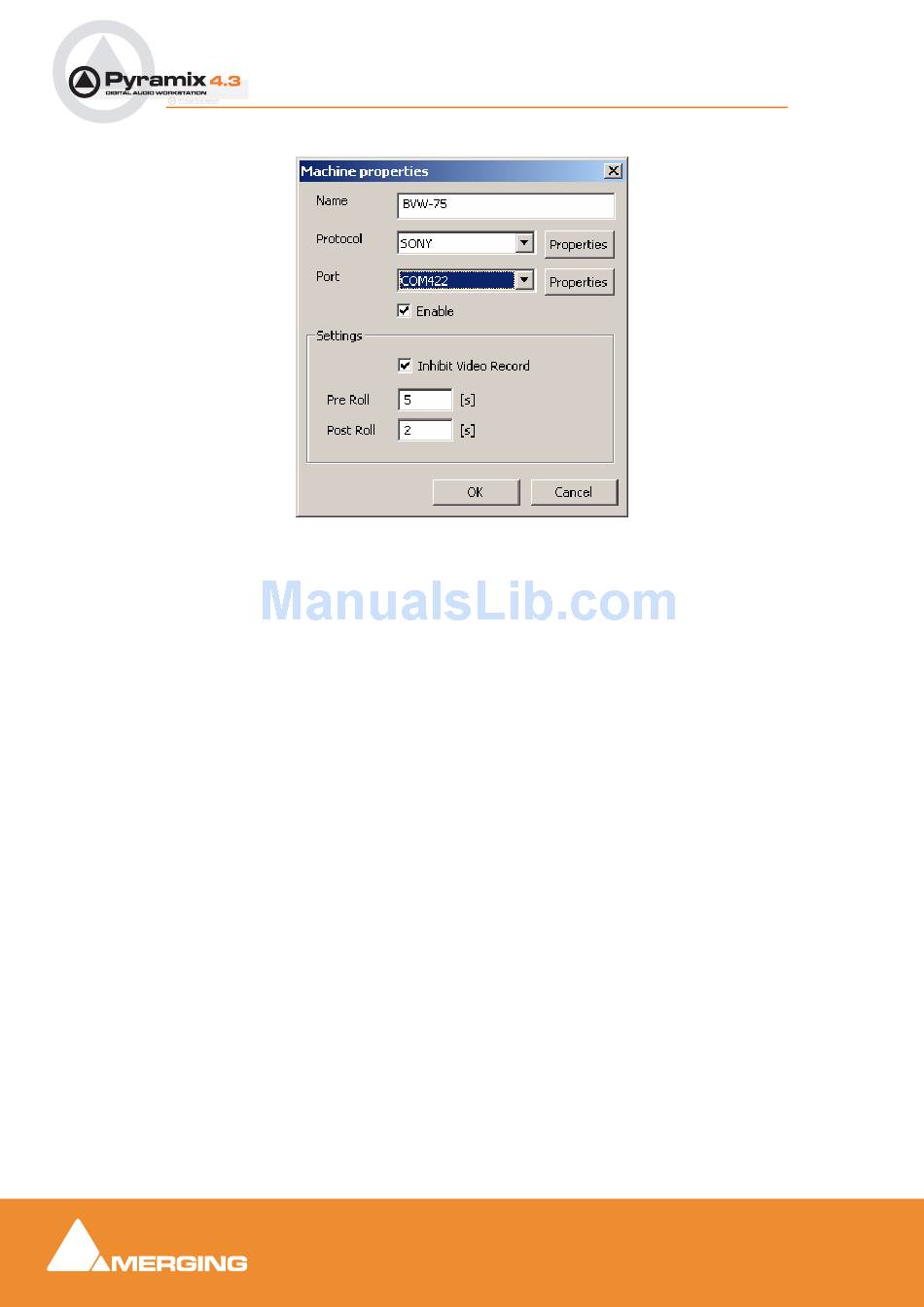

Machine Properties dialog
