The legend for this display is as follows:
Process
Gate
Expander
Linear
Compressor 1
Compressor 2
Limiter
Reference
Adjusting Dynamics Parameters
Parameters can be altered by clicking and dragging on the control knobs or by clicking and dragging the
control handles in the graphic display. Handle controls are affected by other parameter settings. In
some instances dragging a handle will change more than one parameter.
Dancing Star Real-time Response Indicator
A red "dancing star" inside the graphic display gives a useful indication of how the processor is affecting
program material. It shows the output level in real-time when signal is present at the inputs.

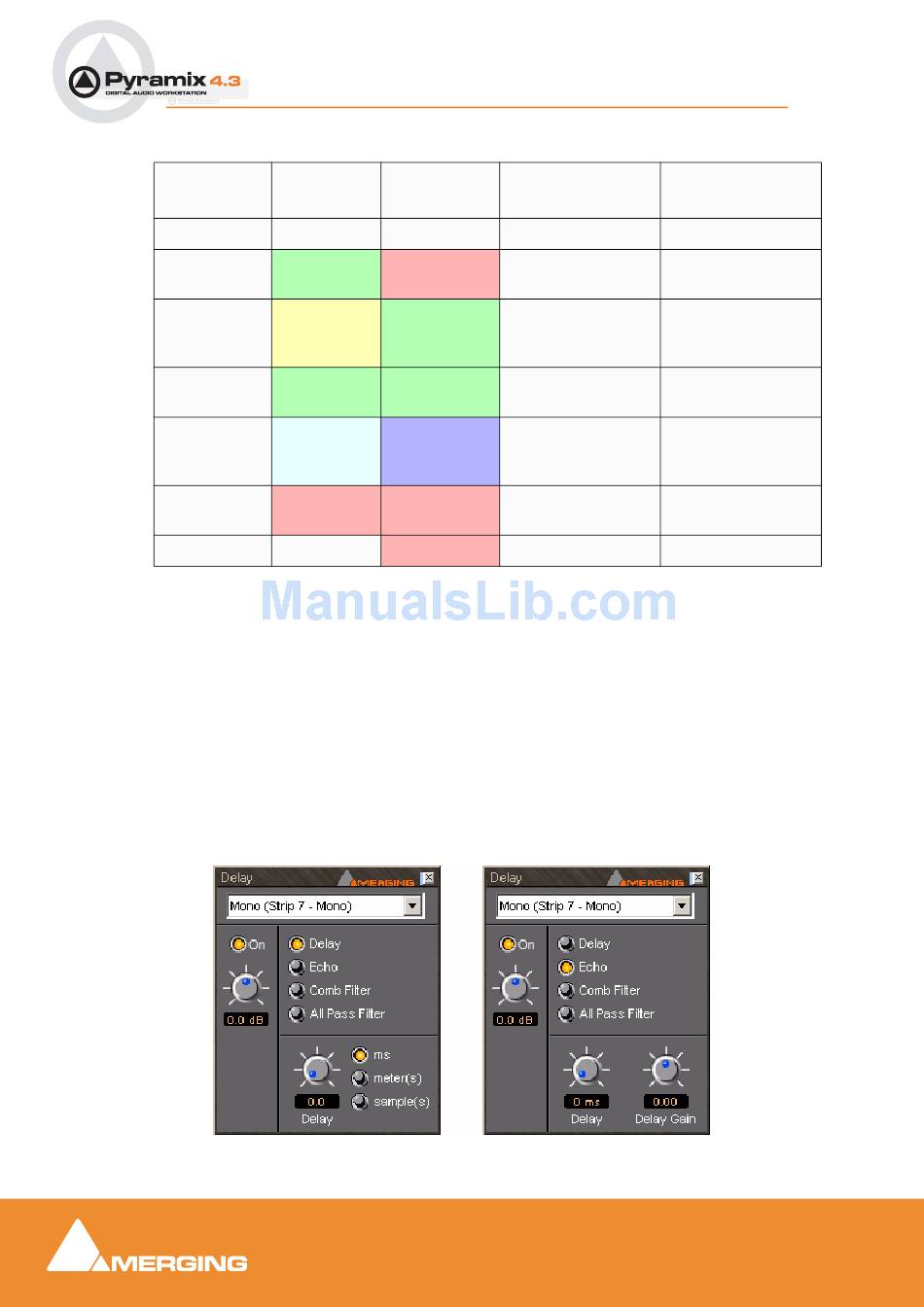

Delay

The delay Plug-in provides four delay-based effects. 'Plain-vanilla' Delay, Echo, Comb Filter and All
Pass Filter. The interface is slightly different when Delay is selected.
Line Color Handle Color
Red ***
Green Red
Yellow Green
Green Green
Blue-Gray Blue
Red Red
Red
Line Slope
Handle Function
Function
Gate on/off ***
Expander Ratio Gate Threshold,
Expander Ratio
Linear response Expander Threshold
between Expander
and Compress 1
Compressor 1 Ratio Compressor 1
Threshold
Compressor 2 Ratio Compressor 2
Threshold, Com-
pressor 1 ratio
Shows Limit Limiter Threshold,
Compressor 2 Ratio
*** Limiter Threshold
Delay floating Windows
User Manual : Plug-Ins
