Video; Burn-In Window - Merging Pyramix 4.3 User Manual

Video

If you are using the video sync input/output features of Pyramix, select the Video Tab to configure the
video standard or format (e.g. NTSC, PAL or one of the supported HD formats). You can also enable or
disable a visible time code burn-in window on the Pyramix video output for standard PAL / NTSC for-
mats.
General
These controls are for setting the general format of the Video Sync signal.
Format
Shows the current video format. The drop-down list offers a choice of PAL, NTSC and a wide variety of
TriLevel HD (high-definition) formats.

Burn-in Window

Mykerinos boards can burn-in a Time-code display window into a composite video input signal.
Enable
When checked the TimeCode overlay is displayed
Color
Shows the current display scheme. The drop-down list offers a choice of:
• White on Black
• Black on White

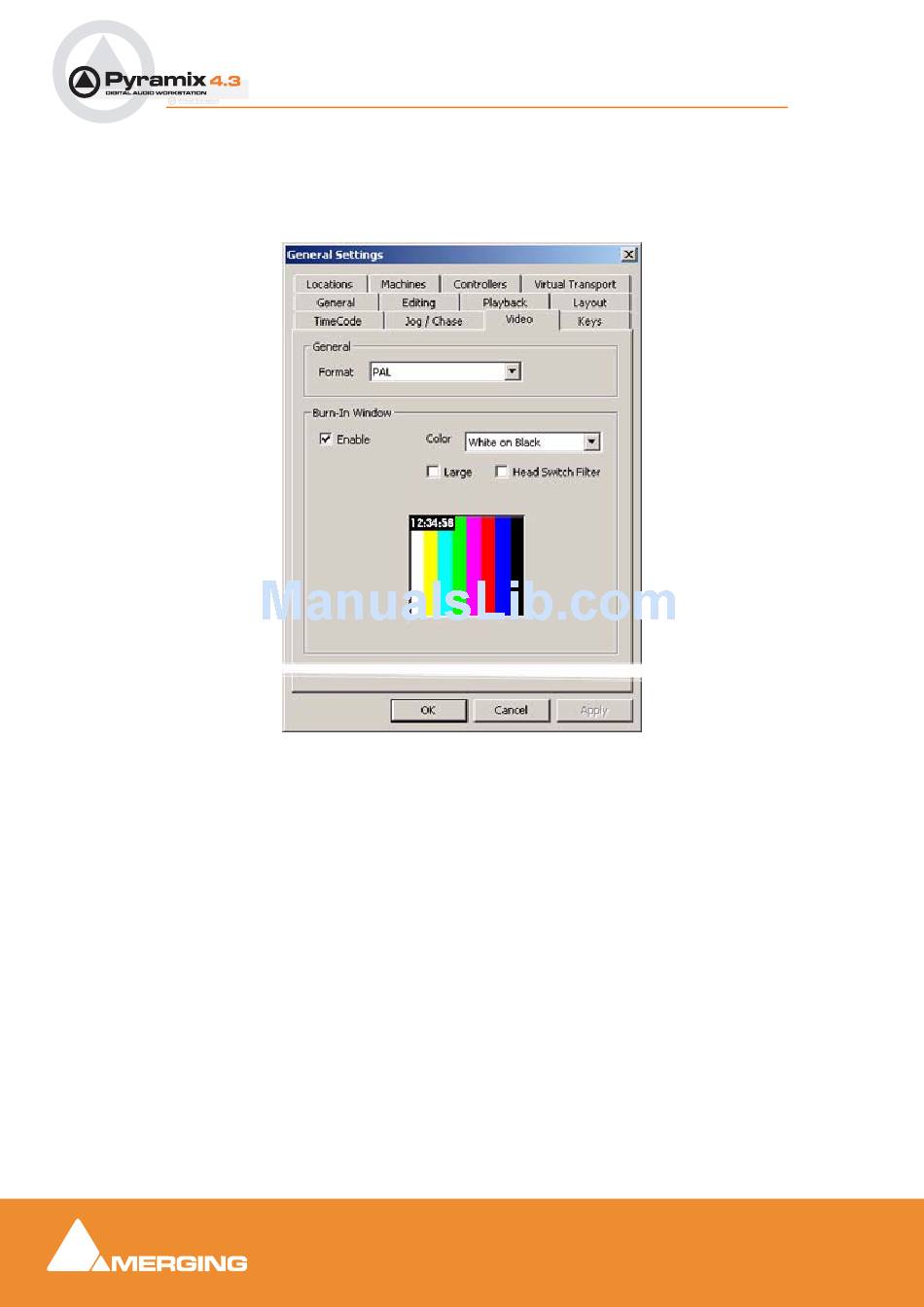

General Settings dialog box - Video Tab page
