User Manual : Beginning a New Project
.

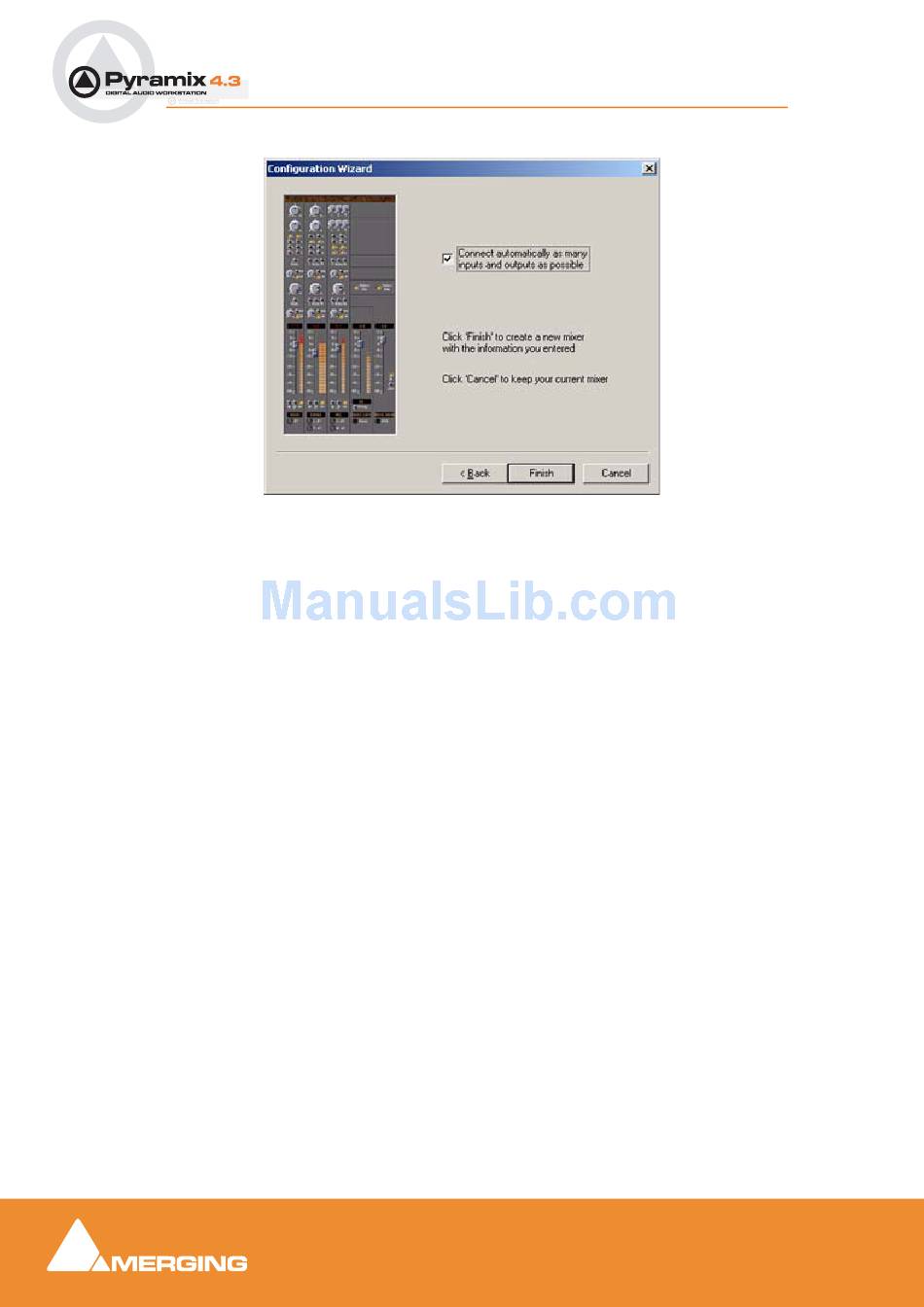

Configuration Wizard auto connect dialog
Checking the Connect automatically as many inputs and outputs as possible check-box
will create the same number and types of Tracks as there are Input Strips and connect as
many as possible to the available physical inputs in ascending order and output Busses to the
physical I/O attached to the Mykerinos board(s) and Track outputs to Mixer Input Strips,
although you can easily reconfigure this later. If the box is not ticked, the tracks will be created
in the same way with Track outputs connected to Mixer strips but no physical Inputs or Outputs
will be connected.
Clicking Cancel opens the new Project with a Blank Mixer Window (See below).
Step 4: Open the New Project
Clicking Finish creates the Mixer and opens the new Project.
The Mixer you configured above will now appear on the screen in a separate Mixer window. It will con-
tain the number and kind of Input Strips and Output Busses defined. It can be moved anywhere on
the screen by clicking and dragging on its top bar, or be minimized or hidden.
It is VERY IMPORTANT to ensure the Mixer's sample rate, synchronization and I/O mode are config-
ured correctly. To check or adjust settings, right-click anywhere on the Mixer window, then choose Set-
tings > General... which will open the Mixer Settings dialog box. (Or choose Settings > Mixer
Settings : General from the main Settings menu.
