Max Level Hold Time
The highest segment reached will remain lit for a specified time after the level decreases, making it
easy to see what the maximum level was. This parameter adjusts the length of time the segment
remains illuminated.
Alignment parameters
The alignment parameters affect the scale of the peak and VU meter. They are accessed by clicking the
Align Tab.

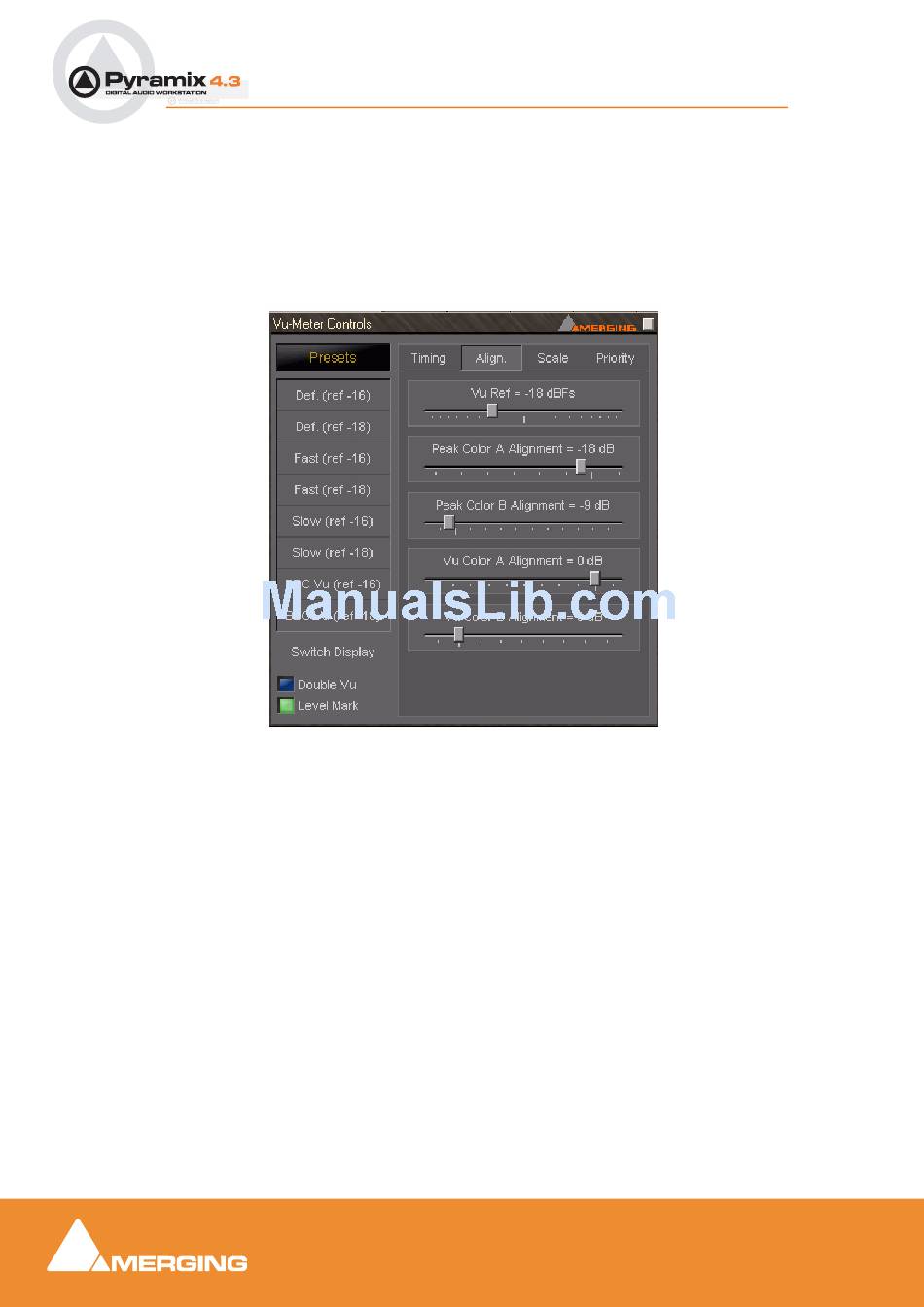

Vu-Meter Controls Align floating Window
VU Ref
This parameter sets the level of the 0 VU point in relation to 0 dBFS (0 dBFS is the value at which the
maximum value of a sample word is reached. Anything above this level means that the signal is
clipped).
If, for example, the VU Reference level is set to -16 dBFS, the VU meter would display 0 dB when the
signal is at -16 dBFS.
Peak Color A/B alignment
The peak meter uses three colors depending on the magnitude of the displayed level. Below the A
point, the color is blue. Between the A and B point, the color is a lighter blue, and above the B point, the
color is red.
These two parameters adjust the level of the A and B points.
VU Color A/B alignment
The VU meter uses three colors depending on the magnitude of the displayed level. Below the A point,
the color is dark orange. Between the A and B point, the color is a lighter orange, and above the B
point, the color is red.
