Save X Fade

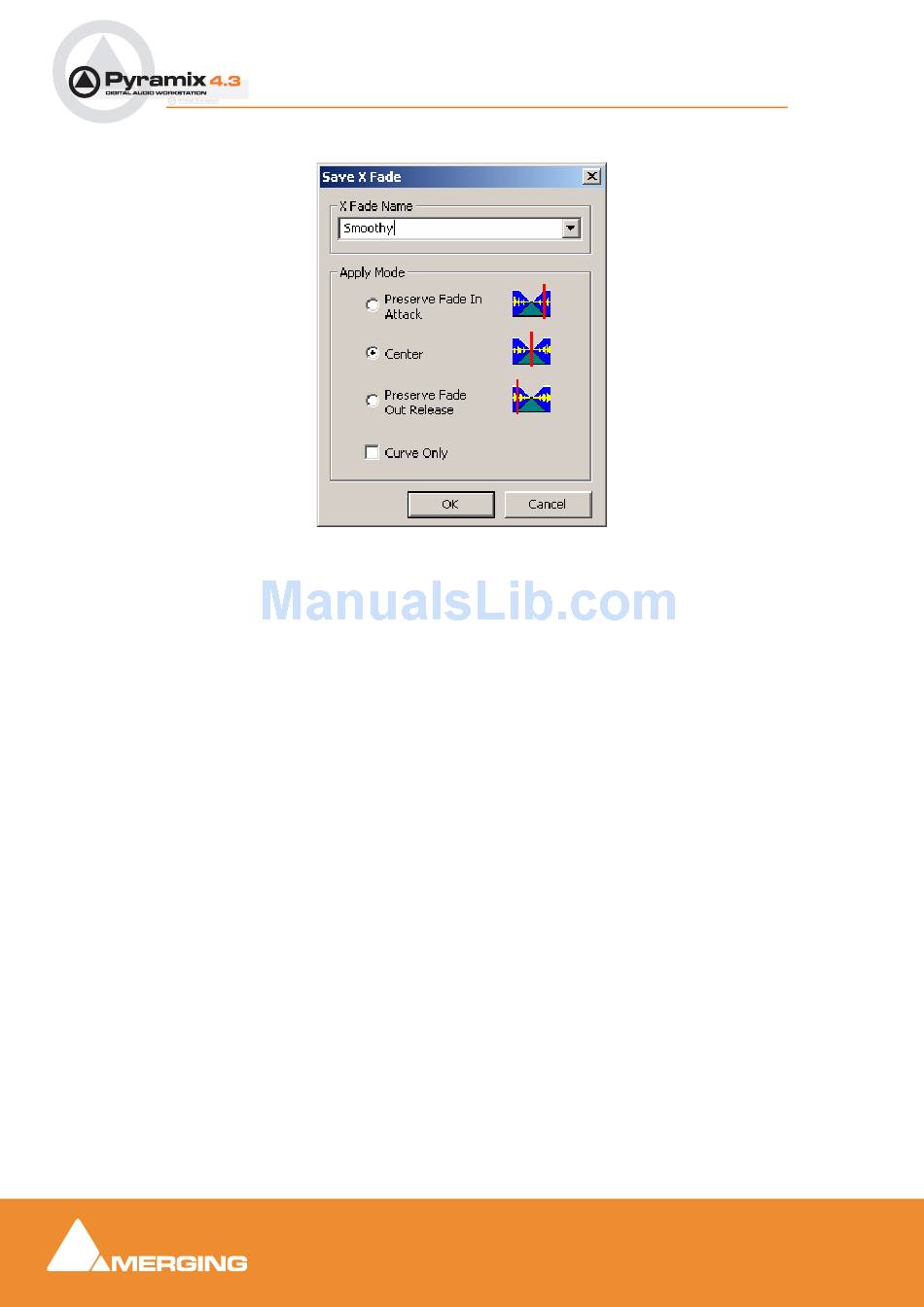

Save X Fade dialog
The dialog box opens with the cursor in the X Fade Name box. Simply type a name for the new preset
or choose an existing one to over-write using the dropdown list. Choose appropriate options and click
OK or hit the Enter key to save the preset.
Apply Mode Options
A number of options are provided which affect the way the Fade will be applied when recalled.
Curve Only
When this box is checked only the curve shape will be recalled and applied to the overlapping tracks for
the duration of the existing cross-fade. If left unchecked, the original duration and positions of the start,
end and reference point will also be applied to the existing cross-fade.
Preserve Fade In Attack
Fade will be aligned to the left, relative to the edge of the clip, when recalled.
Center
Fade will be centered, relative to the edge of the clip, when recalled
Preserve Fade Out Release
Fade will be aligned to the right, relative to the edge of the clip, when recalled.
