Akai Dd / Dr - Merging Pyramix 4.3 User Manual

User Manual : Project Interchange

Akai DD / DR

AKAI disk import
Pyramix is capable of recognizing disks recorded in the Akai DD-Series format and importing their data.
Preparing the system
Connect the Akai disk to your PC. Usually this will be done via a SCSI interface, but can also be a Mag-
neto-Optical or a Jaz disk.
Project > Import opens the Project Interchange dialog box. Choosing AKAI DD/DDR from the list
opens the AKAI DD-Series File System Loader dialog box

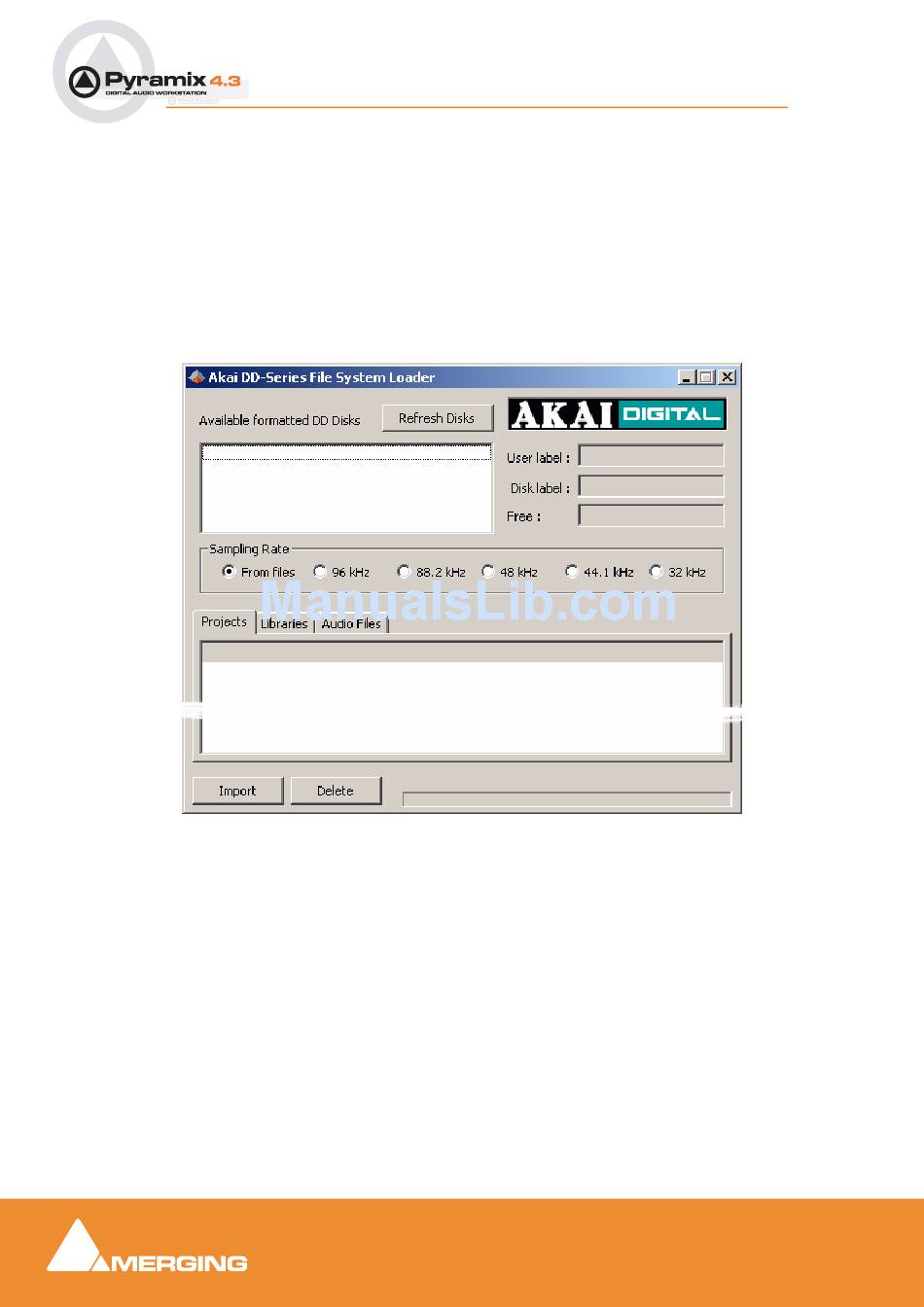

Akai DD-Series File System Loader dialog
When the dialog is opened, Pyramix searches for available Akai disks and displays them in the upper
left part of the dialog box. Choose the disk you want to work with by selecting it with the mouse.
The Refresh Disks button restarts the search for available Akai disks.
The lower part of the dialog box shows the data found on the selected Akai disk. Following the data
structure of Akai disks this panel has three Tabs named Project, Libraries and Audio Files.
Import Button
To import the data into your Pyramix session, simply select the desired data and click the Import button.
The behavior is the same as 'Quick Import'; All the files are imported and stored into a mounted media
folder.When an Akai library is imported, a new Pyramix project library will be created.
Delete Button
Deletes selected files from the Akai media providing this is not write protected.
