User Manual : Getting Audio into Pyramix Virtual Studio
If the Prompt for name after recording box is checked the Record Name dialog appears when the
recording is finished and the transport stopped.

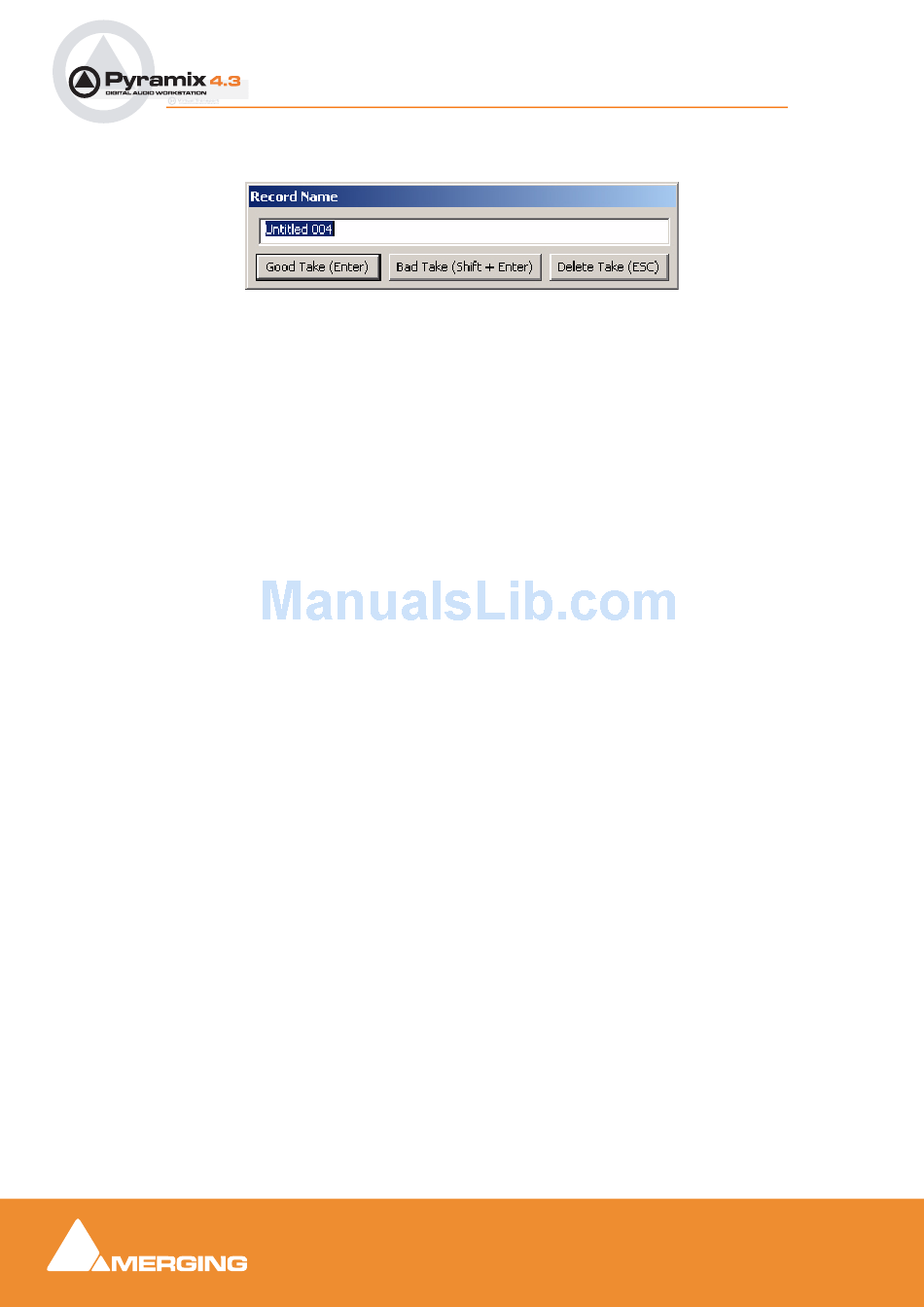

Record Name dialog
Type a name for the recording (or leave the default) then select one of the button options.

AutoPunch Mode

AutoPunch when Chasing TimeCode
If tracks are set to Auto-Punch mode (Alt+Click on Rec Ready button) then the system will start record-
ing (after locking to TC) when it reaches the Mark In point and punch out when it reaches the Mark Out
point.
If the Mark In is located before the current location (and the Mark Out far after) then the system will
immediately record once locked and stop recording when unlocking.
Recording from a tape with Discontinuous TimeCode
Pyramix AutoPunch Mode makes this a simple operation.
Place the Mark In at 00:00:00:00 and Mark Out at 23:59:59:24 (default values for a new project)
Connect LTC Out from the tape machine into Pyramix
Set Chase mode to HARD CHASE
Rewind the tape
Press Play on the tape machine
Each time a valid TC is encountered Pyramix will lock and start recording a new clip, then stop when the
timecode stops or jumps. A separate media will be created for each continuous section of timecode on
the tape.
