Media Management Menus - Merging Pyramix 4.3 User Manual

Media Management Menus

Drive.
Mount Media Drive
Unmount Media Drive
Refresh Media Drive
Open Drive
Show All Drives
Mounting Rules
Properties
Mounting Rules
This dialog allows various rules to be applied when parsing BWF or Wave files in a given folder. Pyra-
mix always tries to group multiple mono files that are part of a single multi-track media when viewed in
the Media Manager so the multiple mono files appear as a single item with multiple tracks numbered in
the form A 1-2 or A 1-8, or A 1-2, 7-8, etc. Otherwise, you would see a separate entry for each mono file
whether or not it is part of a multi-track 'set'. In order to achieve this in the case of BWF files Pyramix
looks at the BWF header and uses the Originator Reference field as a Unique Identifier with some
rules as defined by the EBU organization and some conventions adopted between various manufactur-
ers.
It may happen that some files do not follow these rules and therefore sometimes the Pyramix Media
Manager fails to properly mount these files. Sometimes some files are missing, or some tracks within a
multi-track media are missing. The Pyramix Media Manager detects these conflicts at the time the folder
is mounted and informs the user of such a problem, prompting him to go to the Media Manager > Drive
> Mounting Rules menu item. The Mounting Rules dialog allows a variety of different rules to be
applied for this or these Media Folders so all files are properly mounted.
Folders where a conflict has been detected appear in Red.
Folders where a special Mounting Rule has been applied now appear in Dark Green.
The description of the Rules that can be applied appears in the Mounting Rules dialog

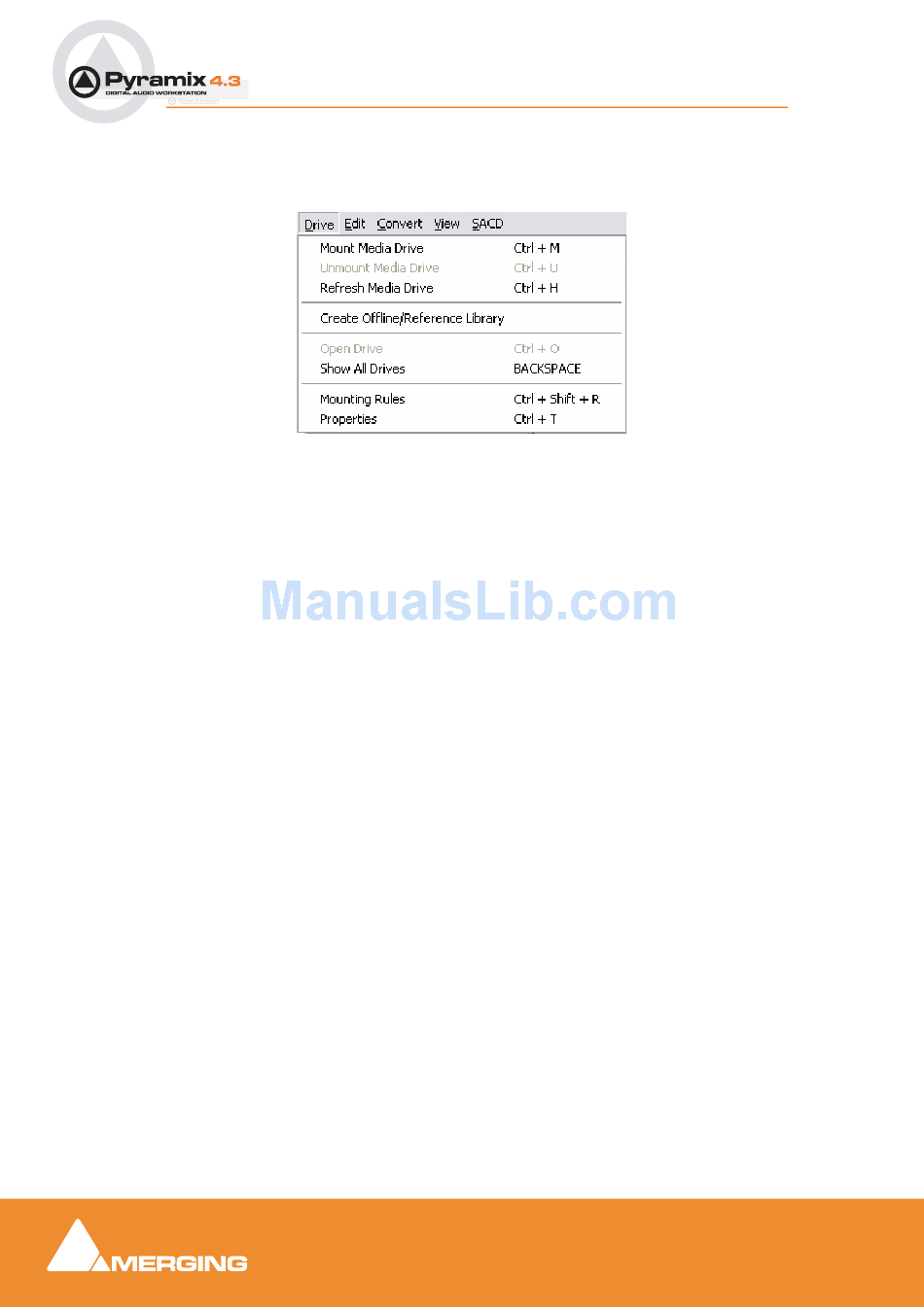

Media Management Drive menu
Make visible to the Pyramix media filing system
Remove from the Pyramix filing system
Refresh works in the same way as Explorer Windows and makes visible files which
have been added since the Media Management Window was opened
Opens the Media Management Library for the selected drive and directory. Double
clicking on the name of the media directory has the same effect
Opens a list of all mounted drives and directories
Opens the Mounting Rules dialog. This allows the user to apply special rules when
attempting to mount files that contain the same 'unique' identifier. (See below)
Opens a Properties window showing the number of currently mounted drives
