Time Code

If you are using the TimeCode input /output features of Pyramix, select the TimeCode Tab to configure
the system. Time code Format, Reference and Source. If an external time code source has been
physically connected to the Pyramix linear time code or video inputs, you should see the current value
in the LTC or VITC Reader registers.

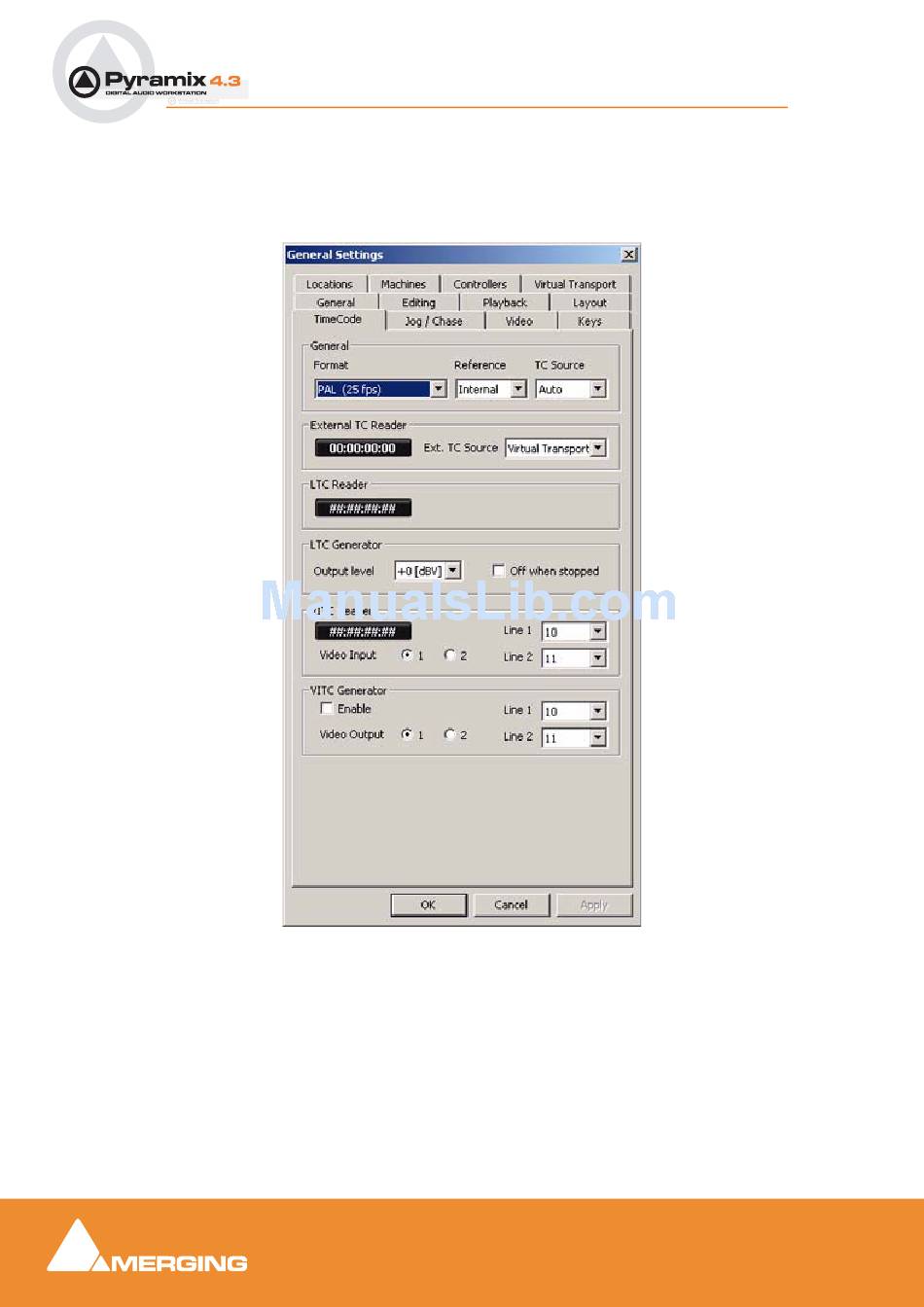

General Settings dialog box - TimeCode Tab page
General
These are the general settings on which all other time code parameters are based.
Format
Shows the current TimeCode format selected from the drop-down list. Pyramix supports the following
formats: Film 23.98 fps, Film 23.98 fps Drop, Film 24 fps, PAL 25 fps, NTSC 29.97 FPS, NTSC 29.97
fps Drop, SMPTE 30 fps, SMPTE 30 fps Drop.
