User Manual : Creating and Configuring Mixers

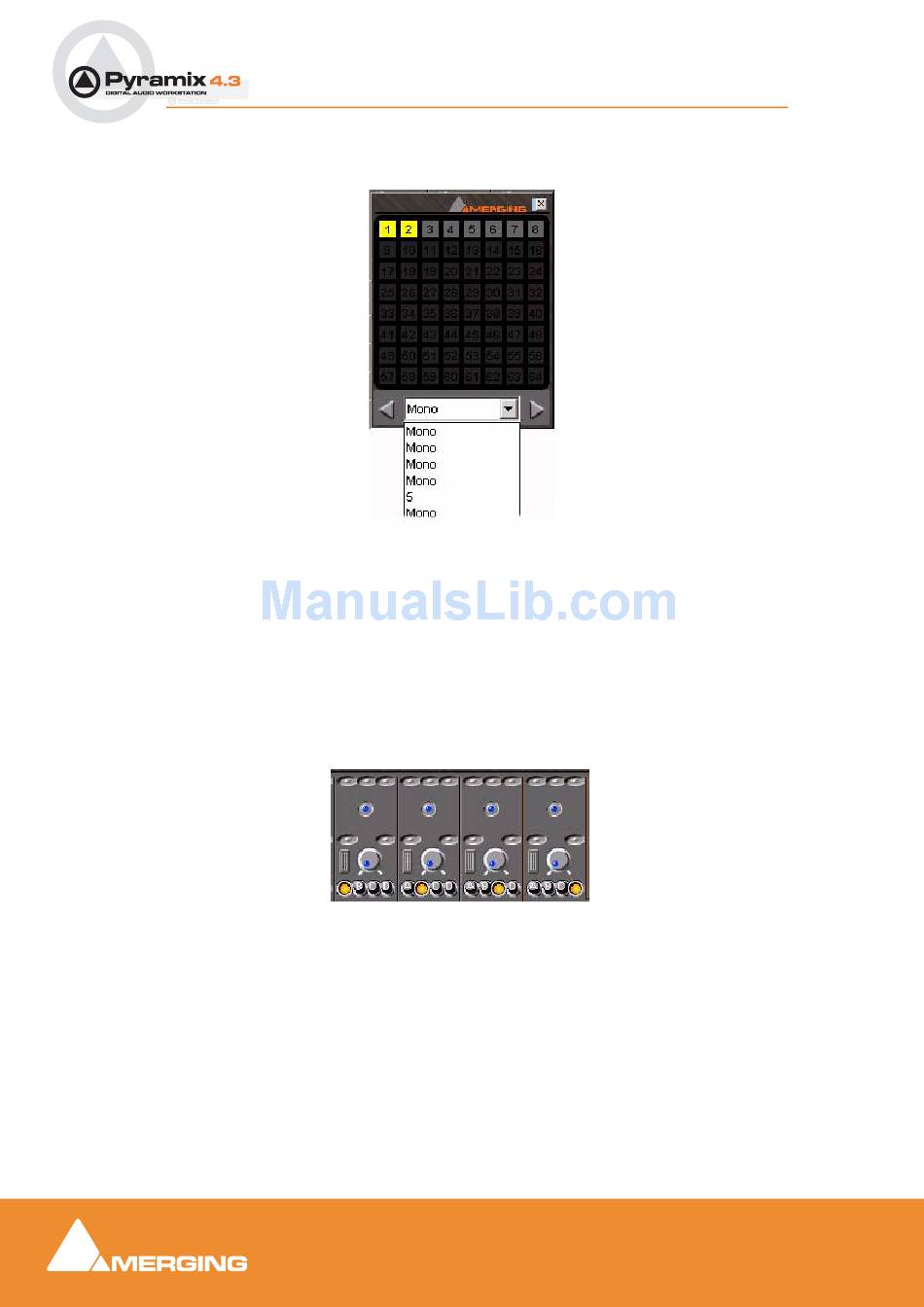

The 8 by 8 matrix gives access to up to 64 output busses. Routing is shown by lit crosspoints.
Double clicking the matrix opens the routing matrix window.
Mix bus routing matrix
Valid choices are shown in gray. Once the window is open, other input channels can be route by either
selecting them from the drop-down list or using the < and > arrows to step across the mixer surface.
Surround
Up to 8 six channel surround busses may be added as a single Multiple Surround Mix output strip.
The principle use of these is for stem mixing where, for example, dialog, background effects, spot
effects, foley and music are recorded as separate six channel recordings but monitored as a complete
mix. Each surround bus is identified by a letter A B C D E F G H. In this illustration, a Multiple Sur-
round Mix strip has been added to the mixer with four surround busses A B C & D.
Multiple Surround Mix Routing buttons on Input strip
The routing buttons on input strips toggle between any one of the Surround Mix busses. Simultaneously
selecting more than one on a strip is not possible.
