Show Versions - Merging Pyramix 4.3 User Manual

Trim
When automation Trim is invoked a dialogue box opens which enables the automation points values in
the currently selected range to be trimmed:
Values can be increase by simply typing the number of dB required or decreased by typing - before the
number in the Trim box. The Fade box allows a value in ms to be entered. This defines the length of
fade which is automatically applied at the beginning and end of the selected range from and to the orig-
inal values.
Note: dB applies to level changes. If the automation curve is displaying frequency, values will be in Hz
and so on.

Show Versions

Opens the Automation Tracks window
Controls
The Controls pane displays all the automatable controls in a tree structure. The last control write is
automatically selected. The Automation Tracks Versions pane shows all the automation passes for
User Manual : Automation

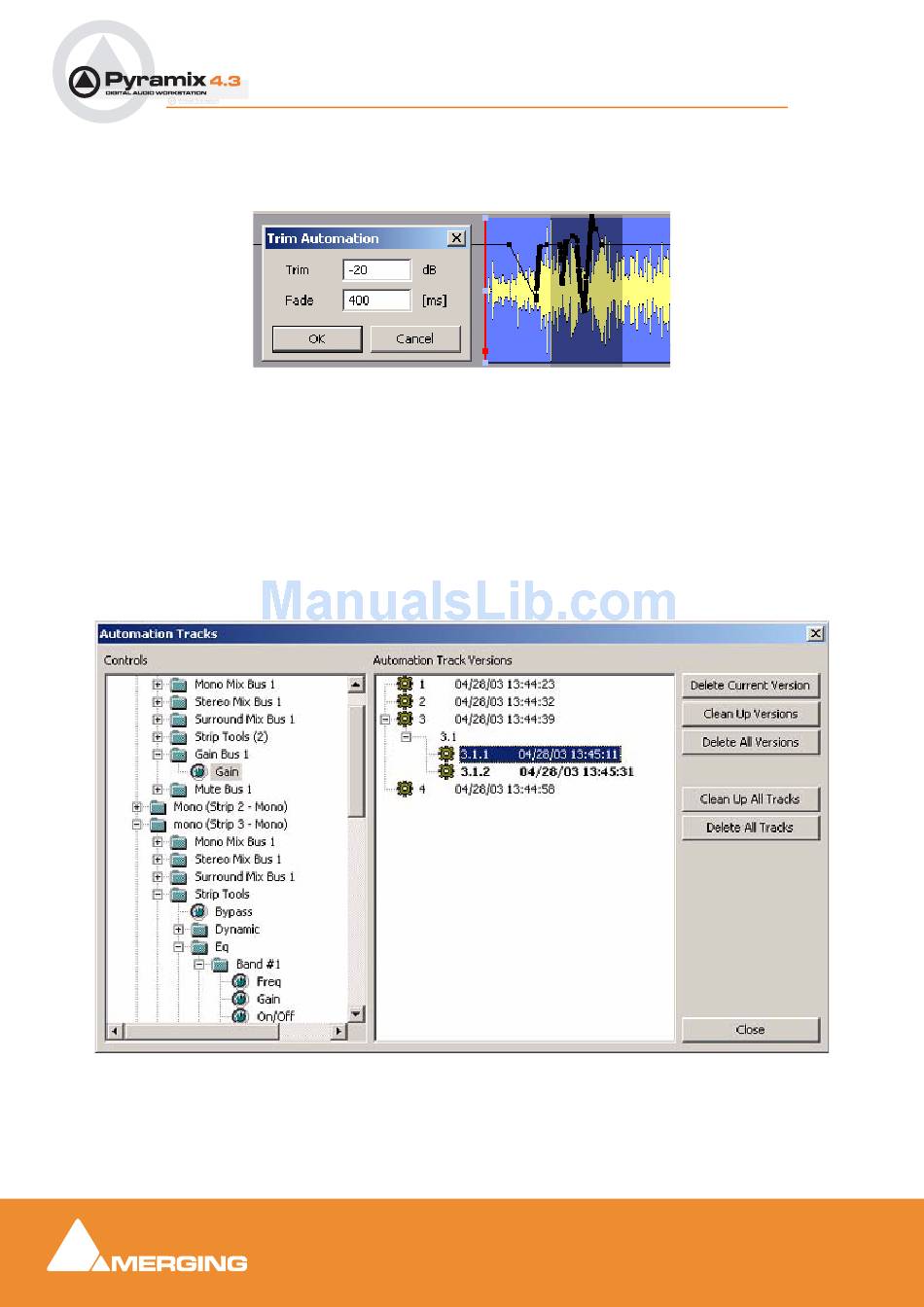

Trim Automation dialog
Automation Tracks Window
User Manual
197
