SIP User's Manual
Parameter
Web: RTCP XR Collection Server
EMS: Esc IP
[RTCPXREscIP]
Web: RTCP XR Report Mode
EMS: Report Mode
[RTCPXRReportMode]

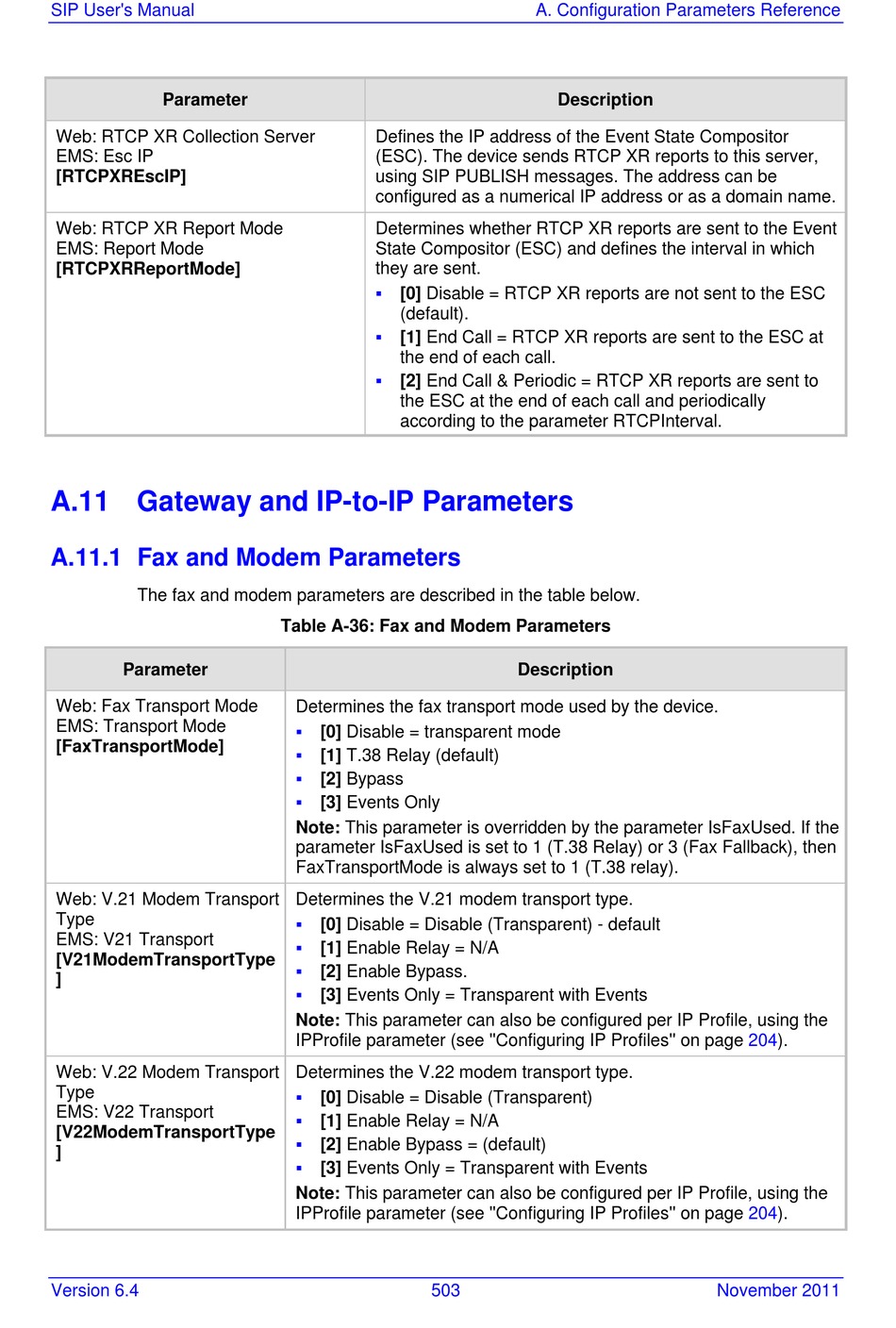

A.11 Gateway and IP-to-IP Parameters
A.11.1 Fax and Modem Parameters
The fax and modem parameters are described in the table below.
Parameter
Web: Fax Transport Mode
EMS: Transport Mode
[FaxTransportMode]
Web: V.21 Modem Transport
Type
EMS: V21 Transport
[V21ModemTransportType
]
Web: V.22 Modem Transport
Type
EMS: V22 Transport
[V22ModemTransportType
]
Version 6.4
Defines the IP address of the Event State Compositor
(ESC). The device sends RTCP XR reports to this server,
using SIP PUBLISH messages. The address can be
configured as a numerical IP address or as a domain name.
Determines whether RTCP XR reports are sent to the Event
State Compositor (ESC) and defines the interval in which
they are sent.

[0] Disable = RTCP XR reports are not sent to the ESC
(default).

[1] End Call = RTCP XR reports are sent to the ESC at
the end of each call.

[2] End Call & Periodic = RTCP XR reports are sent to
the ESC at the end of each call and periodically
according to the parameter RTCPInterval.
Table A-36: Fax and Modem Parameters
Determines the fax transport mode used by the device.

[0] Disable = transparent mode

[1] T.38 Relay (default)

[2] Bypass

[3] Events Only
Note: This parameter is overridden by the parameter IsFaxUsed. If the
parameter IsFaxUsed is set to 1 (T.38 Relay) or 3 (Fax Fallback), then
FaxTransportMode is always set to 1 (T.38 relay).
Determines the V.21 modem transport type.

[0] Disable = Disable (Transparent) - default

[1] Enable Relay = N/A

[2] Enable Bypass.

[3] Events Only = Transparent with Events
Note: This parameter can also be configured per IP Profile, using the
IPProfile parameter (see ''Configuring IP Profiles'' on page 204).
Determines the V.22 modem transport type.

[0] Disable = Disable (Transparent)

[1] Enable Relay = N/A

[2] Enable Bypass = (default)

[3] Events Only = Transparent with Events
Note: This parameter can also be configured per IP Profile, using the
IPProfile parameter (see ''Configuring IP Profiles'' on page 204).
503
A. Configuration Parameters Reference
Description
Description
