Note:
Parameter
Matching Characteristics
Source Username Prefix
[IP2IPRouting_SrcUsernamePrefix]
Source Host
[IP2IPRouting_SrcHost]
Destination Username Prefix
[IP2IPRouting_DestUsernamePrefix]
Destination Host
[IP2IPRouting_DestHost]
RequestType
[IP2IPRouting_RequestType]
Operation Routing Rule (performed when match found in above characteristics)
Destination Type
[IP2IPRouting_DestType]
SIP User's Manual
The following parameters are not applicable to SAS and should be ignored:
Destination IP Group ID, and Alternative Route Options.

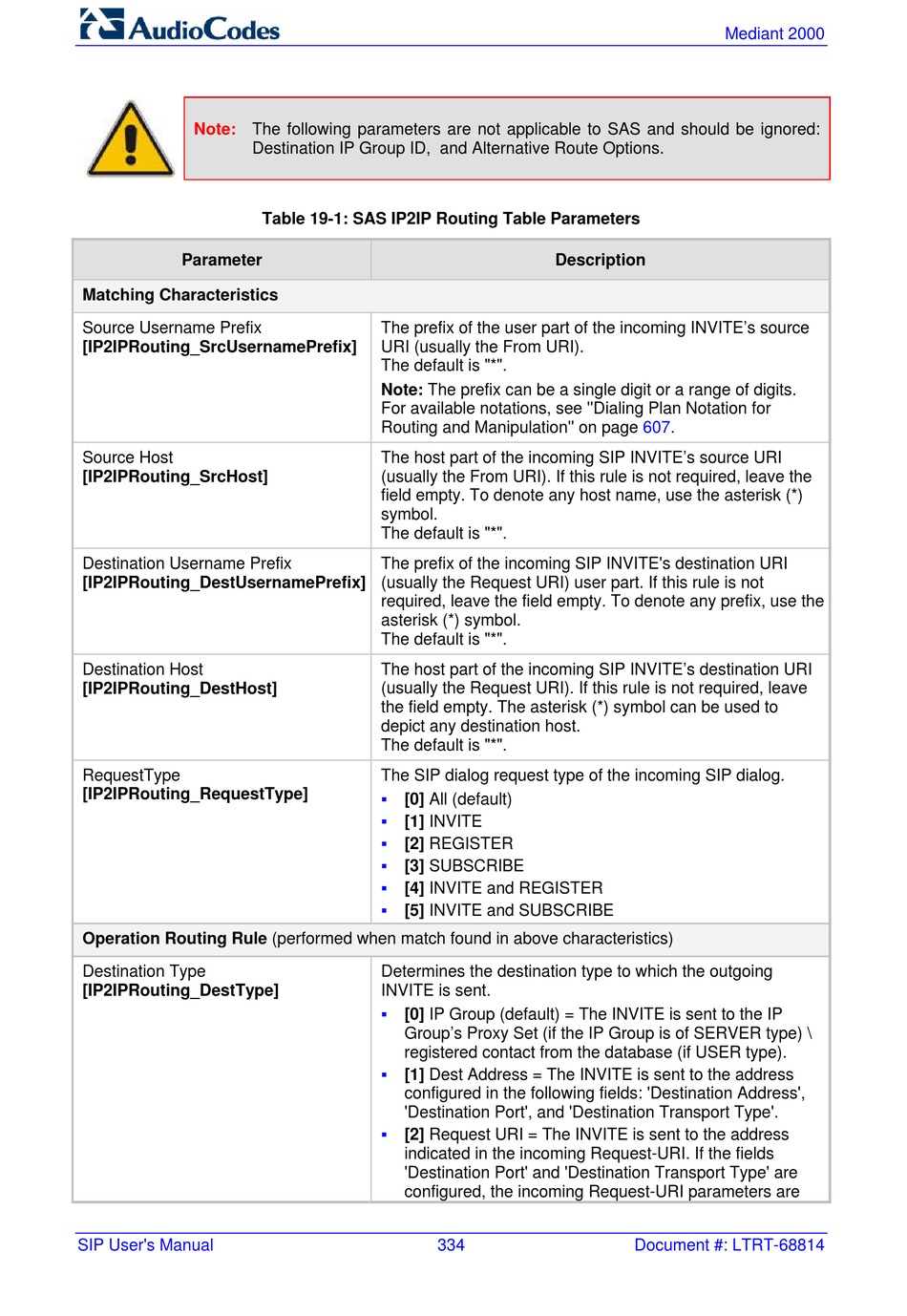

Table 19-1: SAS IP2IP Routing Table Parameters
The prefix of the user part of the incoming INVITE's source
URI (usually the From URI).
The default is "*".
Note: The prefix can be a single digit or a range of digits.
For available notations, see ''Dialing Plan Notation for
Routing and Manipulation'' on page 607.
The host part of the incoming SIP INVITE's source URI
(usually the From URI). If this rule is not required, leave the
field empty. To denote any host name, use the asterisk (*)
symbol.
The default is "*".
The prefix of the incoming SIP INVITE's destination URI
(usually the Request URI) user part. If this rule is not
required, leave the field empty. To denote any prefix, use the
asterisk (*) symbol.
The default is "*".
The host part of the incoming SIP INVITE's destination URI
(usually the Request URI). If this rule is not required, leave
the field empty. The asterisk (*) symbol can be used to
depict any destination host.
The default is "*".
The SIP dialog request type of the incoming SIP dialog.

[0] All (default)

[1] INVITE

[2] REGISTER

[3] SUBSCRIBE

[4] INVITE and REGISTER

[5] INVITE and SUBSCRIBE
Determines the destination type to which the outgoing
INVITE is sent.

[0] IP Group (default) = The INVITE is sent to the IP
Group's Proxy Set (if the IP Group is of SERVER type) \
registered contact from the database (if USER type).

[1] Dest Address = The INVITE is sent to the address
configured in the following fields: 'Destination Address',
'Destination Port', and 'Destination Transport Type'.

[2] Request URI = The INVITE is sent to the address
indicated in the incoming Request-URI. If the fields
'Destination Port' and 'Destination Transport Type' are
configured, the incoming Request-URI parameters are
Description
